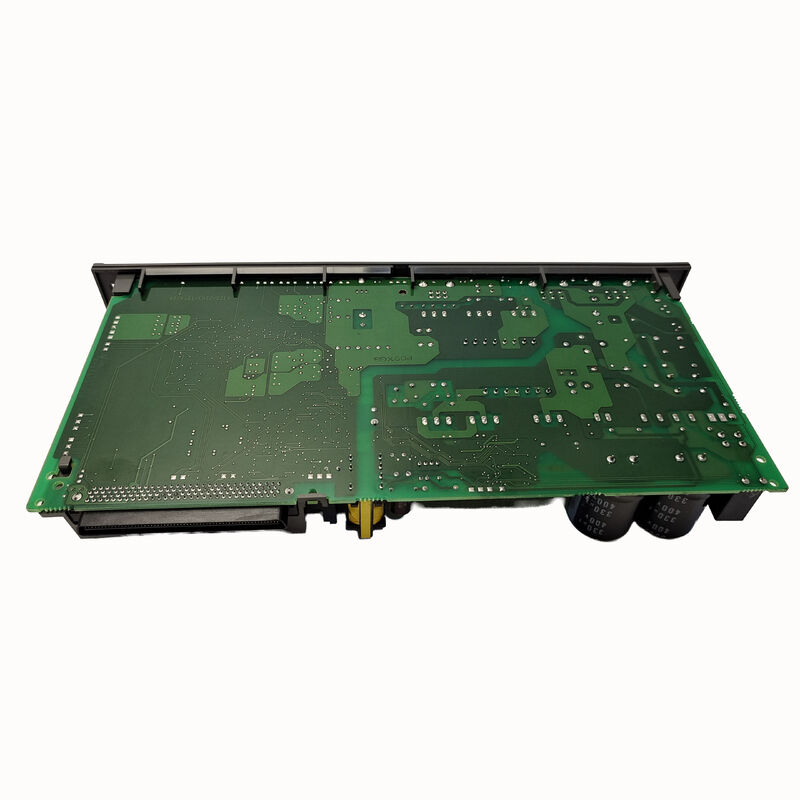

A16B-2203-0651 | FANUC αi SPM-5.5i Spindle Module Wiring Board — A06B-6111-H006 / 5.5kW / Control PCB A20B-2100-0800

SPM-5.5i — The Most Common Small-Machine Spindle Rating

Within the αi SPM A06B-6111 series, the SPM-5.5i (A06B-6111-H006) at 5.5kW occupies a position used across a wide range of compact and mid-size CNC machine tools. 5.5kW is sufficient for:

Small CNC machining centres: Vertical machining centres with 40-taper spindles running aluminium, light alloy, and plastic machining at moderate depths of cut. The 5.5kW spindle supports full-speed operation in these materials.

CNC turning centres: High-speed turning in steel and aluminium — the 5.5kW output supports aggressive turning in these materials without the thermal and power management complexity of higher-power spindle drives.

Compact 5-axis machines: Small 5-axis machines for complex part shapes where the spindle rarely pushes to its thermal limit and 5.5kW provides adequate headroom.

The A16B-2203-0651 serves this common SPM variant — making it one of the more frequently needed wiring board spares in the αi SPM family.

Key Specifications

One Control PCB Across Multiple SPM Ratings — Key Service Benefit

The entire A16B-2203-065x wiring board family shares the same control PCB (A20B-2100-0800). This architecture provides a practical service advantage:

For a production facility running machines with different spindle sizes (some 2.2kW, some 5.5kW, some 11kW), only one control PCB model covers all. Wiring boards differ by rating (0650 for 2.2kW, 0651 for 5.5kW), but the control board is identical.

When diagnosing a spindle amplifier fault:

• If the fault is in the wiring board: Order the rating-specific wiring board (A16B-2203-0651 for SPM-5.5i)
• If the fault is in the control board: Order one A20B-2100-0800 — it serves all SPM ratings in the 065x/062x range

This modular design minimises the spare board inventory needed to cover multiple SPM power ratings.

Application Scenarios

SPM-5.5i spindle fault on CNC machining centre: A FANUC αi SPM-5.5i spindle amplifier develops a connector-related fault — the spindle motor cable connection at the module's wiring board terminal shows intermittent resistance. The A16B-2203-0651 is replaced, resolving the connection fault.

Spindle drive commissioning in new machine build: A machine builder installing a new CNC machining centre requires a replacement A16B-2203-0651 for an SPM-5.5i module damaged during installation handling.

FAQ

Q1: What is the difference between A16B-2203-0651 (standard 200V) and A16B-2203-0820 (HV version) for the 5.5kW spindle?

The A16B-2203-0820 is the wiring board for the SPM-5.5HVi (A06B-6121-H006) — the 400–480VAC high voltage version of the 5.5kW spindle module. The A16B-2203-0651 is for the standard 200VAC version (A06B-6111-H006). These two serve the same spindle power level but different input voltages — they are not interchangeable.

Q2: Does replacing A16B-2203-0651 require spindle parameter changes?

No. Spindle parameters are stored in the CNC main memory. After fitting the replacement A16B-2203-0651 and restoring the module to service, the CNC reloads its serial spindle communication and applies the existing spindle parameters automatically.

Q3: What spindle motors does the SPM-5.5i drive?

The SPM-5.5i drives FANUC αi series spindle motors rated in the 5.5kW class — motors such as αiS 6/4000, αiS 8/4000, or equivalent rated αi spindle motors. These motors power the spindles on compact CNC machining centres and turning centres.

Q4: How does the wiring board connect to the control PCB inside the SPM-5.5i?

The A16B-2203-0651 wiring board and the A20B-2100-0800 control PCB connect internally via board-to-board connectors within the module housing. The control PCB mounts on or adjacent to the wiring board, with the internal connectors transferring gate drive signals from the control board to the power devices on the wiring board, and current sensor feedback from the wiring board back to the control board.
