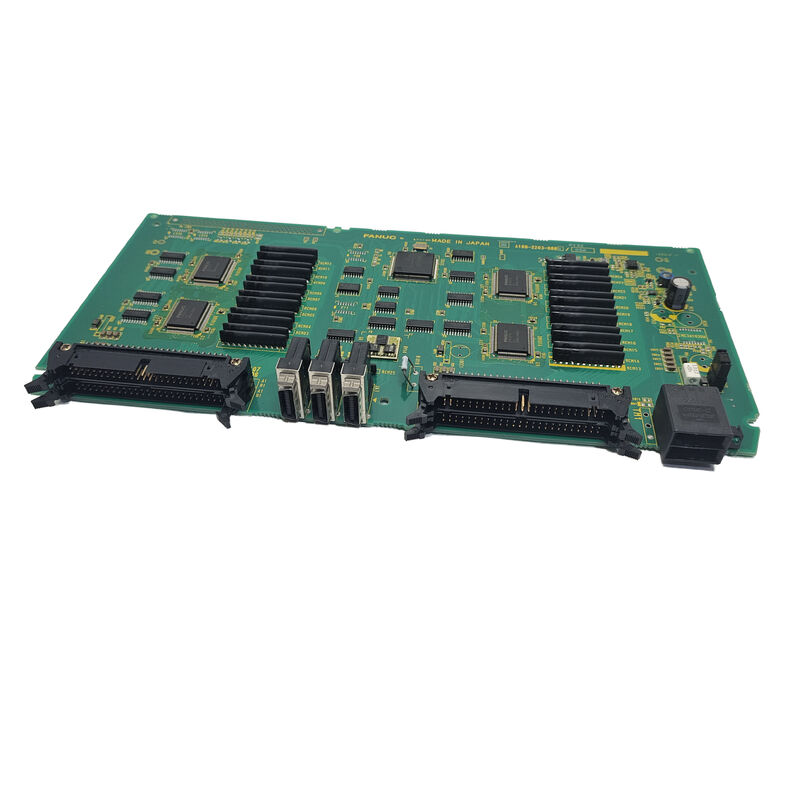

Used FANUC Board A16B-2203-0754 A16B22030754 A16B-22O3-O754

A16B-2203-0754 | FANUC Series 16i-B Sub CPU Board — F16i-B CNC Axis Expansion / "New" Updated Design / A16B-2203 Series

Series 16i-B — The i-Generation Flagship Platform

The FANUC Series 16i is the i-generation successor to the Series 16, positioning FANUC's most capable CNC platform at the peak of the i-series product line. The "B" model designation identifies the second hardware generation of this platform — an update from the 16i-A with refined architecture, expanded capability, and improved servo and spindle performance.

The Series 16i-B serves the most demanding machine tool applications: large multi-axis machining centres with 5-axis simultaneous contouring, multi-turret turning centres, complex compound machines combining turning and milling, and flexible manufacturing cells requiring the highest axis count and programme complexity.

Key Product Information

Sub CPU — Dedicated Axis Processing

The Series 16i-B's sub CPU board extends the CNC's axis processing capability beyond what the main CPU board alone provides. This is not a simple expansion — it is a dedicated processing architecture for additional axes.

Main CPU: Handles all standard CNC functions — programme execution, interpolation, servo coordination, PMC ladder, display, and communication. For a machine within the base axis count, this is sufficient.

Sub CPU (A16B-2203-0754): Takes ownership of additional servo axis computation, running the interpolation and servo coordination for extended axes. The sub CPU offloads this work from the main CPU, ensuring that adding more axes does not degrade the processing performance available to the axes already handled by the main CPU.

The result: even fully-configured high-axis-count Series 16i-B machines maintain consistent servo loop rates and interpolation performance across all axes, because the processing load is distributed between the main CPU and the sub CPU.

Application Scenarios

Series 16i-B high-axis machining centre sub CPU failure: A 5-axis machining centre with FANUC Series 16i-B control develops alarms specifically on the sub CPU-controlled axes. Primary axes handled by the main CPU remain operational. The A16B-2203-0754 is identified as the fault. Replacement restores the extended-axis servo function.

CNC control system refurbishment: A Series 16i-B machining centre undergoes a control system overhaul. The A16B-2203-0754 sub CPU board is replaced alongside the main CPU board to comprehensively reset the CNC's processing hardware.

FAQ

Q1: How many additional axes does the A16B-2203-0754 sub CPU support in the 16i-B system?

The additional axis capacity provided by the sub CPU board in the Series 16i-B depends on the specific system configuration. The base Series 16i-B supports a defined number of axes on the main CPU; the sub CPU extends this by a defined number of further axes.

Q2: Is the A16B-2203-0754 compatible with Series 16i-A systems, or is it specific to 16i-B?

The product description specifically identifies this as "SUB CPU BOARD 16I-B CONTROL" — the 16i-B designation indicates hardware matched to the B-model platform. Fitting an A model board in a B model system (or vice versa) risks hardware incompatibility at the bus and connector level. Always confirm the exact CNC model generation from the machine nameplate before ordering.

Q3: Does replacing A16B-2203-0754 affect CNC parameters or programmes?

No. CNC parameters, part programmes, tool data, and PMC ladder logic reside in SRAM and FROM modules — separate from the sub CPU board. Replacing the A16B-2203-0754 does not affect any stored data. After fitting the replacement, the sub CPU re-establishes its communication with the main CPU and the system initialises normally.

Q4: Can the Series 16i-B CNC operate without the A16B-2203-0754 if it fails?

If the sub CPU board fails, only the axes it controls become unavailable — alarms appear on the sub CPU axes while the main CPU axes may continue to function. Whether the machine can operate in a reduced-axis mode depends on the machine configuration and whether the operational axes alone can execute useful work. For most machines, loss of any controlled axis halts production.

Q5: What distinguishes the 16i-B sub CPU board from the older Series 16 (Model B) sub CPU?

The Series 16 Model B (pre-i generation) used a different sub CPU board family — the A16B-2203-0033 class boards for Series 18 Model B, for example. The 16i-B (i-generation) uses a completely different hardware platform with updated processor and memory architecture. The A16B-2203-0754 "New" sub CPU board is specific to the 16i-B generation and cannot substitute for earlier Model B sub CPU boards.
