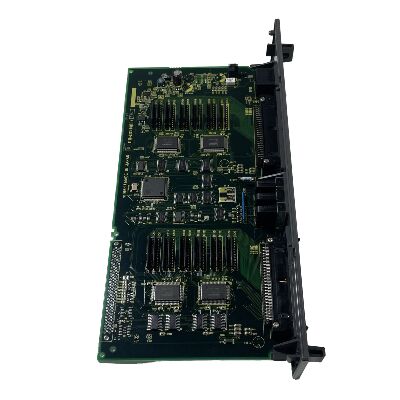

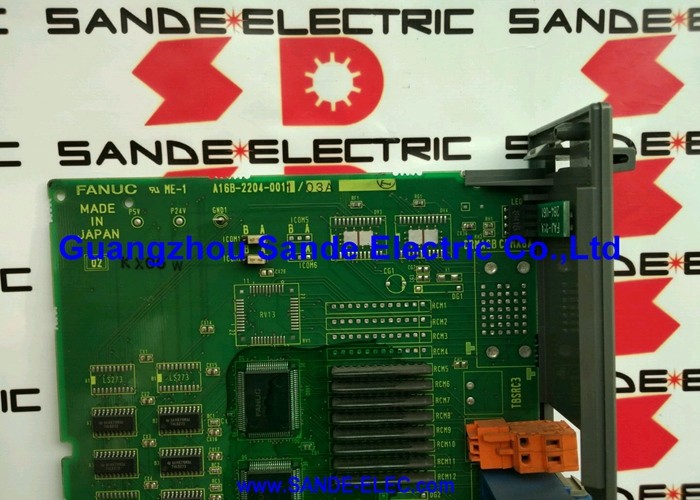

FANUC I/O Board Unused A16B-2203-0820 A16B22030820 A16B-22O3-O82O

A16B-2203-0820 | FANUC Alpha-i SPM-5.5HVi Wiring Board — A06B-6121-H006 / A06B-6122-H006 / 400–480VAC HV / 5.5kW Spindle Module

Alpha-i SPM HV — High-Voltage Spindle for 400V Regions

FANUC's Alpha-i SPM (Spindle Power Module) product range covers two input voltage standards:

Standard voltage (200V series: A06B-6111, A06B-6116, A06B-6128): For machines installed in regions with 200–240V three-phase supply — Japan, parts of North America, and other 200V regions.

High Voltage (HV) series (A06B-6121, A06B-6122): For machines installed in regions with 380–480V three-phase supply — Europe, most of Asia, and other 400V regions.

The A06B-6121 and A06B-6122 are the Type A and Type B variants of the Alpha-i SPM HV series. The A16B-2203-0820 is the wiring board for the smallest HV spindle module in this range: the SPM-5.5HVi — a 5.5kW spindle amplifier running directly from 400–480VAC mains input.

Key Specifications

Type A vs Type B — Two SPM-5.5HVi Variants, One Wiring Board

Both the A06B-6121-H006 (Type A) and A06B-6122-H006 (Type B) SPM-5.5HVi modules use the same wiring board A16B-2203-0820. The difference between Type A and Type B is in the control PCB:

• Type A (A06B-6121-H006): Uses control PCB A20B-2100-0800
• Type B (A06B-6122-H006): Uses control PCB A20B-2100-0801

The wiring board provides the common high-current hardware shared between both types. This means a single A16B-2203-0820 can serve either type — the type is determined by which control PCB is fitted alongside it.

Application Scenarios

Alpha-i HV spindle module repair: A European CNC machine (400V supply) has an A06B-6121-H006 SPM-5.5HVi spindle module. A wiring board fault is diagnosed — motor output connectors show damage. The A16B-2203-0820 is required for the repair.

SPM module board-level refurbishment: A specialist CNC repair facility rebuilds A06B-6121-H006 and A06B-6122-H006 SPM units. The A16B-2203-0820 is stocked as the common wiring board for both Type A and Type B variant rebuilds.

FAQ

Q1: Can A16B-2203-0820 be used with both A06B-6121-H006 (Type A) and A06B-6122-H006 (Type B)?

Yes. The FANUC αis series maintenance manual (B-65285EN/03) confirms A16B-2203-0820 as the wiring board for both SPM-5.5HVi Type A (A06B-6121-H006) and Type B (A06B-6122-H006). The control PCBs differ (A20B-2100-0800 for Type A, A20B-2100-0801 for Type B), but the wiring board is common.

Q2: Is the SPM-5.5HVi suitable for 200V input regions?

No. The SPM-5.5HVi (A06B-6121-H006 / A06B-6122-H006) is specifically rated for 400–480VAC three-phase input — the high voltage (HV) class. For 200–240VAC regions, the standard-voltage SPM-5.5i series (different A06B order numbers with different wiring boards) is the appropriate specification. Never connect an HV spindle module to a 200V supply.

Q3: What spindle motor ratings is the SPM-5.5HVi (A16B-2203-0820 module) compatible with?

The SPM-5.5HVi is rated for 5.5kW spindle motor output. It is compatible with FANUC Alpha-i class spindle motors rated at or below 5.5kW output — typically motors in the αiIP 2.2 through αiIP 5.5 range. Higher-power spindle motors require larger SPM modules (SPM-11HVi, SPM-15HVi, etc.) with their own respective wiring boards.

Q4: What is the discharge requirement before accessing A16B-2203-0820 inside the SPM-5.5HVi?

The SPM-5.5HVi module contains DC bus capacitors charged to approximately 540–650VDC from the 400–480VAC input. After mains power removal, the discharge time follows the FANUC maintenance manual specification for the applicable SPM HV model. Verify that bus voltage is below 50VDC with a calibrated meter before accessing internal boards. The higher bus voltage of HV modules (vs 200V modules) stores more energy — discharge precautions are correspondingly more important.

Q5: Does A16B-2203-0820 need to be matched to the same production batch as the control PCB?

No specific batch matching is required. The A16B-2203-0820 wiring board and its companion control PCB (A20B-2100-0800 or A20B-2100-0801) are designed to be assembled together from any production batch. Standard FANUC parts compatibility applies: the specific revision suffix of each board (e.g., /02A, /05B) may be noted for reference, but later revisions are backward compatible with earlier ones in the same functional role.
