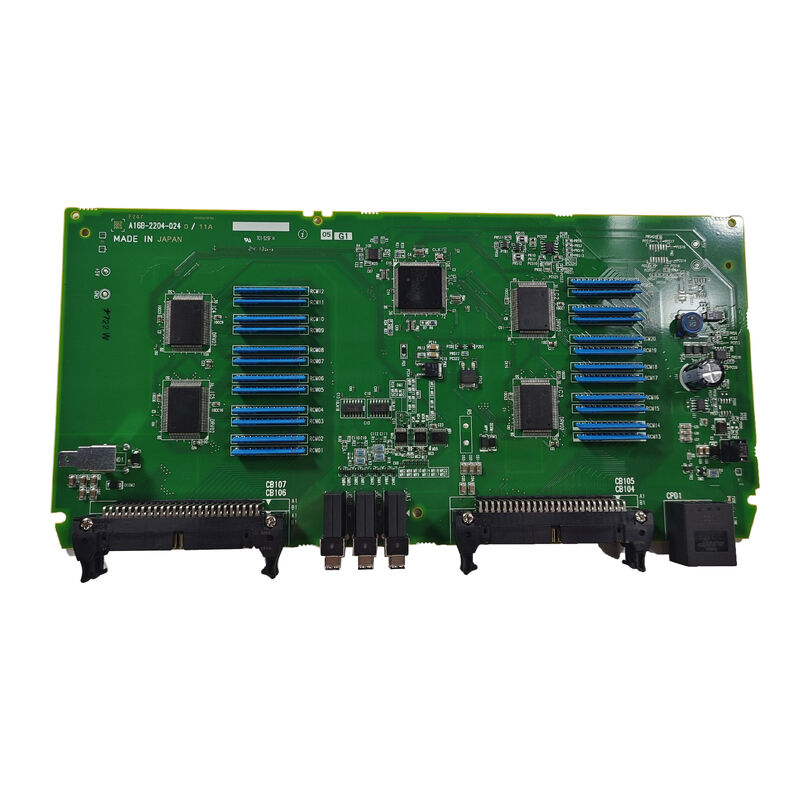

A16B-2204-0240 | FANUC I/O PCB — A02B-0319-C001 / Input/Output Interface / 0i-D CNC Systems / A16B-2204 Series

A02B-0319-C001 — The I/O Unit and Its Internal PCB

The A02B-0319-C001 is the complete I/O unit — a housed assembly that provides the digital input and output interface between the FANUC CNC and the machine tool's field devices. The A16B-2204-0240 is the active PCB inside this unit.

The A02B-0319 prefix identifies this I/O unit as belonging to the Series 0i-D generation of FANUC CNC hardware. The -C001 suffix designates the specific variant within the 0i-D I/O unit family.

Within the A02B-0319-C001 unit:

• Field wiring from machine sensors, switches, and actuators terminates at the unit's terminal blocks
• The A16B-2204-0240 PCB receives input signals from these terminal blocks and writes output commands to them
• I/O data flows between the A16B-2204-0240 and the 0i-D CNC's PMC over the I/O Link serial bus

Key Product Information

I/O Board Role in 0i-D CNC Systems

The FANUC Series 0i-D (0i Model D) is a well-established CNC platform for general-purpose machine tools. Its I/O architecture uses the I/O Link bus to connect the CNC's PMC to external I/O units like the A02B-0319-C001. Each I/O unit connects to the I/O Link as a slave node, reporting input states and accepting output commands from the PMC master in the CNC.

The A16B-2204-0240's role in this architecture:

Input scanning: Every PMC scan cycle, the A16B-2204-0240 reads all input terminal states and forwards them to the CNC via I/O Link. Switches, sensors, and encoder signals connected to the unit's input terminals all reach the PMC through this board.

Output driving: Every PMC scan cycle, the CNC writes output commands via I/O Link to the A16B-2204-0240, which drives the output terminals accordingly — activating relay coils, solenoids, indicator lamps, and other actuators connected to the unit.

When the A16B-2204-0240 fails, the entire I/O unit stops responding — PMC alarms fire and all machine functions controlled by this I/O unit halt.

Application Scenarios

0i-D I/O unit PCB fault: A FANUC 0i-D CNC machining centre develops I/O Link alarms specific to the A02B-0319-C001 unit's address. Field wiring tests confirm all external signals are correct at the terminal blocks. The A16B-2204-0240 PCB is identified as the fault. Replacement restores full I/O function.

I/O unit overhaul: A 0i-D CNC system undergoes a comprehensive maintenance overhaul. The A16B-2204-0240 is replaced as part of a systematic board renewal for the I/O unit.

FAQ

Q1: What distinguishes the A02B-0319-C001 (0i-D unit) from the A02B-0309-C001 (0i-C unit)?

The A02B-0319 prefix identifies 0i-D generation hardware; A02B-0309 identifies 0i-C generation. The A16B-2204-0240 is specified for A02B-0319-C001 (0i-D). The A16B-2203-0881, by comparison, serves A02B-0309-C001 (for 0i-C/Series 16-C systems). These are different hardware generations and the boards are not interchangeable.

Q2: Does replacing A16B-2204-0240 require PMC parameter or programme changes?

No. The PMC programme addresses I/O by I/O Link address — not by board identity. Replacing the A16B-2204-0240 with an identically configured board at the same I/O Link address restores full I/O communication without any PMC changes.

Q3: How many DI and DO points does the A16B-2204-0240 provide?

The DI/DO count of the A16B-2204-0240 is defined by the I/O unit design for the A02B-0319-C001. Confirm the exact I/O count from the FANUC 0i-D hardware connection manual or the A02B-0319-C001 specifications. The DI/DO complement varies between different I/O unit variants within the 0i-D family.

Q4: What I/O Link node address is assigned to the A02B-0319-C001 unit?

The I/O Link address is configured during the CNC installation and documented in the machine's electrical specifications. After fitting a replacement A16B-2204-0240, the I/O Link node address assignment must match the original board's address to ensure the PMC continues addressing this unit's I/O at the same addresses it has always used.
