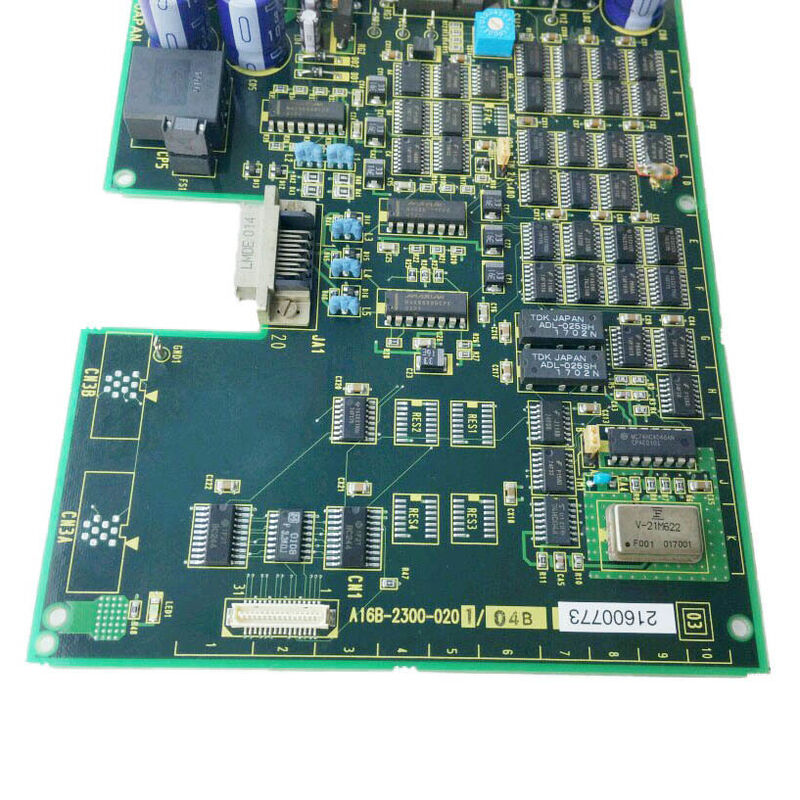

A16B-2300-0201 | FANUC 8.4-Inch Color LCD Control PCB — Color Display Driver / CNC Operator Interface / A16B-2300 Series

Color LCD — A Step Change in the Operator Environment

The transition from monochrome CRT displays to color LCD in FANUC CNC operator interfaces brought tangible operational improvements:

Color differentiation: Status information, alarm messages, tool path graphics, and programme content can all use color coding. Active axes are highlighted in a different color from inactive axes. Alarm messages appear in red. Normal status appears in green. Operators process colored information faster than monochrome equivalents.

No geometric distortion: CRT displays develop barrel and pincushion distortion over time as the deflection coil ages. LCD panels maintain geometric accuracy throughout their service life — the displayed grid is as square after ten years as on the first day.

Backlight consistency: While CRT phosphor brightness dims over years of use, LCD backlights maintain their brightness until end-of-life and then fail more abruptly — making the backlight's service life more predictable.

Compact depth: LCD panels are physically thin compared to the deep CRT tube assembly. The 8.4-inch form factor allows a complete color CNC operator panel in a compact housing.

The A16B-2300-0201 drives this 8.4-inch color LCD display — providing all the control functions that produce the operator's colored, graphical CNC interface.

Key Specifications

LCD Control PCB Functions

The A16B-2300-0201 performs several functions simultaneously to produce the display image:

Video signal reception and conversion: Receives the CNC's video output signal and converts it to the format required by the 8.4-inch color LCD panel — matching the panel's native resolution, refresh rate, and signal voltage levels.

Color management: Generates the three-channel RGB (Red/Green/Blue) output to the LCD panel's color filter array — producing the full color gamut required for clear, readable colored display content.

Display timing: Generates the horizontal synchronization, vertical synchronization, and pixel clock signals that synchronize the LCD panel's scanning with the video content.

Backlight control: Manages the CCFL or LED backlight circuit, regulating brightness and controlling power-on/power-off sequencing for the panel's illumination system.

When the A16B-2300-0201 fails, the display goes dark or shows corrupted color content — while the CNC's underlying machining functions continue normally.

Application Scenarios

Color display failure on compact CNC: A FANUC CNC system with an 8.4-inch color operator panel loses its display. The CNC continues executing programmes and responding to I/O normally, confirming the main CNC board is intact. The A16B-2300-0201 color LCD control PCB is identified as the fault. Replacement restores the full-color display.

Display color corruption: An 8.4-inch color LCD panel shows incorrect colors or color streaks. After confirming the LCD panel itself is undamaged, the A16B-2300-0201 PCB's color signal generation is identified as the fault.

FAQ

Q1: Does A16B-2300-0201 require any configuration after fitting?

No. The LCD control PCB is a hardware component — it generates display signals based on the video input it receives from the CNC. No software configuration or parameter changes are required after fitting. The display should restore immediately on power-up.

Q2: Can the A16B-2300-0201 drive a 9.5-inch or 10.4-inch LCD panel?

No. The A16B-2300-0201 is calibrated specifically for 8.4-inch color LCD panels. The timing parameters, resolution, and backlight control are matched to the 8.4-inch panel's specifications. Using this board with a 9.5-inch or 10.4-inch panel would produce an incorrect image. For these larger sizes, use the A16B-2300-0081 (9.5-inch) or A16B-2300-0085 (10.4-inch) respectively.

Q3: What is the "MMCIV" mentioned in A16B-2300-0081 (the 9.5-inch variant)?

MMCIV stands for Multimedia Card IV — an additional integrated function on the 9.5-inch variant that provides multimedia capabilities beyond the basic color LCD control. Whether the A16B-2300-0201 includes MMCIV or an equivalent function is defined by the specific 8.4-inch CNC operator panel configuration it serves.

Q4: How do I distinguish an A16B-2300-0201 failure from a failed 8.4-inch LCD panel?

A failed A16B-2300-0201 control PCB typically causes: complete blank display despite confirmed-intact backlight; corrupted color signal (wrong colors across the entire display); or loss of video synchronization (rolling or unstable image). A failed LCD panel typically shows: physical damage to the panel surface; partial display failure (dead zones or stuck pixels); or degraded image quality confined to specific areas of the panel. Swap in a known-good A16B-2300-0201 PCB to confirm whether the fault is in the control board or the panel.
