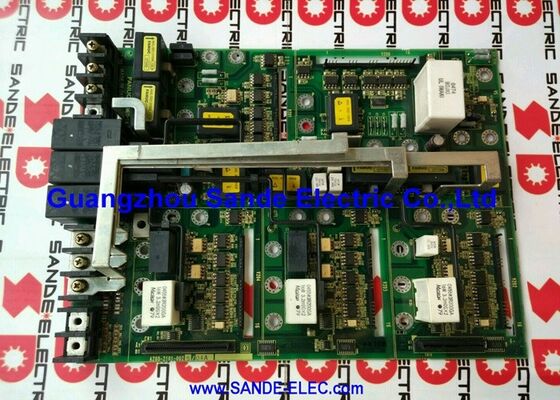

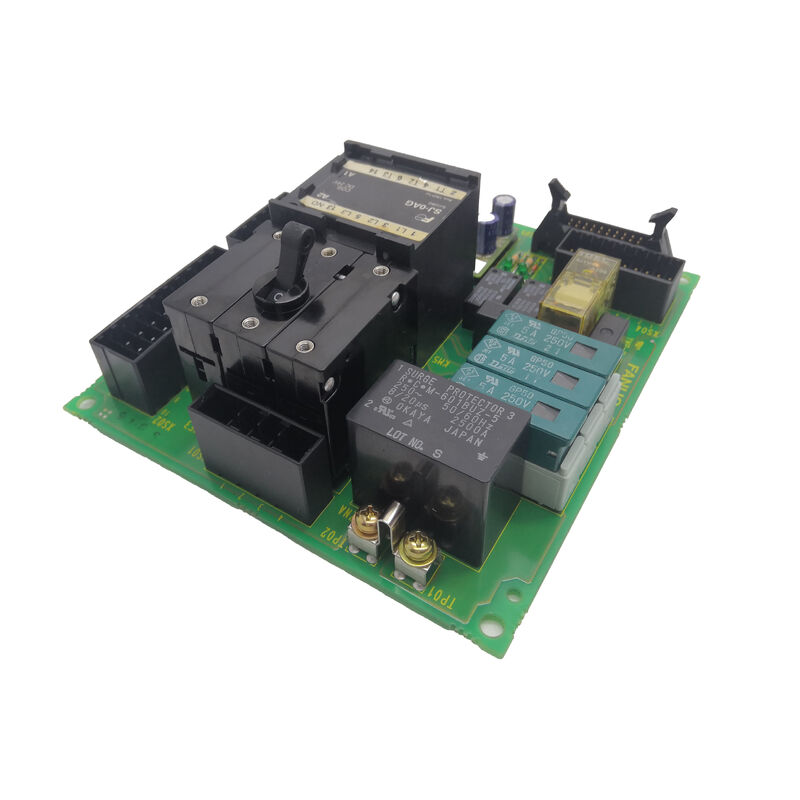

A20B-1006-0489 | FANUC Alpha SPM-30 Spindle Amplifier Power PCB — A06B-6088-H230 / Japan / With A20B-2902-0390 and A16B-2202-043x

SPM — The Spindle Drive Module in the Alpha System

In a FANUC Alpha series drive cabinet, the SPM (Spindle Power Module) drives the machine tool's main spindle motor. The SPM receives DC bus voltage from the PSM (Power Supply Module) and converts it to variable-frequency AC output for the spindle motor.

The SPM-30 handles a 30kW spindle — a typical power level for machining centres with spindle motor sizes in the 22–30kW range, covering a broad range of general-purpose machining operations.

Inside the SPM-30 module, three distinct PCBs work together:

The power board (A20B-1006-0489): The primary wiring and power routing PCB. It carries the high-current connections — DC bus input, three-phase AC output to the spindle motor, and the power device interfaces.

The firing board (A20B-2902-0390): Generates the gate drive pulses for the IGBT switching devices. The firing board translates control card commands into the microsecond-precision gate signals required for accurate spindle speed and torque control.

The control card (A16B-2202-043x or A16B-2203-033x): The intelligence layer. It receives spindle speed commands from the CNC, runs the speed and current control loops, processes encoder feedback, and commands the firing board.

Key Product Information

30kW Spindle Output — What This Power Level Covers

The SPM-30 module is rated for 30kW continuous spindle output. In the context of machining centre spindle motors, 30kW covers:

• High-speed machining centres with moderate spindle torque at elevated speeds
• General-purpose vertical machining centres with 15,000–20,000 RPM spindle range
• Horizontal machining centres where sustained power at moderate torque is required

The 30kW rating refers to the total continuous output power. Short-term peak power during acceleration transients typically exceeds this value.

Application Scenarios

SPM-30 power board fault: A machining centre spindle drive generates a persistent overcurrent alarm that does not correlate with motor or mechanical load. The control card and firing board test correctly. The A20B-1006-0489 power board is identified as the fault. Replacing the board restores normal spindle operation.

SPM-30 module service: During a scheduled spindle drive module overhaul, the A20B-1006-0489 power board is replaced alongside the firing board as part of a complete PCB renewal for a high-hours spindle drive system.

Post-fault restoration: A spindle module suffers an internal fault following a DC bus overvoltage event. The power board shows visible component damage. The A20B-1006-0489 replacement, combined with verification of the firing board and control card, restores the spindle module to full operating specification.

FAQ

Q1: Is the A20B-1006-0489 sold and installed separately, or only as part of a complete module?

Some service organisations supply the A20B-1006-0489 as an individual board for repair-level replacement. Others, such as CNC Electronics, supply only the complete A06B-6088-H230 module as an assembly — not the individual PCB alone. Whether individual board supply or complete module supply is the right approach depends on the fault diagnosis: a single confirmed board failure supports individual PCB replacement; widespread module damage (multiple boards, power devices) is better resolved by complete module replacement.

Q2: What is the function of the firing board A20B-2902-0390, and how does it interact with the A20B-1006-0489?

The firing board generates the gate drive signals (PWM pulses) for the IGBT transistors in the SPM-30's output stage. The gate drive signals pass through the power board (A20B-1006-0489) to reach the IGBT gate terminals. If the firing board generates incorrect gate timing, the power board transmits these incorrect signals to the power devices — leading to current imbalance, excessive heating, or component failure. Fault diagnosis should confirm both boards are functioning correctly before replacing only one.

Q3: How is the SPM-30 (A06B-6088-H230) different from the newer A06B-6102-H230 variant?

Both use the A20B-1006-0489 power board but with different control card revisions and software versions. The H230 in the A06B-6088 series uses control cards in the A16B-2202-043x series; the A06B-6102-H230 uses control cards from the A16B-2203-033x series with updated firmware (ROM version 9D20 or later). The power board is common between these variants because the motor drive hardware is identical — the difference is in the control software capability.

Q4: What protection features does the SPM-30 module provide?

The SPM-30 protects against overcurrent (output current exceeding limits), DC bus overvoltage (from PSM or regeneration), phase-to-phase and phase-to-ground short circuits, overtemperature (heatsink temperature monitoring), and spindle motor overload. These protections are implemented across the three-board stack: the control card monitors most conditions and commands the firing board to disable gate pulses on a fault; the power board contributes to thermal monitoring through thermistor connections.
