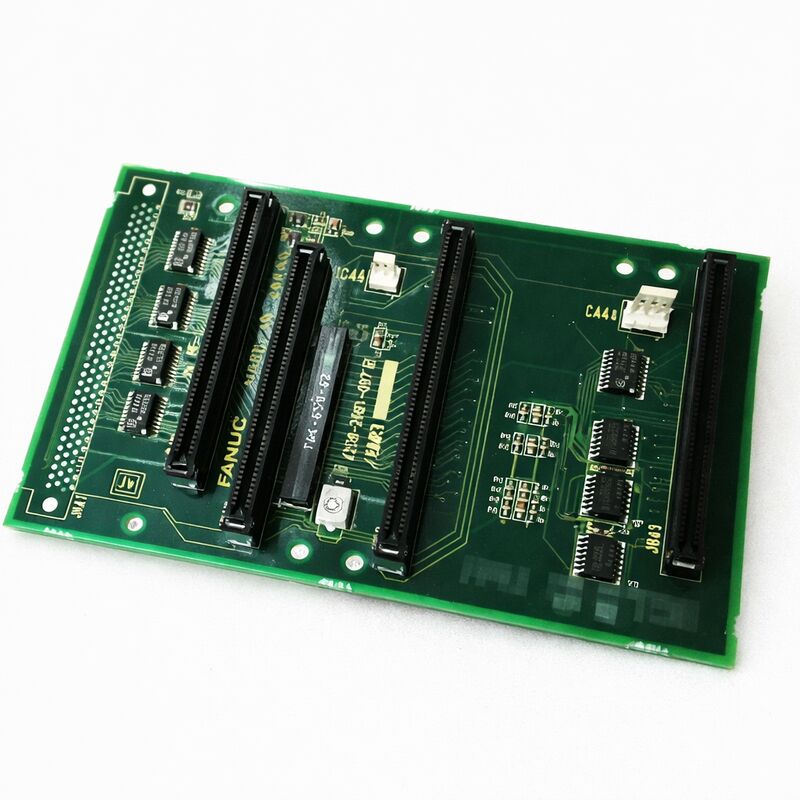

FANUC A20B-2001-0850 R-J2 Mate 2-Slot Backplane PCB

In an R-J2 Mate control system, the backplane is the board that determines how the installed modules sit together electrically and mechanically.

The FANUC A20B-2001-0850 is identified in public listings as an R-J2 Mate Control 2 Slot Backplane PCB, part of the A20B-2001 series.

That makes it a structural control-board component rather than a display board, memory module, or power PCB.

Because this model is a 2-slot backplane, it is most useful in controller repairs where the original rack layout needs to be preserved.

In practical service work, a backplane is usually selected by exact controller family and slot arrangement first, because a mismatch here can affect board fit, connector alignment, and inter-board communication.

Product Data

Actual Applications

The A20B-2001-0850 is used in FANUC R-J2 Mate control systems where a 2-slot backplane PCB is required to support the controller board layout.

In practical terms, it is typically applied during control cabinet repair, backplane replacement, or restoration of an existing R-J2 Mate controller when the original rack structure must remain unchanged.

This board is especially relevant in applications where the original control needs to keep the same board interconnection format, such as robot controller repair, legacy FANUC control refurbishment, and service work on installed R-J2 Mate systems.

Because it is a backplane rather than a logic processor board, its real-world value is highest when the goal is to preserve slot alignment and board-to-board connectivity inside the controller.

FAQ

Q1. What type of board is the A20B-2001-0850?
It is a 2-slot backplane PCB for the FANUC R-J2 Mate control. Public listings identify it specifically by that description, which places it in the controller rack and interconnection section rather than the display or power section.

Q2. What does this board do in the system?
A backplane board provides the physical and electrical base for the controller boards installed into it. Since this model is described as an R-J2 Mate Control 2 Slot Backplane PCB, its role is to support and connect the boards that fit into that two-slot control arrangement.

Q3. What should be checked when selecting A20B-2001-0850?
The key checks are the exact part number, the controller family, and the slot layout already installed. Because this board is described specifically for R-J2 Mate and specifically as 2-slot, both the controller generation and the rack format should match the existing unit.

Q4. How should the “2-slot backplane” specification be understood?
It should be read as a functional layout detail, not a generic label. “2-slot” indicates the board is built for a controller arrangement with two board positions, so it is not enough to match only the series family; the slot count also matters when replacing the original backplane.

Q5. What is most important to confirm before replacement?
Before replacement, confirm the installed controller is R-J2 Mate, the original board label reads A20B-2001-0850, and the slot arrangement is the same. It is also worth checking the connected boards and harness layout before removal, because a backplane replacement affects how the rack-mounted boards reconnect to the control base.
