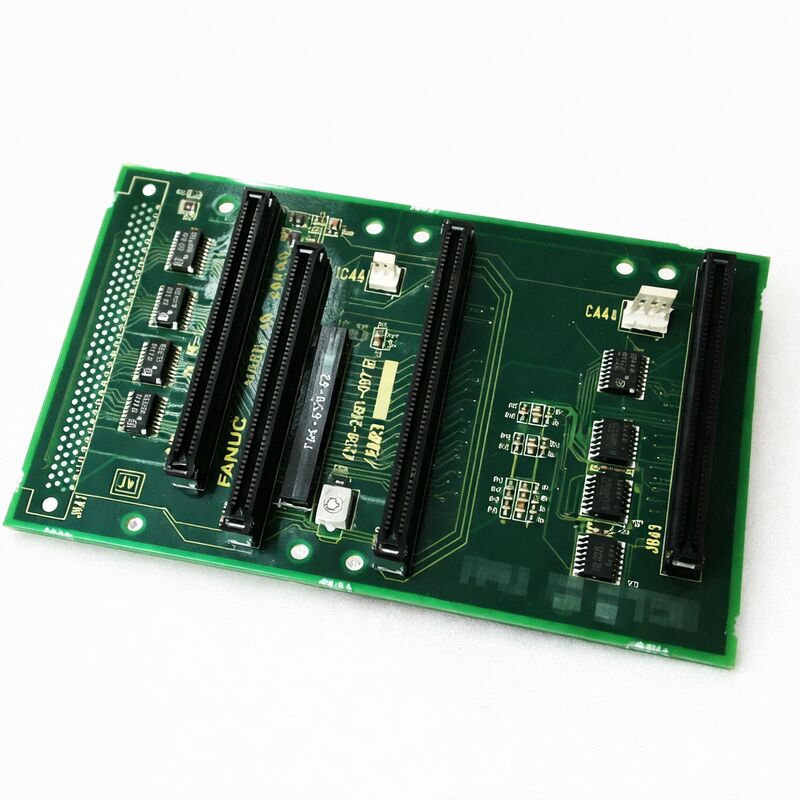

Fanuc Robotics Backplane Board A20B-2001-0860 A20B20010860 A2OB-2OO1-O86O

FANUC A20B-2001-0860 | Alpha Series Drive Control PCB — A20B-2001 Series, CNC Automation, Japan Origin

Part Number: A20B-2001-0860

Manufacturer: FANUC Corporation (Japan)

Product Type: Drive Control Printed Circuit Board

Board Series: A20B-2001

Application: FANUC Alpha series drive systems — CNC machine tools and automation

Function: Control-level PCB within FANUC's Alpha servo and spindle amplifier architecture

Overview

The A20B-2001-0860 is a control printed circuit board from FANUC's A20B-2001 series — one of the core PCB families that populate the control and interface layer of FANUC's Alpha series servo and spindle drive modules.

The A20B-2001 series spans a wide range of applications within the Alpha drive ecosystem. Boards in this family serve as the intelligence layer of drive modules: they process servo speed and current commands, manage closed-loop control algorithms, handle encoder feedback, and interface with the CNC controller's communication buses.

The A20B-2001-0860 occupies this role in its specific drive configuration.

The Alpha series drive platform — encompassing servo amplifier modules (SVM), spindle amplifier modules (SPM), and power supply modules (PSM) — was FANUC's breakthrough modular drive architecture.

The modular concept meant that a single power supply module provided the DC bus for all drive modules on the common bus, and each SVM or SPM module drew from that shared DC supply while handling its individual motor.

Within each module, two boards share the work: a power wiring board (which carries the transistors, current sensing, and high-current connections) and a control PCB (which processes signals, runs control algorithms, and manages the drive's interface to the CNC).

The A20B-2001-0860 is the control PCB layer.

The physical distinction between the control card and the power wiring board inside a drive module carries direct diagnostic importance. Control card faults generate alarm codes related to communication, servo algorithm failure, and internal power supply problems. Power board faults generate overcurrent, transistor fault, and phase loss alarms.

This division helps service technicians isolate which board requires replacement — avoiding unnecessary replacement of a board that is still functional.

Key Specifications

Alpha Drive Architecture — Where This Board Fits

The Alpha drive system was designed around a common-bus DC architecture. The PSM converts 200V AC three-phase from the machine supply into a regulated 283–325V DC bus. This DC bus runs through the drive cabinet, connecting to each SVM and SPM module in the system.

Every individual drive module takes its motor output power from this common DC bus and processes it through its own internal IGBT transistors.

The A20B-2001-0860 sits at the top of this structure — the control side. Below it, the power wiring board receives the gate drive signals from this control card and uses them to switch the transistors that drive the motor.

Above the control card, in the system hierarchy, is the CNC controller, which sends axis commands down through the FSSB optical fiber bus or through the PWM/Type B interface cables, depending on the drive generation.

This control card processes the commands arriving from the CNC, computes the required motor current to achieve the commanded velocity or position, and generates the gate signals for the power board.

It also monitors the drive's own health — temperature, DC bus voltage, current feedback — and generates the alarm codes that appear on the drive's LED display and are reported back to the CNC.

Drive Module Service

Alpha series drive modules, including those that contain the A20B-2001-0860, have an established service infrastructure in the industrial maintenance market. Service providers offer module-level exchange (swap a tested module for the faulty one), board-level diagnosis (isolate the fault to the control card or the power board), and component-level repair where specific failed devices are identified and replaced.

Testing a control card board requires running it as part of a complete drive module under motor load. Bench testing without a motor load cannot adequately verify the closed-loop current control algorithm or the encoder feedback processing — both of which require actual motor current flowing through the power section and actual encoder signals returning from the motor.

This is why reliable service providers test drive boards in complete module assemblies rather than in isolation.

FAQ

Q1: The Alpha drive module's LED display shows an alarm code. How do I determine if the A20B-2001-0860 control card is at fault rather than the power wiring board?

The alarm code type is the primary indicator. Control card faults typically produce alarm codes related to internal communication, axis communication errors, initialization failures, or internal power supply faults. Power section faults produce overcurrent, transistor module fault, or DC bus-related alarms.

Consult the specific drive module's alarm code list — each alarm number maps to either the control or power section.

If the alarm points to the control section, the A20B-2001-0860 is the suspect.

Q2: After a power surge event, the drive module no longer completes its startup sequence. The LED display is blank or shows an error that clears when power is cycled but the drive will not reach a ready state. Is the control card the likely fault?

Power surge events can damage both the control card's internal logic power supply and the power board's transistors.

A blank LED display points to a control card or its internal supply section, since the LED indicators are driven by the control card.

A drive that does not complete startup after the LED initialises may have a communication fault or a failed startup self-check.

Either way, with power surge as the cause, the control card is a plausible fault location. Test by substitution with a confirmed-good control card in a compatible drive module.

Q3: The drive module operates normally most of the time, but produces intermittent alarm codes that clear when the drive is cycled. Could the A20B-2001-0860 be the cause?

Intermittent alarms that clear on power cycle are a classic signature of aging electrolytic capacitors on the control card's internal power supply circuits. As temperature rises during operation, capacitor performance degrades further, causing the supply rails to drop below the logic threshold and triggering alarms.

The alarms clear when the drive cools after power-off.

This pattern is temperature-dependent and progressive — the intervals between alarms shorten as the capacitors continue to degrade. Board-level refurbishment (capacitor replacement) or control card exchange is the appropriate remedy.

Q4: The A20B-2001-0860 is discontinued by FANUC. What replacement options are available for keeping the drive in service?

Three options exist. Aftermarket specialist suppliers maintain stocks of refurbished A20B-2001-0860 boards tested under motor load. Component-level repair is available from specialists with board-repair expertise — they identify the specific failed component rather than replacing the whole board.

For machines where the Alpha drive platform is becoming a recurring maintenance burden, upgrading to a current-generation αi series drive with the appropriate CNC interface may be evaluated as a longer-term solution, though this requires CNC-side parameter changes.

Q5: A replacement control card from a different but physically similar Alpha drive module is available. Can it be used in this module?

Within the Alpha drive family, control cards are drive-specific — they are matched to the specific transistor rating, axis configuration, and interface type of their host module.

A control card from a different drive module may appear physically similar but use different gate drive parameters and interface configuration that do not match the power board it would be paired with.

Using a mismatched card risks incorrect transistor switching and potential drive damage.

Always source the replacement by matching the exact part number of the original card.
