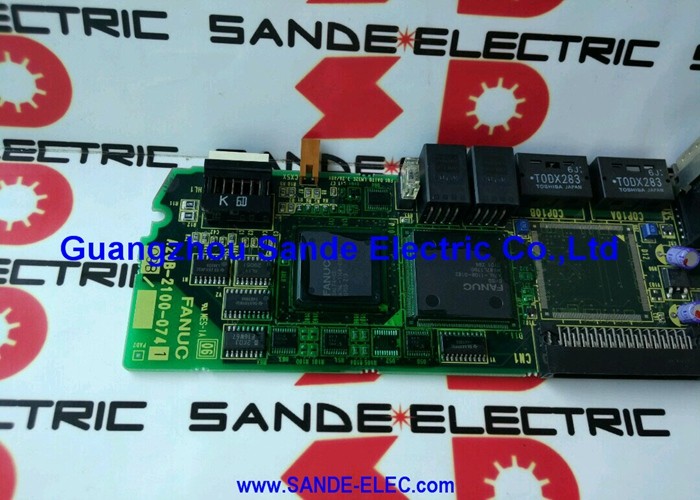

Fanuc A20B-2003-0420 PCB Control Board A20B20030420 A2OB-2OO3-O42O Used

A20B-2003-0420 | FANUC αi PS HV Driver PCB — A06B-6150-H75 / A06B-6150-H100 / High-Voltage Power Supply Drive Board

αi PS HV — FANUC's High-Voltage Drive Power Supply Series

The FANUC αi PS HV (Alpha-i Power Supply, High Voltage) series provides the DC bus power for FANUC's Alpha-i series servo and spindle drive systems in high-voltage electrical environments. The "HV" designation distinguishes these modules from the standard 200V-class αi PS modules — HV variants are designed for higher-voltage supply architectures common in certain markets and machine tool configurations.

The A20B-2003-0420 is the dedicated "Driver PCB" fitted in the two highest-power models of the αi PS HV series:

The smaller αi PS HV models (18HV through 60HV) do not carry the A20B-2003-0420 driver board — this board is specific to the 75HV and 100HV models where additional drive circuitry is needed for the higher output power.

Key Specifications

Driver PCB Function in the αi PS HV

The αi PS HV power supply contains multiple PCBs working together. The A20B-2003-0420 driver PCB handles the gate drive functions for the power module's switching devices:

Gate drive signals: The driver PCB amplifies the switching commands from the control PCB (A20B-2100-0390) into the high-current gate drive pulses required to switch the power module's IGBT or similar power transistors.

Isolation: Gate drive circuits require electrical isolation between the control-level signals and the high-voltage power switching circuitry. The A20B-2003-0420 provides this isolation function — ensuring the control and power circuits are correctly separated.

Protection integration: The driver PCB monitors the power switching devices for fault conditions — detecting short circuits, saturation, or over-temperature events and generating fast protective shutdowns to prevent component damage.

The A20B-2003-0420 is specific to the 75HV and 100HV models because these higher-power variants require a dedicated, larger-capacity gate drive circuit that the lower-power models' PCB architecture handles internally.

Application Scenarios

αi PS 75HV driver PCB fault: A FANUC αi PS 75HV power supply module develops control-level or gate drive faults. After verifying the power transistors and control PCB (A20B-2100-0390), the A20B-2003-0420 driver PCB is identified. Replacement restores power supply module function.

αi PS 100HV high-voltage power supply maintenance: A production facility's largest servo drive system — powered by a 100HV supply module — undergoes comprehensive maintenance. The A20B-2003-0420 driver PCB is replaced alongside the A20B-2100-0390 control PCB as part of the internal board renewal.

FAQ

Q1: What distinguishes the 75HV and 100HV αi PS modules that require A20B-2003-0420?

The αi PS HV series ranges from 18HV to 100HV in rated power output. The 18HV through 60HV models integrate all gate drive functions on their single control PCB (A20B-2100-0390 only). The 75HV and 100HV models handle significantly higher switching currents — requiring a dedicated driver PCB (A20B-2003-0420) with more robust gate drive circuitry to switch the larger power modules at the required speed and reliability.

Q2: Can A20B-2003-0420 be replaced independently of A20B-2100-0390 in the same module?

Yes. The driver PCB (A20B-2003-0420) and control PCB (A20B-2100-0390) are separate components within the αi PS 75HV/100HV module — each is independently replaceable. If diagnostic testing identifies one board as the fault, only that board needs replacement. However, if the fault condition (such as a power transistor short circuit) could have caused overstress on both boards, both should be inspected before returning the module to service.

Q3: What alarms or symptoms indicate an A20B-2003-0420 driver PCB fault?

Driver PCB faults in αi PS modules typically manifest as: power supply module alarms immediately on enabling the DC bus, failure of the power switching stage to turn on despite a healthy control PCB, or oscillatory or erratic DC bus behaviour suggesting incomplete or asymmetric gate drive. These must be distinguished from transistor module faults (which produce overcurrent alarms) and control PCB faults (which produce communication or parameter errors). The 7-segment display on the αi PS module shows alarm codes that help identify the fault level.

Q4: What safety precautions apply before accessing A20B-2003-0420 inside the αi PS 75HV or 100HV?

Power down and lock out the mains supply. The αi PS HV modules operate at high DC bus voltages — significantly higher than the standard 200V-class supplies — and these voltages persist in the bus capacitors after mains removal. Follow the discharge waiting time specified in the FANUC αi servo amplifier maintenance manual before opening the module. Verify DC bus voltage is below 30V using a calibrated voltmeter. Handle A20B-2003-0420 with an anti-static wrist strap on an ESD-safe surface.
