| Place of Origin | JAPAN |
| Brand Name | FANUC |
| Certification | CE ROHS |
| Model Number | A20B-2100-0030 |

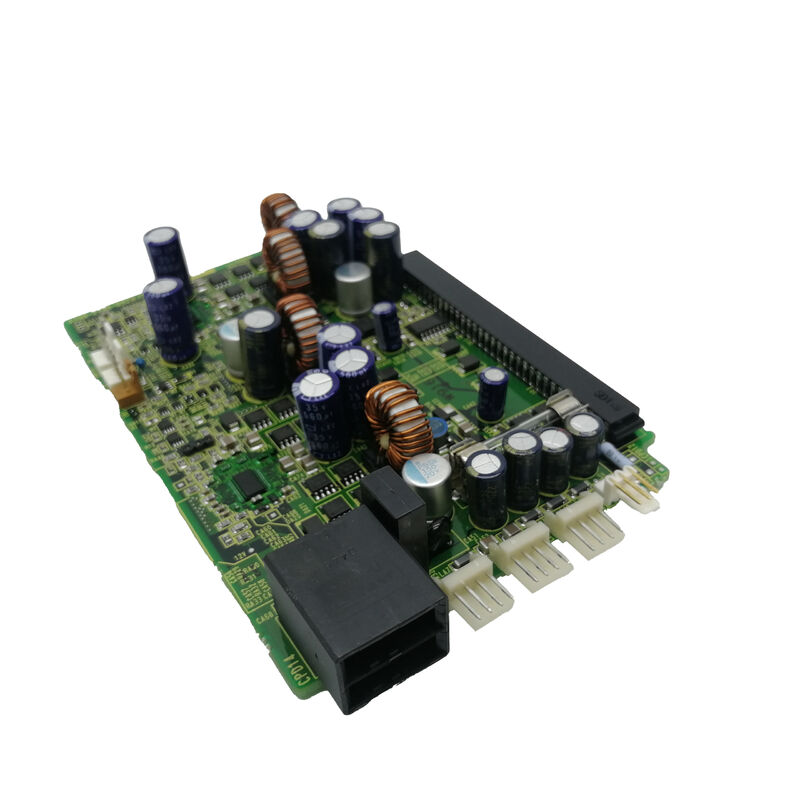

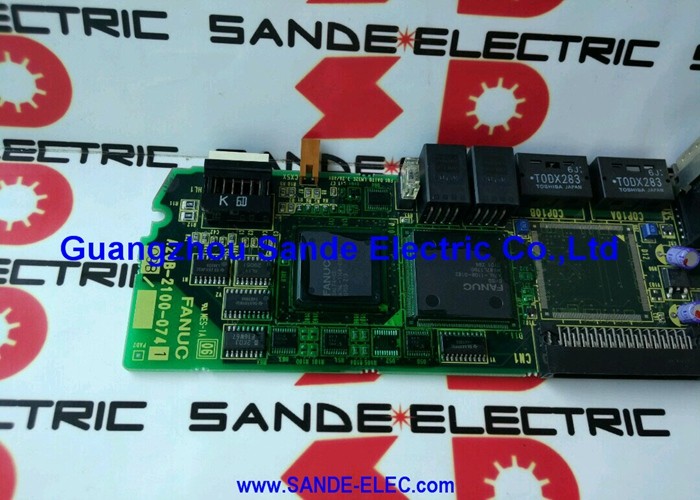

The A20B-2100-0030 is the control PCB from FANUC's A20B-2100 series — the front board that provides the control intelligence in an Alpha series servo or spindle amplifier module. Understanding what this board does, and what it does not do, is essential for correct fault diagnosis.
A FANUC Alpha drive module is a two-layer assembly. The base power board handles everything high-voltage: rectifier bridge, DC bus capacitors, IGBT modules, gate drivers, and current sensing. The front control PCB handles everything digital: receiving axis position commands from the CNC over the FSSB fibre-optic link (or Type-A analogue interface), computing the current reference from the position error, running the current control algorithm to generate PWM duty cycles, and transmitting status and alarm data back to the CNC.
These two layers fail through different mechanisms. IGBT modules on the power board degrade through thermal cycling and overcurrent stress. The control PCB fails through electrolytic capacitor ageing (affecting the board's internal power supply), ESD damage during servicing, or individual IC failures. Because they fail independently, a power board can be entirely healthy while the control PCB is faulty — and vice versa. Identifying which layer has failed before ordering parts avoids replacing good hardware.
Three alarm categories specifically implicate the A20B-2100-series control PCB rather than the motor or power board:
FSSB communication alarms (SV200/SV400): The control PCB contains the FSSB optical transceiver IC that links the drive to the CNC. A failed transceiver produces FSSB communication faults even with an intact fibre cable.
Encoder alarms (servo alarm 8): The control PCB decodes the encoder serial data from the servo motor. If the PCB's encoder receiver circuit fails, the CNC receives no position feedback and generates encoder fault alarms — often incorrectly attributed to the encoder or cable before the board is considered.
Excessive following error (servo alarm 9/A): A failed op-amp, broken ADC, or lost power supply on the control PCB disrupts the current control loop. The drive outputs incorrect or no current, position error accumulates, and the CNC trips on excessive following error.
The A20B-2100 family covers a large range of drive module configurations — single-axis, dual-axis, and spindle amplifiers at different current ratings all use boards from this series. The last four digits identify the specific variant. Different suffixes correspond to different drive types, different interface types, and different motor series parameters.
Installing a wrong-suffix board causes immediate alarm or incorrect motor behaviour. If the original board's label is illegible, identify the correct PCB by cross-referencing the drive module's order specification (A06B-6096-Hxxx or A06B-6079-Hxxx) against the FANUC Alpha series maintenance manual.
| Parameter | Value |
|---|---|
| Part Number | A20B-2100-0030 |
| Series | A20B-2100 |
| Type | Servo drive control PCB |
| Interface | FSSB or Type-A (variant-dependent) |
| Mounting | Front assembly of Alpha module |
| Status | Discontinued |
| Origin | Japan |
Q1: How is it confirmed that the control PCB has failed rather than the power board or motor?
The alarm code pattern is the first indicator. FSSB communication alarms that persist after replacing the fibre cable point to the PCB's transceiver. Encoder alarms that persist after confirming cable integrity and testing with a known-good motor implicate the PCB's encoder receiver. The definitive diagnostic is board swap testing: fit a known-good A20B-2100-0030 to the suspect drive — if the drive operates correctly, the original PCB is confirmed faulty.
Q2: Can different A20B-2100 suffix variants (e.g., -0030 vs -0031) be used interchangeably?
No. Different last-four-digit variants correspond to different drive module types, interface protocols, and motor parameters. The replacement must match the original part number exactly. If the original board is unreadable, use the drive module's order specification number to identify the correct PCB from FANUC's Alpha series maintenance documentation.
Q3: Is component-level repair of the A20B-2100-0030 viable?
Yes, through specialist FANUC repair centres with component-level test rigs. Common repair items are electrolytic capacitors, optocouplers, clock oscillator crystals, and voltage regulator ICs. A full board repair from an experienced centre typically restores the board to functional specification. For high-value machines where downtime is expensive, repair is almost always more cost-effective than sourcing new-old-stock, which may be unavailable or priced at a premium.
Q4: What is the correct procedure for replacing the A20B-2100-0030?
Power the machine down and wait for the drive module's DC bus to discharge — observe the charge indicator LED. Install the replacement with ESD precautions and confirm all connectors and optical fibre connections are fully seated. Power up and observe the LED display at startup; a normal "0" or "–" display indicates successful initialisation. Check for alarm 9001 (servo parameter not set) — if present, reload axis parameters from backup before jogging the axis.
Q5: What remanufactured alternatives exist?
Specialist FANUC repair companies offer fully remanufactured A20B-2100 series PCBs with full capacitor replacement, component-level inspection, and functional testing on dedicated FANUC drive test rigs. A remanufactured board from a reputable supplier typically carries a 6–24 month warranty, which often exceeds the warranty on untested surplus stock.
