A20B-2101-0012 | FANUC Beta βiSVPM2 Servo/Spindle Drive Board — A06B-6134 Series / Dual-Axis + 15kW SVSP / 0i-MC and 18/21i-B CNC

A06B-6134 — One Unit, Three Drive Functions

The FANUC A06B-6134 series Beta SVSP (Servo/Spindle Power) unit is an integrated drive designed for smaller CNC machine tools where space and cost efficiency matter. Three functions that would otherwise occupy three separate modules are combined in a single housing:

Integrated DC bus power supply: The unit includes its own power conversion stage — no external PSM (Power Supply Module) needed. AC mains connects directly to the unit and the internal rectifier generates the DC bus for the servo and spindle output stages.

Dual servo axis channels: Two servo axes (X and Z on a CNC lathe, or X and Y on a small machining centre) are driven from the same unit. Each channel is rated at 13A peak — matched to bi8 and bi12 class Beta servo motors.

15kW spindle control: A third channel drives the spindle motor — the unit is rated to spindle motors up to the biLP15 class (15kW).

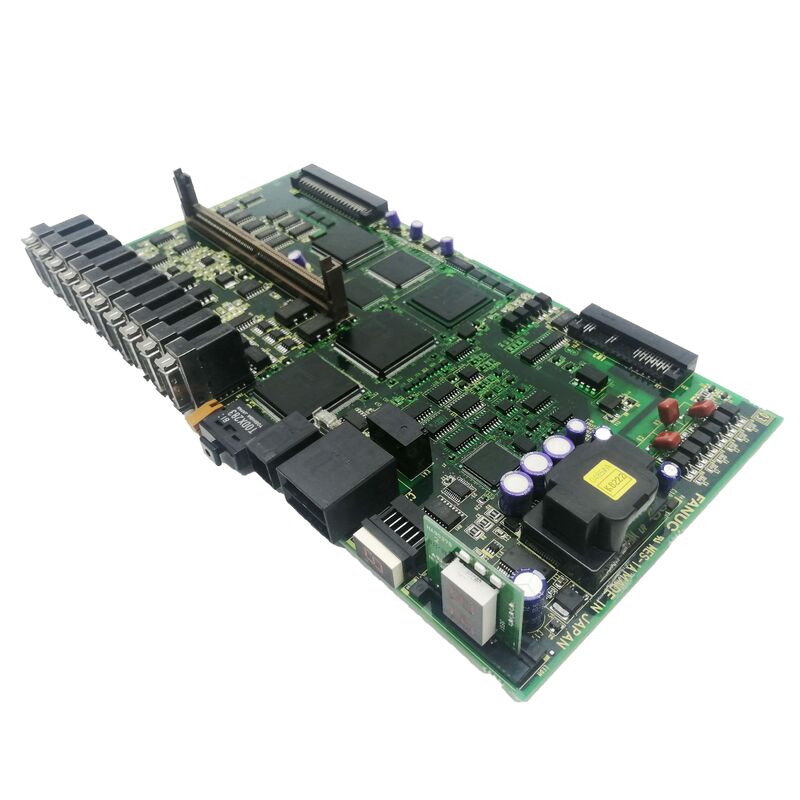

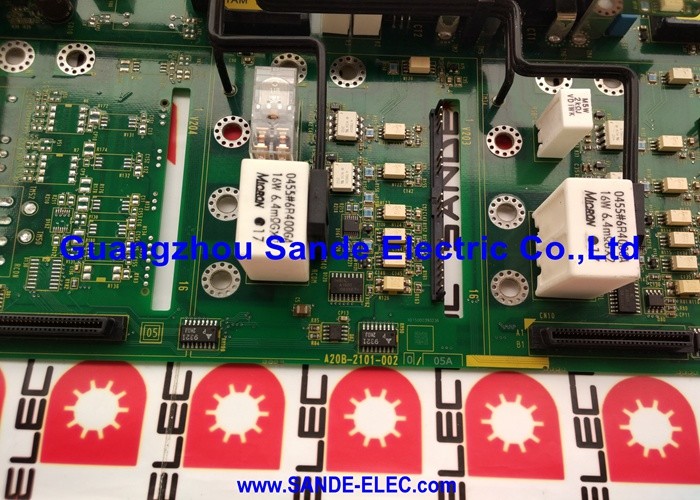

The A20B-2101-0012 is the servo/spindle drive board inside this integrated unit — one of the key PCBs confirmed as part of the A06B-6134-H203#A assembly alongside the A20B-2101-002x power board.

Key Product Information

Machine Tool Context — Where This Unit Is Found

The A06B-6134 SVSP is typically found on "less demanding CNC machine tools" — compact CNC machining centres, small CNC lathes, and training machines where full Alpha-i cabinet hardware (separate PSM + SVM + SPM) would be physically and economically disproportionate.

This unit "is normally released with late 18/21i-B controls or more than likely with the popular 0i-MC control system as a cheaper alternative" to higher-end configurations. In this context:

• A compact CNC machining centre with three axes uses two of the servo channels for X and Y; Z is handled separately or by a dedicated drive.
• A CNC lathe uses the two channels for X (cross-slide) and Z (carriage), with the spindle channel driving the main turning spindle.

The A20B-2101-0012 drive board inside this unit manages the servo and spindle switching for these channels.

Application Scenarios

SVSP drive board fault: A compact CNC machining centre with an A06B-6134-H203#A SVSP unit develops a servo or spindle alarm. After ruling out external faults, the A20B-2101-0012 drive board is identified as the fault. Board-level replacement restores full drive function.

CNC integration maintenance: A service workshop overhauling an 0i-MC CNC machining centre replaces the A20B-2101-0012 as part of a comprehensive SVSP unit repair.

FAQ

Q1: Is the A20B-2101-0012 the power board (A20B-2101-002x) or a separate board in the A06B-6134-H203?

"Contains A20B-2101-002x & A20B-2101-0012" in the A06B-6134-H203#A. The two boards serve distinct functions — A20B-2101-002x (described as A20B-2101-0022 elsewhere) is the power wiring board carrying high-current paths; A20B-2101-0012 is the servo/spindle drive board providing control logic. Both are present in the same SVSP unit.

Q2: What servo motors is the A06B-6134-H203 rated for with A20B-2101-0012?

The 13A-per-channel rating of the A06B-6134-H203#A axes matches the bi8 and bi12 class FANUC Beta servo motors. Higher-rated motors (bi22, bi40) require higher-current drives. Confirm the servo motor model from the machine nameplate before replacing or upgrading servo drive hardware.

Q3: Does replacing A20B-2101-0012 require servo or spindle parameter changes?

No. Servo and spindle parameters are stored in the CNC's main parameter memory. Replacing the A20B-2101-0012 drive board does not affect any stored parameter values. After fitting the replacement and restoring power, the SVSP unit re-establishes its drive functions under the existing CNC parameter set.

Q4: What safety precaution applies before accessing A20B-2101-0012 inside the SVSP unit?

The A06B-6134 SVSP unit has an integrated DC bus capacitor bank. Despite the unit's compact size, the capacitors retain dangerous voltage after AC mains removal. Follow the FANUC Beta i Series maintenance manual's discharge wait procedure for the A06B-6134 unit, and verify bus discharge with a DC voltmeter before accessing internal boards.

Q5: What is "biSVPM2" in the product description?

The "biSVPM2" designation identifies the functional module within the A06B-6134 SVSP unit that the A20B-2101-0012 board belongs to. It refers to the Beta i Servo/Spindle Power Module section of the SVSP unit — distinguishing this internal module from the unit's power supply section and other internal assemblies.
