A20B-2101-0390 | FANUC Alpha I Series Power Supply PCB — 7-Segment LED / On-Board Noise Filter / Printed Circuit PSM Board

Alpha I Power Supply Module — The Drive System's Energy Foundation

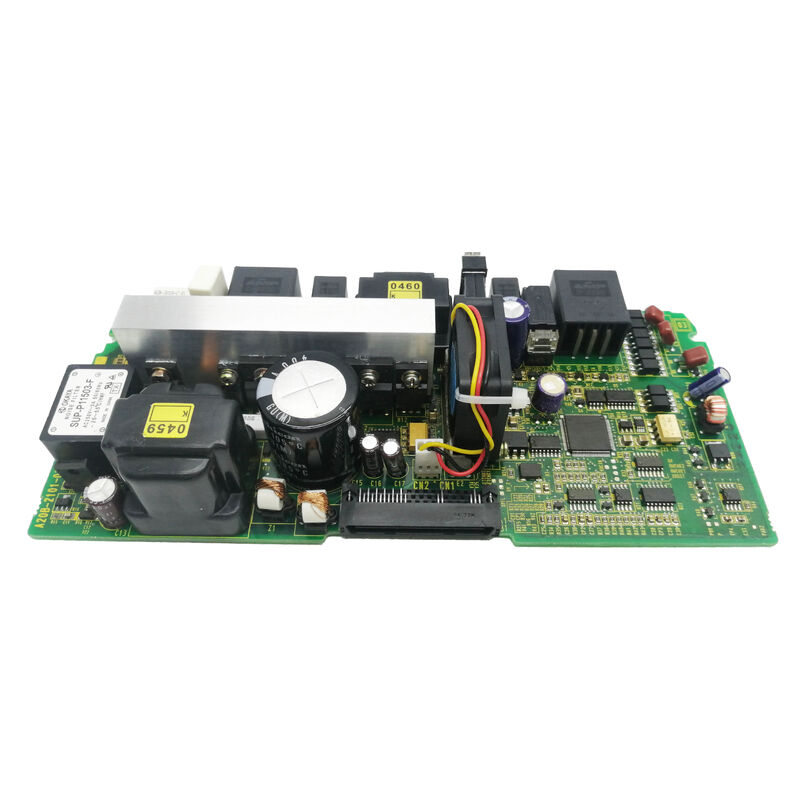

The A20B-2101-0390 is the printed circuit power supply board for FANUC's Alpha I series drive system. In FANUC's Alpha I architecture, the Power Supply Module (PSM) serves as the central power conversion unit for the entire drive system — including both servo and spindle amplifiers connected to it on the shared DC bus.

The A20B-2101-0390 PCB is the control and monitoring board within the PSM, managing:

Rectification control: The PSM converts incoming three-phase AC mains power to a regulated DC bus voltage. The power supply PCB controls this rectification process and monitors the DC bus for correct voltage level.

Regenerative energy handling: When servo or spindle axes decelerate, they generate regenerative energy. The PSM manages this energy — either returning it to the AC mains (in regenerative PSM configurations) or dissipating it through a regenerative resistor. The A20B-2101-0390 controls the regenerative switching.

DC bus monitoring: The power supply PCB monitors the DC bus voltage in real time, detecting overvoltage and undervoltage conditions and triggering protective shutdowns before the power electronics are damaged.

Status display: The 7-segment LED display on A20B-2101-0390 shows the PSM's operating status and alarm codes — providing direct visual indication of the power supply module's condition without requiring a CNC connection for basic diagnostics.

Key Specifications

On-Board Noise Filter

The "noise filter on board" specification identifies integrated EMI (Electromagnetic Interference) filtering on the A20B-2101-0390. Switching power electronics generate significant high-frequency electrical noise — both conducted noise that travels back onto the mains supply and radiated noise that affects nearby sensitive circuits.

The integrated noise filter on A20B-2101-0390:

Conducted EMI suppression: Ferrite inductors and capacitors on the power supply PCB attenuate high-frequency switching noise before it reaches the mains conductors — reducing interference with other equipment on the same power supply.

Compliance: On-board filtering is part of FANUC's drive design for CE marking and other EMC compliance requirements — ensuring the drive system meets the radiated and conducted emission limits specified for industrial machinery.

Application Scenarios

PSM power supply PCB fault: A FANUC Alpha I drive system develops PSM-level alarms — the DC bus cannot be established or the system trips immediately on power-up. After verifying the incoming mains supply, the A20B-2101-0390 power supply PCB is identified as the fault. Replacement restores DC bus establishment and normal drive operation.

Alpha I drive system maintenance: A production facility's Alpha I drive system undergoes comprehensive planned maintenance. The A20B-2101-0390 is replaced as part of the PSM electronics renewal to ensure continued reliable power supply operation.

FAQ

Q1: What is the role of the PSM power supply PCB in the Alpha I drive system?

In FANUC's Alpha I architecture, the PSM is the central power conversion unit — it rectifies three-phase AC mains power to the DC bus that all connected servo and spindle amplifiers use. The A20B-2101-0390 is the control PCB within the PSM, managing rectification, DC bus monitoring, regenerative energy handling, and protective shutdowns. Without a functional PSM, no servo or spindle drive in the system can operate.

Q2: What do the 7-segment LED codes on A20B-2101-0390 indicate?

The 7-segment display shows two types of information: status codes during normal operation (confirming the PSM is active and the DC bus is ready) and alarm codes during fault conditions. Alarm codes are numeric — each number corresponds to a specific fault type documented in the FANUC Alpha I servo amplifier maintenance manual. Reading the displayed code is the starting point for any PSM fault diagnosis.

Q3: What safety precautions are required before replacing A20B-2101-0390?

The PSM contains large filter capacitors that store high-voltage DC energy (typically 300–600V DC bus) after mains power is removed. Before accessing the PSM interior: switch off and lock out the mains supply, then wait the discharge time specified in the maintenance manual (typically 5–10 minutes). Verify the DC bus voltage is below 30V using a calibrated voltmeter before handling any internal boards.

Q4: Does replacing A20B-2101-0390 require reconfiguration of the drive system?

The PSM power supply PCB contains no user-configurable parameter storage — all servo and spindle parameters reside in the CNC's parameter memory. After fitting the replacement A20B-2101-0390 and restoring mains power, the PSM should establish the DC bus normally. Verify the 7-segment display shows the correct ready status before enabling the CNC and testing the servo and spindle drives.

Q5: What distinguishes the Alpha I PSM (A20B-2101-0390) from earlier Alpha-series PSMs?

The "Alpha I" designation indicates the i-series generation of FANUC's Alpha drive system — an evolution of the earlier Alpha series with improved performance, higher integration, and updated communication protocols. The Alpha I PSM uses a printed circuit power supply board (A20B-2101-0390) with integrated noise filtering and 7-segment LED diagnostics — features that reflect the Alpha I generation's design improvements over earlier PSM hardware.
