| Place of Origin | JAPAN |
| Brand Name | FANUC |
| Certification | CE ROHS |
| Model Number | A20B-2900-0442 |

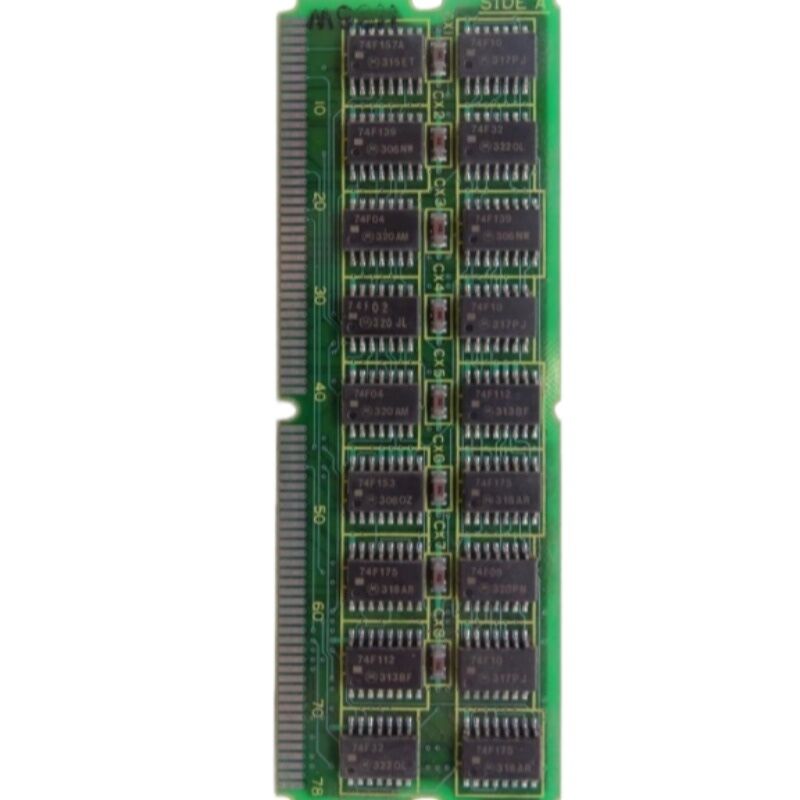

Part Number: A20B-2900-0442
Manufacturer: FANUC Corporation (Japan)
Product Type: Control PCB Module
Board Series: A20B-2900
Application: FANUC CNC control system
The A20B-2900-0442 is a printed circuit board from FANUC's A20B-2900 series — a broad family of PCB modules used across FANUC's CNC and automation product range covering memory, spindle control, servo interface, graphics, and system integration functions.
The A20B-2900 series represents the generation of modular board design that defined FANUC's pre-i-series CNC controller architecture: compact, standardised boards that plug into defined positions on the main control board and deliver specific, well-defined functions to the controller system.
FANUC's approach to CNC controller design in this era was characterised by modularity.
Rather than integrating all controller functions into a single monolithic board, FANUC distributed specific functions across a family of plug-in modules.
Each module performed a defined task: FROM storage for the CNC software, DRAM for working memory, SRAM for parameter retention, graphics processing for the display, spindle communication for the drive interface.
A controller's total capability was determined by which modules were installed in which positions on the main board.
The A20B-2900-0442 occupies its specific functional position within this modular architecture. Its exact function within the A20B-2900 family serves the controller platform for which it was designed.
The board is manufactured in Japan using FANUC's industrial-grade production standards, with components selected for continuous operation in the machine tool controller environment.
| Parameter | Value |
|---|---|
| Part Number | A20B-2900-0442 |
| Manufacturer | FANUC Corporation |
| Product Type | Control PCB Module |
| Board Series | A20B-2900 |
| Application | FANUC CNC control system |
| Origin | Japan |
| Operating Temperature | 0 – 55°C |
| Storage Temperature | −20 – 60°C |
| Humidity | 75% RH max (non-condensing) |
| Condition Available | New (surplus) / Refurbished / Repaired |
Q1: The alarm code points to the functional area served by the A20B-2900-0442. Before ordering a replacement, what should be checked first?
Always check the connector associated with the module before concluding the board has failed.
Remove the connector, inspect the contacts for corrosion, bending, or contamination, clean if necessary, and reseat firmly.
Intermittent alarms that clear on reseating the connector are connector faults, not board faults.
Only after confirming the connector is in good condition and the fault persists should board replacement be planned.
Q2: The machine has been reliable for many years. Now an A20B-2900-0442-related fault appeared. Is the board likely to fail completely, or is repair possible?
A module that has operated reliably for years and then develops a fault may have experienced component aging (capacitors, voltage regulators) or contamination from the machine environment.
These types of faults are often repairable at component level by a qualified repair technician.
Component-level repair is worth investigating before ordering a replacement module, particularly if the part is scarce.
A repaired module with a warranty from the repair service is a viable and often cost-effective option.
Q3: A replacement A20B-2900-0442 was sourced from surplus stock. How should its condition be evaluated before installation?
Visually inspect the board for any physical damage — cracked or broken components, burnt areas, corrosion, or damaged connector pins.
Test the connector contacts for continuity. If the surplus board came with a test certification, review it.
If possible, arrange for a bench function test before installing in the machine.
For critical production machines, a professionally tested and warranted board from a known source is worth the higher cost compared to untested surplus.
Q4: Are there any data backup considerations before replacing the A20B-2900-0442?
The backup requirements depend on the specific function of the board in the controller.
If the board hosts memory (FROM or SRAM), a complete data backup before removal is essential.
If the board is a functional interface or control board without persistent memory, no data backup is specific to the board itself — though a complete CNC data backup before any controller work is always good practice.
Check the controller's maintenance documentation to confirm the board's function before determining backup requirements.
Q5: The machine builder is no longer in business. Is there any way to identify the correct replacement module for this controller?
The controller's hardware manual, which is separate from the machine builder's documentation, is published by FANUC and provides the complete module configuration for each controller model.
FANUC hardware manuals are available from specialised industrial documentation suppliers and from FANUC service.
The manual lists which modules install in which positions and what function each performs.
With the controller model number confirmed, the correct module for each position can be identified from the manual.
