FANUC A20B-2900-0672 | Serial Spindle Module — A20B-2900 Series CNC Spindle Interface

Serial Spindle Interface — What This Module Does

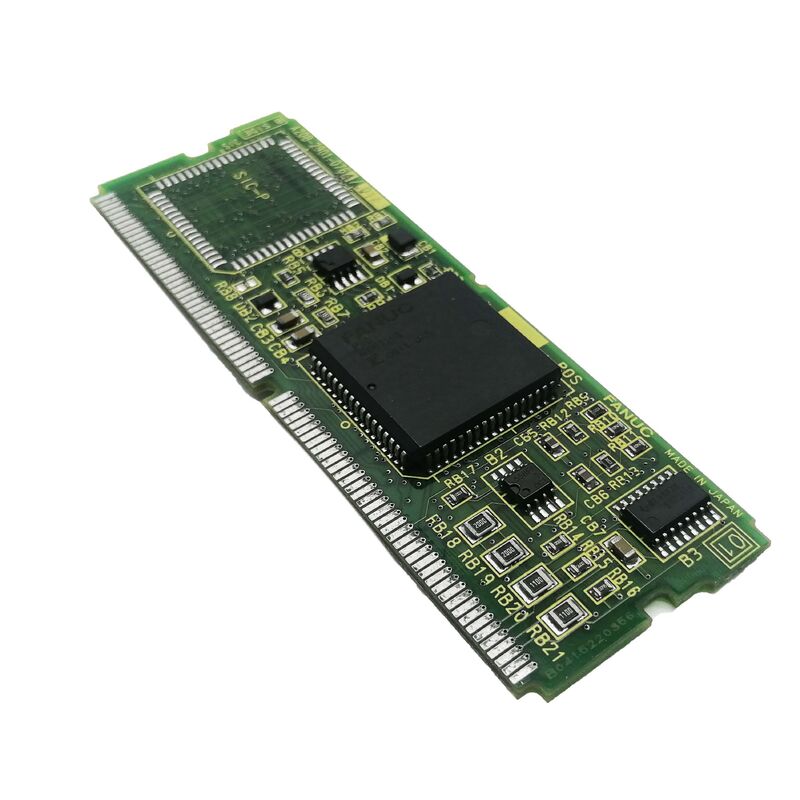

The A20B-2900-0672 is a serial spindle module from FANUC's A20B-2900 series — the plug-in card that handles the serial communication link between the CNC control unit and the spindle amplifier (SPM). In FANUC's CNC architecture, the serial spindle interface replaced the earlier analogue spindle output with a digital serial link. The spindle module on the CNC control board side receives speed commands from the CNC's spindle control function, transmits them to the SPM via the serial link, and returns spindle speed feedback and alarm data back to the CNC.

The A20B-2900 series covers the serial and analogue spindle interface modules used across multiple FANUC CNC generations. The -0672 suffix identifies this specific variant within the series — each suffix addresses a defined CNC system position and communication configuration. Adjacent variants in the A20B-2900 series serve different CNC generations or configurations and are not interchangeable without confirming the specific board position and CNC model.

When the A20B-2900-0672 fails, the CNC loses communication with the spindle amplifier. The spindle cannot be commanded and the machine cannot perform cutting operations. The fault typically presents as a spindle alarm or spindle communication alarm at the CNC, even when the spindle amplifier and motor are physically intact.

Key Specifications

Serial vs Analogue — Why the Interface Type Matters

FANUC CNC controls use either a serial spindle interface or an analogue spindle interface to command the spindle amplifier. These two interface types are not interchangeable — a serial spindle module cannot command an analogue-interface spindle amplifier, and vice versa.

The serial interface carries digital speed commands, feedback, and diagnostic data over a fibre-optic or cable link between the CNC module and the SPM. The A20B-2900-0672 is the serial interface type — confirm that the installed spindle amplifier is also a serial-interface SPM before specifying this module as a replacement. An analogue spindle module (identified by "-xxxx analogue" in service documentation) would be required if the machine uses an analogue-interface spindle drive.

FAQ

Q1: How is spindle module failure distinguished from spindle amplifier failure?

A spindle module fault presents as a communication alarm between the CNC and the SPM — the CNC cannot establish or maintain the spindle serial link. A spindle amplifier fault presents as an alarm on the SPM unit itself (LED codes or alarm readout on the SPM face). If the SPM shows a communication alarm while the SPM hardware appears undamaged, the spindle module on the CNC side is the suspect.

Q2: Does replacing the A20B-2900-0672 require spindle parameter re-entry?

Spindle motor parameters are stored in the CNC controller's main memory, not in the spindle module itself. For a like-for-like replacement, spindle parameters are unaffected. Verify the spindle motor type parameters are correct after installation and confirm normal spindle operation at reduced speed before returning to production.

Q3: Are A20B-2900 serial spindle module variants interchangeable?

No. Each suffix in the A20B-2900 series addresses a specific CNC system slot and configuration. Substituting a different -xxxx suffix may produce communication errors or the CNC may fail to detect the spindle module. Confirm A20B-2900-0672 specifically from the installed board's label.

Q4: The machine shows a spindle alarm with no physical spindle damage. What should be checked?

First confirm the serial link cable between the spindle module and the SPM is intact and fully seated at both ends. A damaged fibre cable or loose connector produces spindle communication alarms identical to a module failure. If the cable is confirmed good, the A20B-2900-0672 module becomes the fault source.
