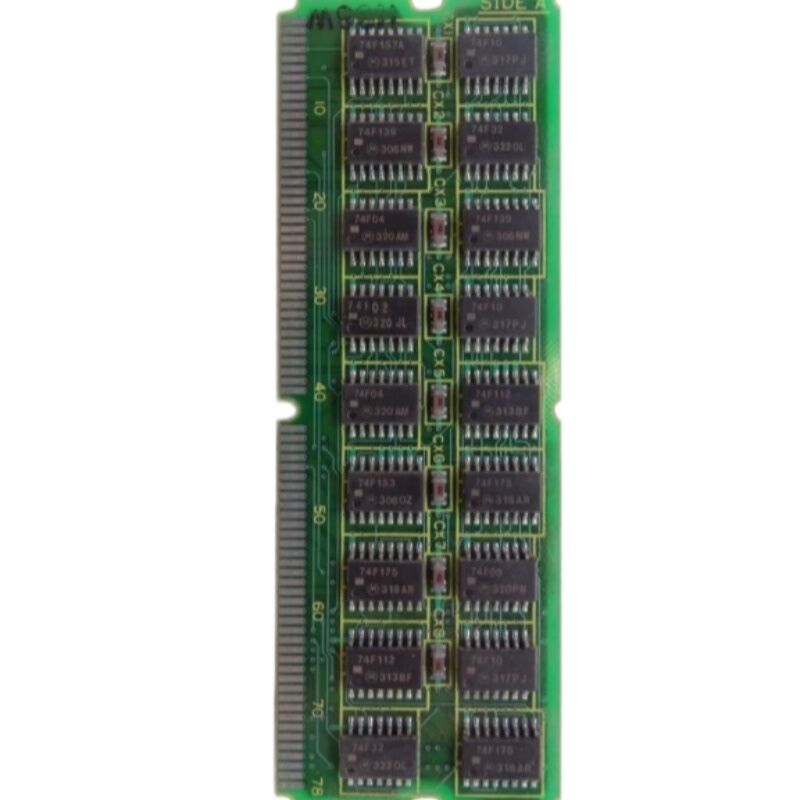

FANUC A20B-2900-0802

1 MEG DRAM Module for FANUC Control Memory Expansion and Replacement

Overview

The FANUC A20B-2900-0802 is publicly identified as a 1 MEG DRAM module in the A20B-2900 series. Multiple industrial parts sources classify it as a PCB or automation memory module rather than a general controller board, which makes it more appropriate for memory-related repair and replacement work inside FANUC-based systems.

In CNC and industrial electronics, memory modules have a narrower but very important function.

They support the control’s ability to handle working data reliably, and when memory hardware becomes unstable, the result can be difficult-to-diagnose faults rather than obvious visible damage.

For maintenance teams, a model-specific DRAM module like A20B-2900-0802 is valuable because it allows the original hardware architecture to be preserved without turning a memory fault into a larger retrofit project.

Best-fit applications

Applications

The FANUC A20B-2900-0802 is publicly identified as a 1 MEG DRAM module in the A20B-2900 series, which makes it relevant to memory-related service work inside FANUC control hardware rather than to display, power, or interface repair.

In practical industrial use, this kind of module is suited to control-memory replacement, board-level repair, and long-life maintenance of systems that still depend on original FANUC memory architecture.

Its most realistic application is in maintenance workflows where technicians need to restore the original memory configuration without redesigning the control platform.

For spare-parts buyers, it is also useful as workshop stock for troubleshooting suspected memory-module faults or for supporting installed FANUC equipment that remains productive but relies on original hardware-level memory expansion or replacement.

Replacement Guide

When replacing the A20B-2900-0802, the first step is to confirm that the machine symptoms genuinely point to a memory-module issue.

Because this part is described specifically as a 1 MEG DRAM module, replacement should follow diagnosis rather than guesswork.

Technicians should review whether the machine is showing data-handling instability, startup irregularities, or memory-related service symptoms, and should also inspect the surrounding board environment for connector issues or power instability before removing the module.

The part classification itself supports this repair logic.

For installation, exact part-number consistency matters more than visual similarity.

A DRAM module may look interchangeable with another memory board while still differing in capacity or application scope.

After replacement, engineers should verify stable startup behavior and normal control operation under routine conditions.

In service departments, this module is best handled as a dedicated FANUC memory part, with ESD-safe handling and careful attention to connector seating during installation.

FAQ

Q1: What kind of part is A20B-2900-0802?
It is publicly described as a 1 MEG DRAM module in the A20B-2900 series. That places it in the memory-hardware category rather than in the main-board, display, or power-supply category.

Q2: Why is a DRAM module important in industrial control equipment?
A DRAM module supports active data handling in the control environment. When memory hardware becomes unstable, faults may appear as erratic operation, data-related errors, or broader system instability rather than as a simple on/off failure.

That is why memory modules are treated as functional repair components, not just passive accessories.

This explanation is an engineering inference based on the part being identified as a DRAM module.

Q3: Is this part usually bought for new systems or for repairs?
Public parts listings present it mainly as a replacement component available through industrial spares suppliers, which makes maintenance and repair the more typical use case.

In older but still productive FANUC systems, replacing the correct memory module is often more practical than redesigning the control hardware around a different platform.

Q4: What should technicians verify before replacing a DRAM module?
They should confirm the exact part number, inspect the surrounding board environment, and determine whether the observed fault really points to memory hardware rather than to power instability, connector issues, or a larger CPU-side problem.

In board-level service, replacing memory is most effective when it follows structured diagnosis rather than guesswork.

This is general engineering guidance grounded in the module’s public identification as a memory part.

Q5: Why is exact part-number matching important for memory modules?
Memory modules are selected for more than just physical fit. Capacity, board compatibility, and the intended control architecture all matter.

Because A20B-2900-0802 is identified specifically as a 1 MEG DRAM module, using the correct part number reduces the risk of incompatibility and unnecessary downtime.
