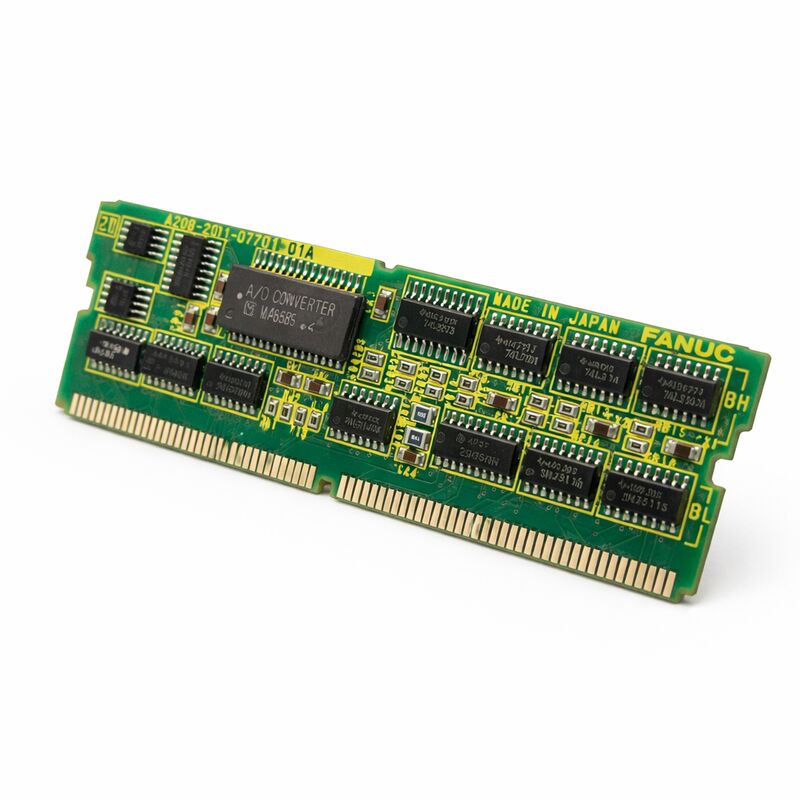

FANUC A20B-2901-0700 | Servo Interface Module — Pulse Coder Interface, Series 16/18/20/21

Part Number: A20B-2901-0700

Manufacturer: FANUC Corporation (Japan)

Product Series: A20B-2901

Product Type: Servo Interface Module (SMD plug-in daughter board)

Overview

The A20B-2901-0700 is a FANUC servo interface module — a plug-in SMD (Small Module Device) daughter board that provides the pulse coder interface between the FANUC CNC main control board and the servo amplifiers.

In the FANUC Series 16, 18, 20, and 21 CNC hardware architecture, this module plugs into the designated SMD socket on the main board and handles the critical servo feedback signal processing that makes closed-loop axis control possible.

The A20B-2901 series represents one of FANUC's established plug-in module families.

Within this series, the 0700 variant serves the servo interface function — specifically, the pulse coder (encoder) interface that routes motor position feedback from the servo amplifiers back to the CNC control for position and velocity loop closure.

The position data flowing through this interface is the foundation of the CNC's ability to position axes accurately and control motion velocity precisely.

The A20B-2901-0700 appears in the FANUC Series 16/18/20/21 hardware documentation as the servo interface function module (listed as "SERVO I/F" in FANUC's hardware configuration tables).

Its role is defined and specified within FANUC's structured module architecture, where each specific function within the CNC control is assigned to a specific plug-in SMD module type.

Key Specifications

Pulse Coder Interface — The Servo Feedback Path

In a FANUC CNC machine, the servo motor's pulse coder (encoder) generates position feedback pulses as the motor rotates. Each increment of motor shaft rotation produces a defined number of pulses from the encoder — typically in the thousands per revolution for high-resolution positioning.

The CNC uses this feedback to know where each axis is at any given moment.

The A20B-2901-0700 serves as the interface through which this encoder feedback reaches the CNC main board.

The module receives encoder signals from the servo amplifier modules and processes them into the form required by the CNC's position calculation circuits. The CNC's interpolation and position error calculation runs continuously, comparing the commanded position (calculated from the programmed path) against the actual position (derived from the encoder feedback).

Any difference — the following error — drives the velocity command to the servo amplifier to correct the position.

Without a functional servo interface module, the CNC cannot receive reliable position feedback.

The result is servo alarms — the CNC detects that feedback is lost or corrupted and stops axis motion to prevent a runaway condition.

Series 16/18/20/21 Module Architecture

In the FANUC Series 16, 18, 20, and 21 CNC systems, the main CPU board hosts several SMD socket positions for plug-in daughter boards. Each module provides specific functionality: RAM (SRAM+DRAM), PMC, FROM (Flash ROM), spindle control, servo modules, and the servo interface.

The combination of modules determines the system's memory capacity, axis count, spindle type, and I/O capabilities.

The A20B-2901-0700 occupies the servo interface position in these systems.

It works in conjunction with the servo module (which handles the DSP-based axis control computation) to provide the complete servo control chain from commanded position through to velocity command output and back from the encoder feedback.

This architecture means that the servo interface module is an essential functional component — it is not an option, but a required element of the servo control path.

A failure of the A20B-2901-0700 affects servo operation across all axes interfaced through it.

Replacement and Maintenance Guidance

The A20B-2901-0700 is an SMD plug-in module — it is removed by lifting it from its socket and replaced by pressing the new module firmly into the socket.

ESD precautions are essential during this process: CMOS circuits in the module are sensitive to electrostatic discharge, and mishandling during module swap can damage both the new and old modules.

Module installation does not require parameter changes, as the servo interface module itself does not store machine-specific data — the servo parameters reside in the SRAM on the RAM module.

After installing the replacement A20B-2901-0700, the system should be powered on and servo axes homed to verify correct feedback processing before returning the machine to production.

FAQ

Q1: The CNC shows a servo alarm on all axes simultaneously after a power event. The servo amplifiers show their ready state but axis motion is impossible. Could the A20B-2901-0700 be the cause?

Simultaneous servo alarms across all axes, with servo amplifiers confirmed ready, points to a fault in the common servo feedback path — the A20B-2901-0700 is the common element for encoder feedback processing.

Check the module's seating in its socket first — ESD events can cause intermittent contact issues. If reseating does not clear the alarms, the module may have failed and requires replacement.

Q2: The servo interface module position shows "N/A" in the FANUC system configuration screen. Is the A20B-2901-0700 module missing or failed?

An "N/A" in the configuration screen for the servo interface position can indicate either a module that is not installed, a module with a contact problem at the SMD socket, or a failed module that the system cannot read.

Power down the system and check that the A20B-2901-0700 is correctly installed in its designated socket.

Look for bent or damaged socket pins and inspect the module's edge contacts for oxidation or contamination.

Q3: One specific axis shows a servo alarm while all other axes operate normally. The servo amplifier for that axis has been confirmed functional. Is the A20B-2901-0700 or the servo module more likely to be faulty?

A single-axis fault with the amplifier confirmed good points more strongly to the servo module (which handles per-axis DSP processing) rather than the servo interface module (which is common to all axes).

If the servo module cannot be replaced first, try reassigning the affected axis to a different axis channel in the CNC parameters — if the fault moves with the parameter change, it is a control-side fault; if it stays on the physical axis, it is an amplifier, cable, or motor-side fault.

Q4: When replacing the A20B-2901-0700, is there any risk of introducing a software incompatibility if the replacement module is from a different production lot?

The A20B-2901-0700 is a hardware interface module without firmware — it does not contain programmable logic that needs to match a specific CNC software version. Replacement modules from different production lots are functionally interchangeable.

The module's role is purely hardware signal interfacing, and compatibility is determined by the physical interface specification, not by any software version relationship.

Q5: The A20B-2901-0700 is listed as a servo interface for Series 16/18/20/21. Does this include the FANUC Series 16-A, 16-B, and 16-C variants, or is it specific to one sub-version?

The A20B-2901-0700 module's compatibility across Series 16/18/20/21 sub-variants depends on the specific main CPU board type and the SMD socket configuration for the servo interface position in that board. Not all variants of Series 16 use the same SMD socket architecture.

Verify against the hardware manual for the specific control type (e.g., 16-B, 16-C, 18-C) to confirm that the A20B-2901-0700 is the correct module for the servo interface position in that specific control configuration before ordering.
