A20B-2901-0765 | FANUC Series 21 Memory and Spindle Module — 0K SRAM / FROM / Serial Spindle Interface / FS-21 Plug-In

The Memory and Spindle Module in Series 21 Architecture

Within the FANUC Series 20/21 CNC hardware architecture, the main CPU unit accommodates a set of plug-in modules that define the system's specific capabilities. These modules slot into defined positions on the CPU board, each adding a specific combination of memory resources and interface functions.

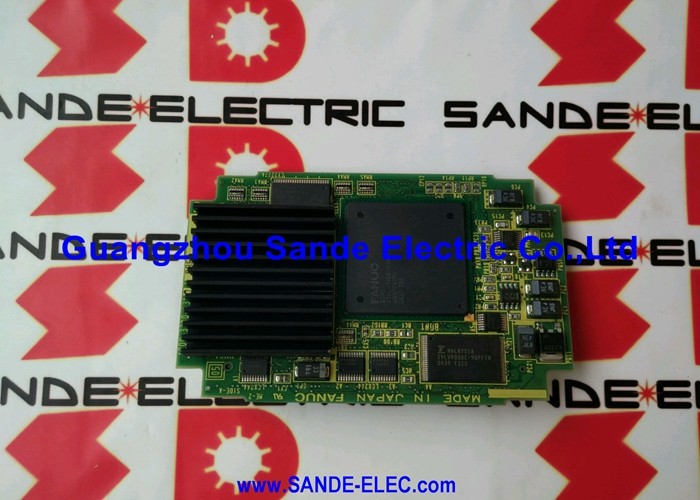

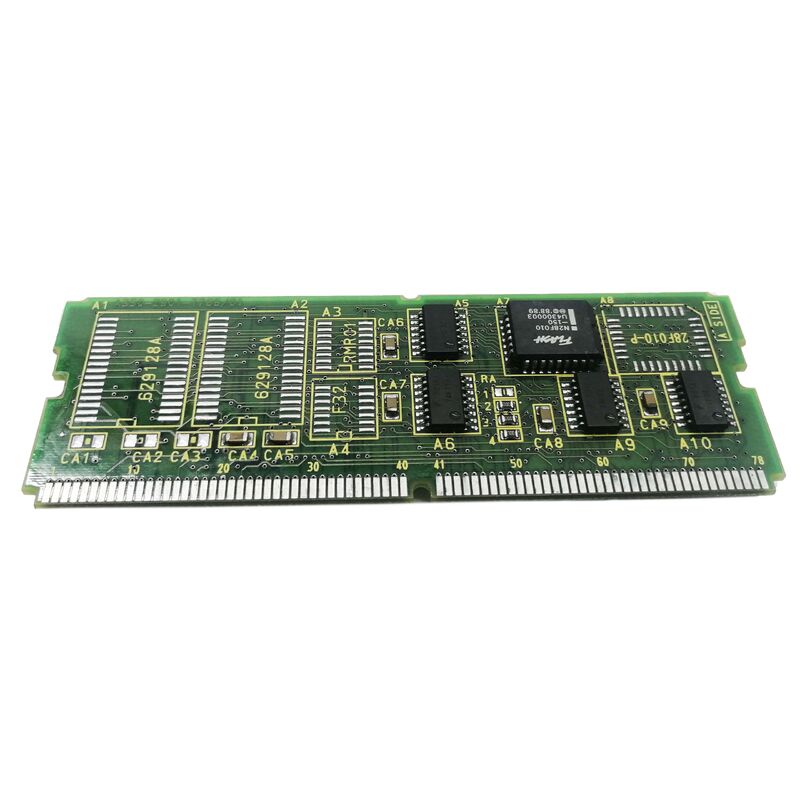

The A20B-2901-0765 is the Memory and Spindle Module — combining two functions in one plug-in:

FROM (Flash ROM): The Flash ROM portion stores the CNC system software — the operating firmware that defines the CNC's G-code capabilities, display functions, servo coordination, and all CNC features. The FROM retains its contents without power (non-volatile), so the CNC software remains intact when the machine is powered off.

Serial Spindle Interface: The serial spindle portion provides the digital communication interface between the CNC's main CPU and the machine's spindle drive. The serial interface carries spindle speed commands, feedback data, and status signals between the CNC and the spindle amplifier over a dedicated serial link.

Key Specifications

0K SRAM — No Onboard Battery-Backed RAM

The "0K SRAM" designation means this module does not include any battery-backed SRAM. In the Series 20/21 CNC, SRAM is used for CNC parameter storage and programme retention. Systems using the A20B-2901-0765 source their SRAM from a separate RAM module — such as the A20B-2901-0711 class RAM modules — rather than combining it in this plug-in.

The A20B-2901-0765 is compared within its module family:

The 0765 is the zero-SRAM, serial spindle variant — matched to Series 21 configurations that source SRAM elsewhere and use serial spindle drives.

Application Scenarios

Series 21 CNC replacement: A FANUC FS-21 CNC system requires a replacement memory and spindle module. The installed machine uses digital serial spindle drives. The A20B-2901-0765 (serial spindle variant) is the correct replacement — not the analogue version (0764).

Serial spindle interface fault: A Series 21 CNC develops a spindle communication alarm with confirmed-intact spindle drive and motor. The A20B-2901-0765 is identified as the failed module. Replacement restores serial spindle communication.

FAQ

Q1: Does A20B-2901-0765 require a separate RAM module in the Series 21 system?

Yes. Because A20B-2901-0765 has 0K SRAM, CNC parameters and stored programmes are held in a separate RAM module (such as A20B-2901-0711 class modules) installed in a different slot on the Series 21 main CPU. The memory and spindle module and the RAM module work together — neither alone provides the complete memory resource the CNC needs.

Q2: Can A20B-2901-0765 replace A20B-2901-0764 (analogue spindle variant) in the same system?

Only if the machine's spindle drive is changed simultaneously to a serial interface type. The analogue and serial spindle interfaces are fundamentally different — fitting a serial spindle module (0765) when the spindle amplifier expects an analogue voltage command will result in no spindle control. The spindle variant (serial or analogue) must match the installed spindle drive.

Q3: Does the FROM on A20B-2901-0765 contain the CNC software, or does this need to be programmed after installation?

In normal operation, the FROM on this module comes pre-programmed with the CNC system software from the original installation. A replacement module sourced from the same CNC generation will contain compatible software. A blank or incompatible FROM requires CNC software reloading from an original FANUC installation disc or backup file — typically requiring FANUC technical support access.

Q4: What ESD precautions apply to A20B-2901-0765?

Handle with a grounded anti-static wrist strap. Store in original or equivalent anti-static packaging. The SMD construction of this module makes its ICs sensitive to electrostatic discharge. Avoid contact with component surfaces. Power the CNC down completely before accessing the CPU unit to remove or install modules.
