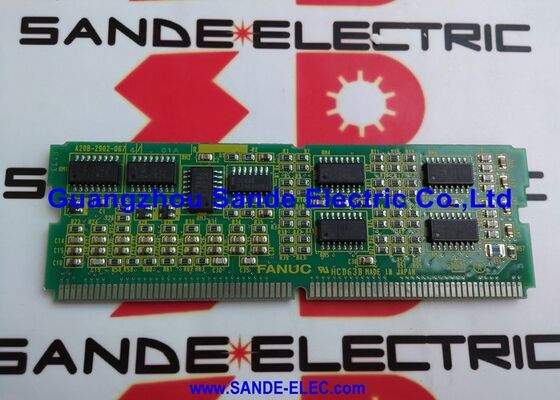

The FANUC A20B-2901-0810 belongs to one of the most functionally varied families in FANUC's spare parts catalogue — the A20B-2901 plug-in module series.
Understanding this product requires understanding why FANUC's CNC controller architecture relies so heavily on plug-in modules rather than integrating all functions onto a single large board.
FANUC's modular approach — placing different functional capabilities on separate plug-in SMD boards that install into the main CPU motherboard — provides several practical advantages that matter enormously in the CNC machine tool industry.
First, different machine configurations require different capabilities: a 2-axis lathe needs a very different memory allocation and spindle interface compared to a 5-axis machining centre, yet both use the same main CPU board family.
By swapping which plug-in modules are installed, a single main CPU board variant can support a wide range of machine configurations. Second, when a specific function fails, only the module responsible needs replacement — not the entire motherboard.
Third, capability expansion (adding a serial spindle interface to a machine that originally had an analogue interface, for example) can be accomplished by changing a single plug-in module rather than replacing the entire main board.
The A20B-2901 module family covers: RAM modules (SRAM + DRAM combinations in various capacities for the Series 20/21 generation), FROM modules (non-volatile flash storage), servo control modules, servo interface modules, spindle control modules (both analogue and serial types), PMC modules, and CRT control modules.
The A20B-2901-0810 occupies a specific position within this functional range, providing its designated control function as a plug-in addition to the main CPU board's baseline hardware.
| Parameter | Value |
|---|---|
| Series | A20B-2901 |
| Construction | Surface-mount SMD module |
| Installation | Plug-in to main CPU motherboard |
| Interface | Connector-based to main board |
| Origin | Japan |
In a production machine tool environment, understanding the plug-in module architecture of a FANUC CNC directly affects how quickly a fault can be isolated and resolved.
The main CPU board and its plug-in modules form a tightly integrated system — when a fault occurs, the question of which component has failed determines whether the repair is a quick module swap or a complete main board replacement.
FANUC's diagnostic system helps narrow this down. When the CNC powers up, the processor executes a self-test sequence that checks the function of each installed module.
The result of this test is reported through the LED array on the main CPU board's face and through alarm codes on the operator panel display.
An alarm code in the system startup sequence — before the CNC has even reached its normal operating state — often indicates a module-level fault that can be isolated to a specific socket position on the main board.
Module-level faults visible in this way include: memory parity errors (indicating a failed SRAM or DRAM module), FROM checksum errors (indicating corrupted or failed flash ROM), servo module faults (indicating a failed servo control module that prevents servo system initialisation), and spindle module faults (preventing spindle serial communication from establishing). The specific fault code and the socket position of the offending module together give the maintenance engineer a precise target for replacement.
The A20B-2901-0810, like all FANUC plug-in SMD modules, contains CMOS integrated circuits that are sensitive to electrostatic discharge.
Mishandling of these modules — even brief contact with a charged surface — can cause immediate or latent ESD damage that shortens the module's operational life or causes intermittent failures that are extremely difficult to diagnose.
Every handling step requires attention to ESD protection: the module should be stored in its original antistatic bag until the moment of installation; the engineer should wear an earthed wrist strap and work on an ESD-safe mat; the module should only be touched at its edge, away from any component surfaces; the module should be inserted gently and evenly into its socket, avoiding any rocking motion that could stress the connector pins; and the machine should be fully powered down before any module insertion or removal.
Battery-backed SRAM modules — those within the A20B-2901 family that contain battery-backed static RAM — carry an additional installation requirement: if the module contains data that must be preserved (machine parameters, part programmes, PMC ladder), the module must be handled with the machine powered on during the transfer to ensure the SRAM retains its battery backup throughout the process.
Powering down the machine before removing a battery-backed SRAM module causes the data to depend entirely on the battery, which may not provide full retention if the battery is already partially depleted.
Q1: How is the A20B-2901-0810 confirmed as the cause of a specific CNC alarm, rather than the main board?
Start with the alarm code and the LED states on the main CPU board at the time the alarm appears. Module-specific alarms in the FANUC Series 16/18/20/21 generation typically appear during the CNC startup sequence as system alarms (900-series) that identify which subsystem has failed.
The LED array on the main board's face provides a visual indication of which functional block is in fault. Cross-referencing the alarm code against the controller's maintenance manual identifies which plug-in module is implicated.
A definitive confirmation is to replace the suspect module with a known-good unit and observe whether the alarm clears.
Q2: Can A20B-2901 modules from different FANUC CNC generations be interchanged?
No. Modules within the A20B-2901 family are specific to the CNC generation and the main board variant they are designed for.
The connector type, the module's physical dimensions, and the signal protocol on the connector differ between generations.
A module from a Series 20 system cannot be installed in a Series 16 system, and a module from a Series 16A system may not be compatible with a Series 16C system even if the physical connector appears similar.
Always confirm the module's compatibility with the specific main board and CNC software version before purchasing or installing a replacement.
Q3: The module is installed but the CNC continues to show a module-type alarm. What should be checked?
First verify that the module is fully and correctly seated — an incompletely seated module produces the same alarm as a failed module. Remove and reseat the module with firm, even pressure, confirming that the connector is fully engaged.
Second, inspect the socket on the main board for bent or contaminated contacts.
Third, if a battery-backed SRAM module is involved, check the SRAM battery voltage — a depleted battery may allow the module to operate but generate a low-battery alarm that presents as a module fault.
Fourth, check for system software compatibility — a module with a software version incompatible with the installed CNC system software may generate version mismatch alarms on initialisation.
Q4: Should the CNC parameters be backed up before replacing an A20B-2901 module?
This depends on which type of module is being replaced.
If replacing a battery-backed SRAM module, all data stored in that SRAM — machine parameters, part programmes, PMC data, work offsets — must be backed up before removal, as replacement with a new module means starting with blank memory.
If replacing a FROM module (non-volatile flash), the system software and option registration data are lost and must be reloaded.
If replacing a servo control module or spindle module that contains no user data, no backup is needed before replacement.
Confirm the module type and its data storage role before proceeding.
Q5: Is it possible to repair the A20B-2901-0810 at component level rather than replacing it?
Component-level repair is technically feasible for experienced FANUC repair centres with appropriate SMD rework tools and test equipment — the module is an SMT board with replaceable ICs and discrete components.
The practical feasibility depends on the specific failure mode.
Failed memory ICs (if the module contains memory), cracked solder joints from thermal cycling, and ESD-damaged input protection circuits are all repairable at component level.
Failed processor ICs or gate arrays that are no longer available as individual components are not practically repairable.
For A20B-2901 modules, a tested replacement module from the surplus market is often more cost-effective than component-level repair, particularly when machine downtime costs are factored in.
