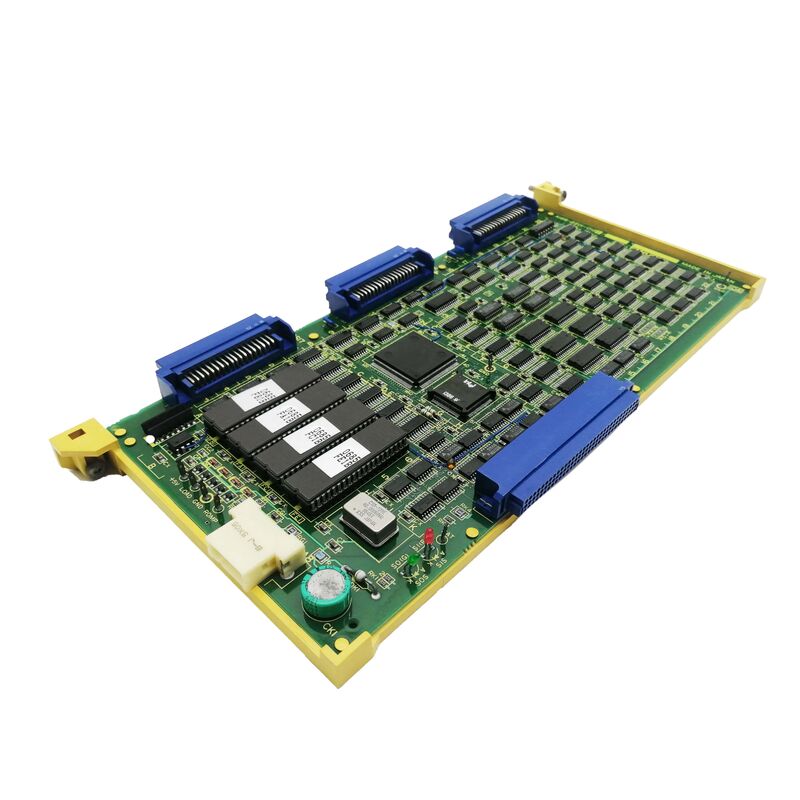

A16B-1212-0221 Fanuc PCB Board A16B12120221 AI6B-I2I2-O22I

A16B-1212-0221 | FANUC Series 0-C I/O Card C6 — Old Specification / Superseded by A16B-2203-0111 / Machine I/O Interface

I/O Card C6 — The Series 0-C Machine Interface

The A16B-1212-0221 is the "I/O Card C6" for the FANUC Series 0-C CNC. 's Series 0-C hardware reference table confirms: "A16B-1212-0221 (OLD) I/O Card C6 / A16B-2203-0111 (NEW) Replaces A16B-1212-0221." In FANUC's Series 0-C architecture, I/O cards serve as the interface between the PMC's ladder programme and the machine tool's physical I/O signals — switches, solenoids, lamps, relays, and other machine-level electrical devices. The "C6" designation identifies a specific I/O card configuration within the Series 0-C I/O card family.

Key Product Information

I/O Cards and the PMC Ladder Programme

The I/O Card C6 connects to the Series 0-C's PMC (Programmable Machine Controller) via the I/O Link serial bus. Each I/O card provides: Input scan: The PMC reads the state of each physical input — pushbuttons, limit switches, proximity sensors — from the I/O card at each PMC scan cycle. The card converts the machine's 24VDC signal levels to the PMC's internal logic representation.

Output drive: The PMC writes its output commands — coolant on/off, tool changer index, door lock, alarm lamps — to the I/O card's output registers. The card drives the corresponding 24VDC output signals to the machine's actuators. When the I/O Card C6 fails, the PMC can no longer communicate with the machine I/O signals it services — the machine stops responding to operator commands and the PMC generates I/O Link communication alarms.

Application Scenarios

Series 0-C CNC I/O communication fault: A FANUC Series 0-C CNC develops PMC alarms for specific I/O Link communication groups. Machine functions (coolant, hydraulics, operator panel) stop responding. The A16B-1212-0221 is identified. Replacement with A16B-1212-0221 or A16B-2203-0111 restores I/O communication. 0-C CNC I/O card stock

replacement: A facility maintaining Series 0-C CNCs holds A16B-2203-0111 (new spec) as its standard spare but also accepts A16B-1212-0221 surplus units for the same I/O Card C6 position.

FAQ

Q1: Can A16B-2203-0111 directly replace A16B-1212-0221 in a Series 0-C CNC?

Yes. A16B-2203-0111 as the official "NEW" replacement for A16B-1212-0221 (I/O Card C6). The new specification board is designed as a direct-fit replacement for the old specification in the same CNC slot position.

Q2: What is the difference between I/O Card C5 (A16B-1212-0222), C6 (A16B-1212-0221), and C7 (A16B-1212-0220)?

The C5, C6, and C7 designations identify different I/O capacity or address configuration variants within the Series 0-C I/O card family. Each variant provides a specific number of I/O points or a specific I/O Link address range. The applicable variant is determined by the specific machine tool configuration and wiring scheme.

Q3: Does the I/O Card C6 designation relate to the machine I/O count?

The "C" prefix and number in FANUC's Series 0-C I/O card naming identifies the I/O card type within the platform's I/O architecture. Each C-type variant (C5, C6, C7) provides a defined I/O point complement. The C7 variant (A16B-1212-0220) is the most commonly referenced in FANUC Series 0-C system diagrams — C5 and C6 serve machines with different I/O configurations.

Q4: Does replacing A16B-1212-0221 require PMC parameter changes?

No. PMC parameters and the I/O Link address configuration are stored in the CNC's main memory — not in the I/O card. After fitting the replacement, the PMC re-establishes I/O Link communication with the new card using the existing configuration.
