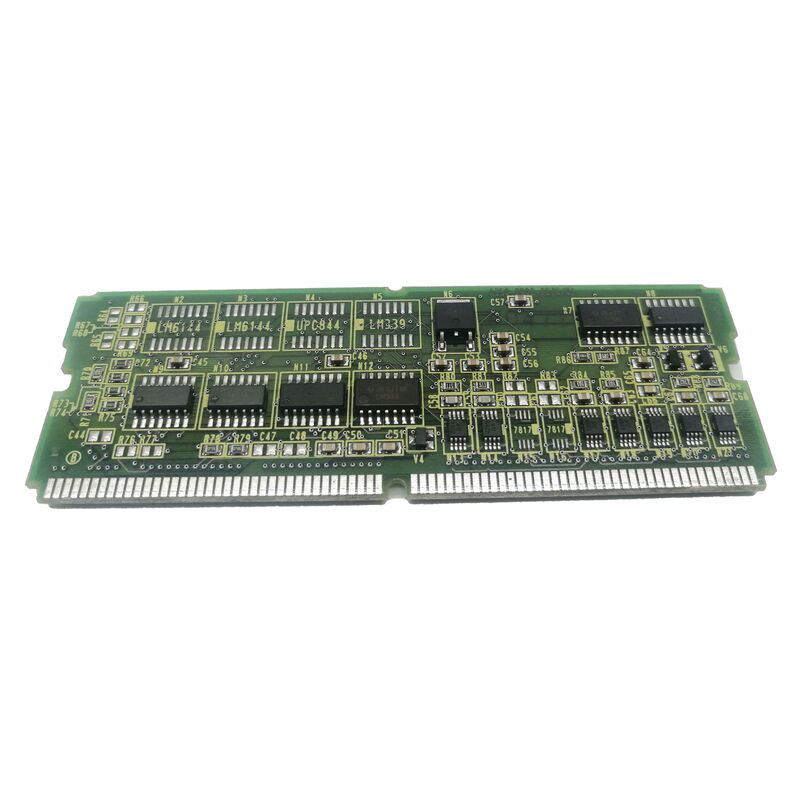

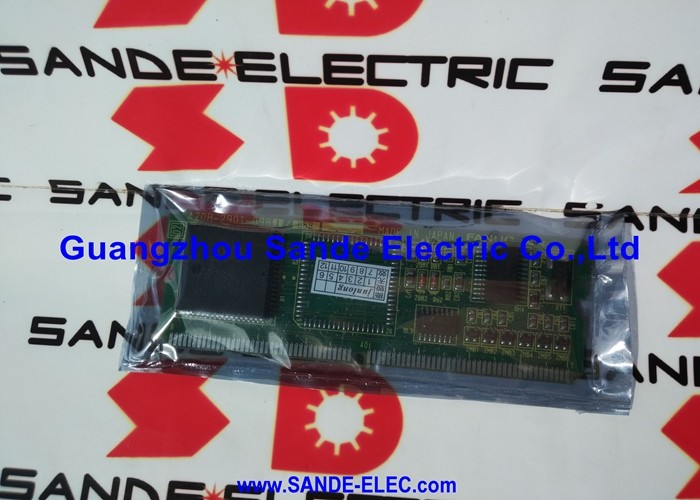

Fanuc A20B-2902-0225 Daughter Pc Board A2OB-29O2-O225 A20B29020225

FANUC A20B-2902-0225 | SRAM Module with Serial Spindle Interface — A20B-2902 Series CNC Memory PCB

Not Just an SRAM Module

The A20B-2902-0225 is described in FANUC Power Mate D/F maintenance documentation as a memory module assembly with serial spindle support. The serial spindle designation distinguishes this module from other A20B-2902 SRAM variants that cover memory functions only. This board sits at the intersection of two functions: it provides the battery-backed SRAM that stores CNC parameters and programs, and it includes the hardware interface for the serial spindle communication path in the specific control configuration it supports.

The SRAM stores data that must survive between power cycles: CNC parameters, tool offsets, part programs, work coordinate data. A backup battery maintains a trickle current through the SRAM cells when the control is powered off. When the battery depletes below the retention voltage, all stored content is lost. The serial spindle interface on this module connects the controller to the spindle drive amplifier using FANUC's serial communication protocol — replacing this module with a standard SRAM variant that lacks the serial spindle hardware produces a configuration mismatch that affects spindle communication

Key Specifications

Replacement Requires Data Reload

Unlike passive backplane PCBs, this module stores the data the machine runs by. Replacement planning must include these steps in order:

1. Secure a verified backup of all CNC data — parameters, part programs, tool offsets, PMC data — before removing the installed module. If the installed module is still partially functional, extract its data now. If it has already failed, restore from the most recent available backup.
2. Confirm the replacement matches the full part number A20B-2902-0225 — adjacent A20B-2902 series variants differ in SRAM capacity, hardware features, or target control platform. A nearby number may fit the socket but lack the serial spindle interface or carry different memory capacity.
3. After installation, reload all parameters and programs — the replacement module arrives blank. The machine cannot run until data is restored.

The combination of SRAM content dependency and serial spindle hardware means this replacement has more steps than a standard board swap. Planning the data side before removing the original board determines whether the machine returns to production in hours or days.

A20B-2902 Series — Exact Part Number Required

The A20B-2902 family spans a large range of memory and function modules for FANUC CNC systems. Variants differ in FROM and SRAM capacity, additional hardware interfaces (such as the serial spindle interface on the -0225), and target control platform. Physical similarity between adjacent numbers in this family is common; functional compatibility is not guaranteed. Always confirm the installed board's label shows A20B-2902-0225 before sourcing a replacement.

FAQ

Q1: What makes the A20B-2902-0225 different from a standard SRAM module?

The serial spindle interface. Standard A20B-2902 SRAM variants cover battery-backed CNC memory without additional hardware interfaces. The -0225 includes the hardware interface for FANUC's serial spindle communication path. In control configurations that use serial spindle communication, replacing with a module that lacks this interface produces a spindle communication fault regardless of whether the memory functions correctly.

Q2: Why must parameters and programs be reloaded after replacement?

The SRAM module stores all CNC operating data — parameters, part programs, tool offsets, work coordinates. A replacement module arrives completely blank. The machine cannot run correctly until all data is restored from backup. This is not optional post-installation verification; it is the essential step that makes the replacement functional.

Q3: The installed A20B-2902-0225 has partially failed. Can data still be extracted before replacement?

In many cases yes, even from a partially failed module. The CNC's data backup function (accessible from the MDI panel) should be attempted with the original module still installed. If the module is too degraded for a full backup, attempt individual data transfers — parameters, then programs, then tool data. Any data extracted before removal reduces the recovery burden after the new module is installed.

Q4: What battery is used for SRAM retention and when does it need replacing?

The backup battery is typically a lithium coin cell or a lithium AA-type cell depending on the controller model. FANUC CNC systems generate a low-battery alarm before the battery reaches the critical retention voltage. Replace the battery with the controller powered on to maintain SRAM content during the change. A fully depleted battery with the controller powered off results in complete SRAM data loss.

Q5: Can a different A20B-2902 variant substitute if -0225 is unavailable?

Not without confirmed compatibility. Adjacent A20B-2902 numbers may have different SRAM capacity, different hardware features, or target different control platforms. A module without the serial spindle interface cannot provide the same control configuration. Source the -0225 specifically, or confirm with a FANUC service resource that the proposed substitute includes equivalent serial spindle hardware support.
