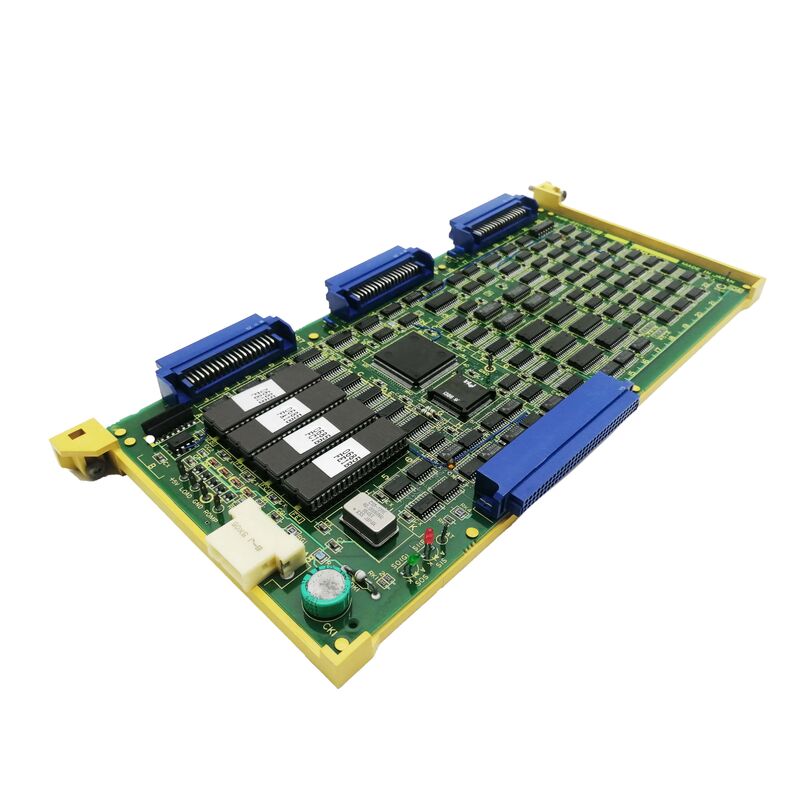

A16B-2200-0320 Fanuc PCB Board A16B22000320 AI6B-22OO-O32O

A16B-2200 — A Series Spanning CNC and Robot Functions

The A16B-2200 series is one of FANUC's most functionally diverse PCB families — confirmed throughout this session to cover boards for CNC main control, robot axis control, option expansion, and PMC (Programmable Machine Controller) functions across multiple FANUC product generations.

Confirmed boards from this session span the full range of the series:

The A16B-2200-0320 occupies the 032x position — between the established PMC/I/O boards (034x) and before the robot axis and CNC main board groups (085x–091x).

This positions it within the FANUC hardware architecture of the Series 16/18/21 and related control system era.

Key Product Information

A16B-2200 in the Series 16 Control Architecture

Series 16-A main board (A16B-2200-0900): "Part of the first wave of 16, 18 and 21 control systems." This places the entire A16B-2200 series in the foundational layer of FANUC's Series 16, 18, and 21 CNC control architecture.

The 032x position of the A16B-2200-0320 within this series — early in the numbering sequence — suggests it may serve a foundational control function within the Series 16/18/21 system architecture. FANUC's board numbering within a series often proceeds from more fundamental (lower numbers) to more specialised (higher numbers) boards.

Common board functions in the 03xx zone of the A16B-2200 series include:

PMC and I/O functions: The 034x range includes PMC-M I/O Link ROM master boards — the close proximity of 032x suggests a related I/O or PMC function.

Sub-CPU and communication boards: Earlier Series 16/18 systems used multiple boards for CPU and communication tasks — the 032x board may serve one of these defined functional roles.

Application Scenarios

CNC control board fault: A FANUC CNC or automation system develops a fault traceable to the A16B-2200-0320. The board is identified from its part number label.

Replacement restores the system's control function.

Preventive spare inventory: A production facility running Series 16/18/21 era CNCs maintains A16B-2200-0320 as a spare for rapid fault response.

FAQ

Q1: How do I confirm A16B-2200-0320 is the correct board for my FANUC system?

Read the part number from the installed board label. If it reads A16B-2200-0320, this is the confirmed replacement.

Cross-reference with the spare parts table in the applicable FANUC Series 16/18 maintenance manual to confirm the board's functional role and slot position.

Q2: Does A16B-2200-0320 serve CNC or robot controller applications?

The A16B-2200 series serves both CNC and robot applications — confirmed by A16B-2200-0854 (robot axis board) and A16B-2200-0900 (Series 16-A main CPU). The 032x position's specific application is confirmed from the host system's documentation.

Q3: Does replacing A16B-2200-0320 require CNC data backup?

This depends on the board's functional role.

Boards that carry memory (SRAM, FROM) or active CNC configuration data require backup before replacement.

Interface and logic boards typically require no data backup.

Confirm from the board's functional description in the applicable maintenance manual.

Q4: What ESD precautions apply to A16B-2200-0320?

Handle with a grounded anti-static wrist strap on an ESD-safe surface.

Store and transport in anti-static packaging.

Power down the CNC or controller completely before accessing any internal boards.
