A20B-3300-0362 | FANUC Display Control Module — CNC Operator Interface / Display Driver / A20B-3300-036x Series

Display Control Module — Dedicated Display Processing

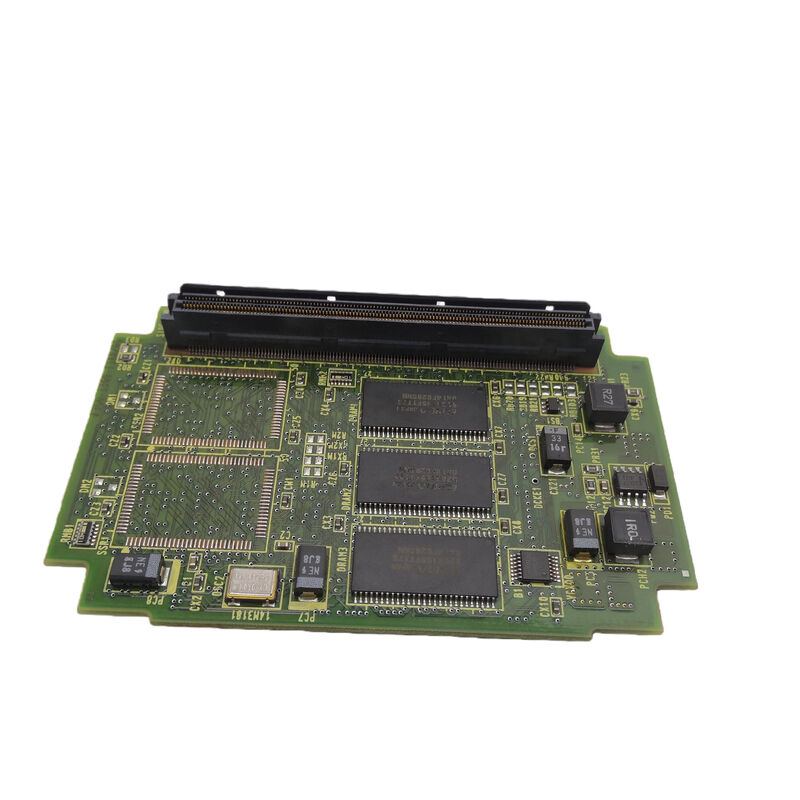

The A20B-3300-0362 is a Display Control Module — a dedicated plug-in card that manages the CNC's operator display interface. Rather than burdening the main CPU module with display management, FANUC's architecture assigns display control to a dedicated module.

This separation provides important operational benefits:

Independent display bandwidth: The main CPU can focus entirely on motion interpolation, servo coordination, and PMC execution without sharing processing resources with display refresh and screen management.

Stable operator interface: Even when the CNC's motion system is at maximum computational load — complex 5-axis contouring, multi-axis look-ahead, rapid block processing — the display module maintains smooth screen updates and responsive key input handling.

Modular fault isolation: If the display module develops a fault, the CNC's machining capability is not affected. Conversely, a main CPU fault can be diagnosed through a functioning display module that may continue providing alarm and status information.

Key Product Information

A20B-3300-036x — Display Control Architecture

Within the A20B-3300 series, the 036x range groups display-related control modules. The A20B-3300-0362 is the display control module within this group — managing the data flow from the CNC's software-generated screen content to the physical operator display hardware.

Display control in a FANUC CNC involves several layers:

Video generation: Converting the CNC's internal display data — text characters, graphics primitives, cursor position — into the video signal format that the LCD display panel's controller expects.

Character and graphics rendering: The display module may contain the ROM-based character set used for CNC text display, and the graphics rendering logic for graphical elements (axes position graphics, alarm indicators, on-screen buttons).

Display sync: Generating the horizontal and vertical synchronisation signals that maintain stable display timing — ensuring each line of pixels is written at the correct position within the display frame.

Key input processing: The operator keyboard's key matrix scans are often managed by the display unit's controller — the display module may process key scan data and pass decoded key codes to the main CPU.

Application Scenarios

CNC display fault: A FANUC CNC develops display problems — distorted screen, incorrect character display, or display loss while the CNC continues machining. The A20B-3300-0362 display control module is identified as the fault. Replacement restores correct display function.

Display system maintenance: A FANUC CNC control system undergoes electronic maintenance. The A20B-3300-0362 display control module is replaced alongside other aging control modules.

FAQ

Q1: Does A20B-3300-0362 failure affect CNC machining capability?

The display control module handles the operator interface — the screen and keyboard functions. If it fails, the operator loses the visual interface but the CNC's core machining functions (programme execution, servo control, PMC) continue on the main CPU module. In practice, safe operation is impossible without a working display, but the machine does not mechanically stop due to display module failure.

Q2: What FANUC CNC models use A20B-3300-0362?

The A20B-3300 display control modules serve various FANUC CNC generations that use the modular display controller architecture. Confirm the specific CNC model from the applicable FANUC CNC hardware manual's spare parts table.

Q3: Does replacing A20B-3300-0362 require any software configuration?

The display control module is a hardware interface board — it typically requires no software configuration after replacement. The display function restores automatically when the replacement module is fitted and the system powers up. Confirm from the applicable FANUC service documentation.

Q4: What is the relationship between A20B-3300-0362 and the GUI module (A20B-3300-0551)?

The GUI module (A20B-3300-0551) provides high-performance graphics processing with 128MB DRAM for advanced display and PC function. The A20B-3300-0362 is a display control module in the 036x range — an earlier or different-tier display interface architecture. They represent different display management approaches for different FANUC CNC generations or configurations.
