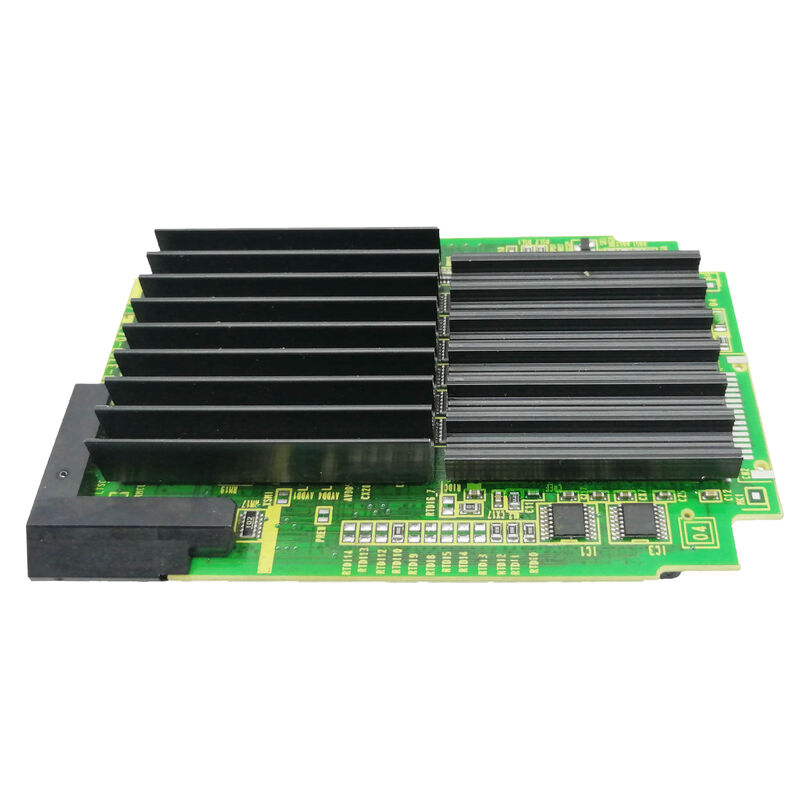

A20B-3300-0442 Fanuc PCB Board A20B33000442 A2OB-33OO-O442

A20B-3300-0442 | FANUC FSSB 2-Path 16-Axis Servo Module B24 — High-Axis Multi-Path CNC / 30i/31i/32i / A20B-3300 Series

16 Axes Across 2 Paths — The High-Axis CNC Module

The A20B-3300-0442 combines the highest axis count in the 044x family (16 axes) with the 2-path architecture. This combination identifies it as the module for the most demanding CNC machine tool configurations — those where a 2-path CNC simultaneously controls many servo axes.

16 axes distributed across 2 paths typically means:

• Path 1: Up to 8 axes — main spindle servo, turret, Z-axis, X-axis, Y-axis, C-axis, and auxiliary servo functions
• Path 2: Up to 8 axes — subspindle, second turret, additional positioning axes, and secondary servo functions Together, all 16 axes are coordinated through the A20B-3300-0442's dual-path FSSB communication — a density of servo axis management achievable only with the advanced DSP processing in this module.

Key Specifications

FSSB Data Density — Coordinating 16 Drives per Cycle

Managing 16 drives in a 2-path FSSB configuration within each servo interpolation cycle requires significant data bandwidth and processing: Each FSSB cycle must:

1. Transmit position commands to 16 individual drives (split across 2 FSSB daisy chains)
2. Receive encoder feedback from 16 individual drives
3. Synchronise the data between Path 1 and Path 2 to maintain multi-path programme coordination The A20B-3300-0442's DSP-based processing handles this complete 16-axis, 2-path FSSB transaction within the interpolation period — delivering the servo update rate needed for smooth, precise motion across all 16 axes simultaneously.

Application Scenarios

Complex turn-mill centre servo module fault: A FANUC 30i-controlled turning-milling centre with dual turrets, dual spindles, Y-axes, and C-axes develops FSSB alarms across multiple axes. The A20B-3300-0442 is identified as the fault. Replacement restores 16-axis 2-path FSSB communication.

FMS servo expansion: A flexible manufacturing system's FANUC CNC adds new servo axes for an additional machining station. The A20B-3300-0442's 16-axis capacity provides headroom for the expanded axis complement.

FAQ

Q1: How are 16 axes distributed between the 2 paths in the B24 module?

The axis-to-path assignment is configured through the CNC's system parameters — not hardwired in the module. Typically, 8 axes are assigned to each path, though an uneven split (e.g., 10+6) is possible depending on the machine configuration. The module provides 16 total FSSB-managed axes; the path assignment is a software configuration.

Q2: Is A20B-3300-0442 the highest-axis FSSB module in the FANUC 30i ecosystem?

Among the A20B-3300-044x family confirmed in this session, A20B-3300-0442 at 16 axes is the highest specified. The broader A20B-3300 family includes modules with up to 36 axes for later robot controller generations (R-30iB Plus: A20B-3300-0815), but these serve different platforms. Confirm the applicable maximum for the specific 30i/31i/32i CNC from the hardware documentation.

Q3: Does replacing A20B-3300-0442 require servo parameter re-entry across all 16 axes?

No. All 16 axis servo parameters reside in the CNC's main SRAM. The CNC reloads them automatically after fitting the replacement. Verify servo response at low speed on all 16 axes across both programme paths before returning to full production.

Q4: Can A20B-3300-0442 be used to upgrade a 30i CNC from a lower-axis FSSB module?

The 30i CNC's maximum axis count is also limited by software options and the main board specification — not solely by the FSSB module. Whether fitting A20B-3300-0442 unlocks additional axes beyond those currently active depends on the CNC's software option configuration. Consult the FANUC 30i-series hardware documentation for the axis expansion procedure.

Q5: What axis count is available per FSSB path in A20B-3300-0442?

With 16 total axes and 2 FSSB paths, the typical split provides up to 8 axes per path — one FSSB daisy chain per path. Each chain can connect multiple servo drive modules (SVM1, SVM2, SVM3) up to the 8-axis limit per chain. The exact configuration follows the FSSB axis assignment parameters.
