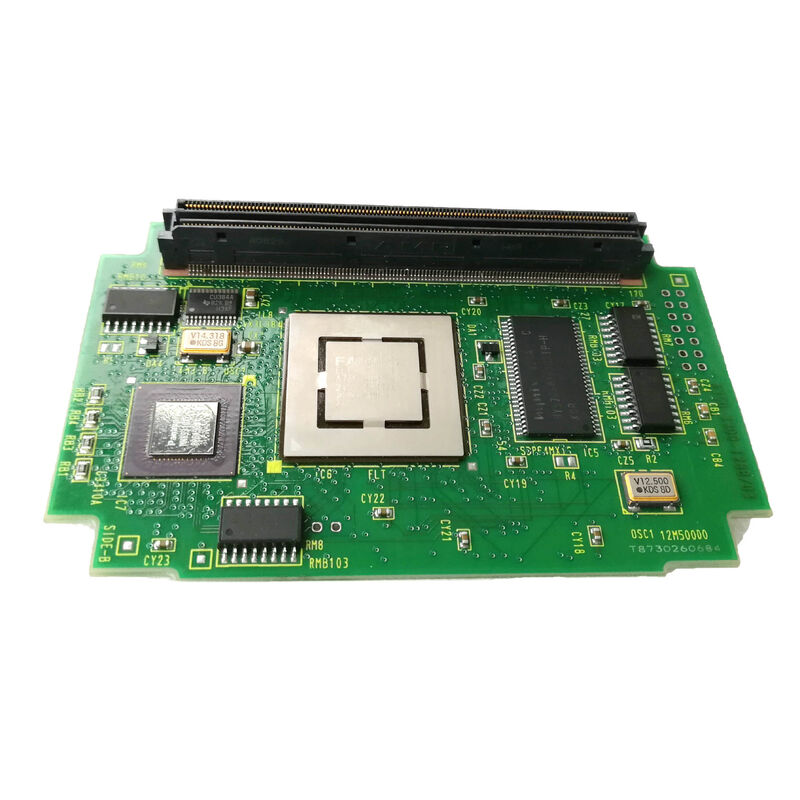

A20B-3300-0551 | FANUC Graphic User Interface Module — 128MB DRAM / GUI Processor Card / CNC Display and PC Function / A20B-3300 Series

GUI Module — Dedicated Graphics Processing

The A20B-3300-0551 is not a general-purpose CPU module — it is a Graphic User Interface module dedicated to display processing and graphical interface functions. While the CNC's main CPU module handles programme interpolation, axis control, and system coordination, the GUI module takes responsibility for the operator's visual interface.

This functional separation provides a critical architectural benefit: the operator's display experience remains smooth and responsive even when the CNC main CPU is heavily loaded with complex multi-axis calculations. Each processor handles its own domain without competing for processing time.

Key Specifications

A20B-3300 GUI Module vs CPU Module — Complementary Functions

The A20B-3300 series contains both general CPU modules (like the A20B-3300-0293 486 module and A20B-3300-0312 Pentium module described in this series) and specialised functional modules like the A20B-3300-0551.

The relationship within a CNC configuration:

Main CPU module: Programme execution, motion interpolation, PMC ladder, servo communication, system coordination.

GUI module (A20B-3300-0551): Display rendering, operator interface, graphical feedback, PC function applications.

Both plug into the same main board but serve independent processing domains. A fault in the GUI module can disrupt the operator display while the CNC continues machining — and vice versa.

Application Scenarios

GUI module fault on CNC with PC function: A FANUC CNC with PC function develops display problems — the graphical interface becomes slow, the tool path display fails to render, or the PC function crashes. The CNC continues machining normally. The A20B-3300-0551 GUI module is identified as the fault. Replacement restores display and PC function performance.

CNC display refurbishment: A FANUC CNC system's graphical display quality has degraded over years of service. The A20B-3300-0551 GUI module is replaced as part of a display system refresh.

FAQ

Q1: What CNC systems use the A20B-3300-0551 GUI module?

The A20B-3300-0551's 128MB DRAM capacity and "GUI Module" designation indicate a high-performance display-focused configuration — consistent with FANUC i-B generation CNC systems with PC function or high-resolution display options. Confirm the applicable CNC model from the host main board's hardware documentation.

Q2: Does replacing A20B-3300-0551 affect CNC parameters or part programmes?

No. CNC parameters and part programmes reside in SRAM and FROM memory modules on the main board — not in the GUI module. Replacing the A20B-3300-0551 does not affect these stored values. After fitting the replacement, the display and GUI functions restore. The CNC's machining capability was never affected by the GUI module fault.

Q3: What happens if the A20B-3300-0551 GUI module fails while the CNC is running a programme?

If the GUI module fails during production, the CNC's machining functions continue — the main CPU, servo axes, and PMC are unaffected. The operator display may become non-functional or erratic, making it impossible to monitor the programme or interact with the CNC from the operator panel. The machine should be stopped safely at the earliest opportunity to replace the faulty module.

Q4: Is 128MB sufficient for modern PC function applications?

The 128MB DRAM in A20B-3300-0551 was generous for the FANUC i-B generation's PC function. For the PC applications designed and qualified for this CNC generation, 128MB provides adequate memory. Running modern PC software not qualified for this FANUC CNC generation is not recommended regardless of available memory — use only FANUC-qualified and machine-builder-qualified software for the PC function.
