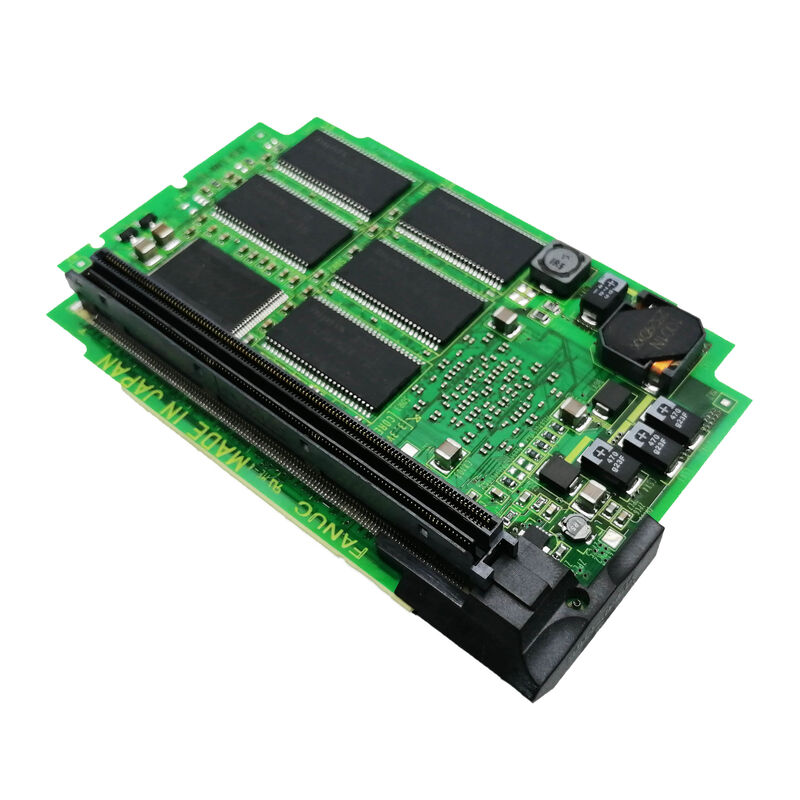

A20B-3300-0638 | FANUC Axis Card A2 — Series 0i-D / 4-Axis / HRV3-HRV2 / FSSB / 0i-TD and 0i-MD CNC

Axis Card A2 — The Servo Brain for Series 0i-D

The A20B-3300-0638 plugs directly into the Series 0i-D main board. It is the module that gives the 0i-D its servo axis intelligence — managing all FSSB communication to the servo drives and coordinating the current control parameters for every controlled axis.

KFAS LLC confirms: "A20B-3300-0638 is used in Fanuc 0i-Model D (0i-TD, 0i-MD) Maintenance Manual B-64305EN."

The 0i-D is the fourth-generation FANUC 0i CNC — the most widely deployed mid-range CNC platform for turning centres and machining centres in global manufacturing. Its servo performance directly impacts part quality and cycle time, making the axis card one of the most consequential boards in the CNC hardware stack.

Key Specifications

HRV3 and HRV2 — High Performance Servo Response

The A20B-3300-0638's support for both HRV3 and HRV2 is significant. HRV (High Response Vector) control determines the bandwidth of the servo current loop:

HRV2: Current loop updated at 62.5μs intervals — the standard high-response mode that replaced the earlier HRV1. Provides excellent servo stiffness for most CNC machining applications.

HRV3: Current loop updated at 31.25μs intervals — half the cycle time of HRV2, doubling the current loop update rate. This further increases servo stiffness, reduces position error under dynamic cutting forces, and improves surface finish quality at high feedrates.

For precision machining applications — tight-tolerance turning, high-speed die-and-mould milling — the availability of HRV3 on the A20B-3300-0638 makes the 0i-D capable of servo performance previously associated with higher-tier CNC platforms.

Application Scenarios

0i-TD CNC servo fault: A FANUC 0i-TD lathe develops FSSB communication alarms on one or more axes. The axis card A20B-3300-0638 is identified as the fault. Replacement restores FSSB servo communication for all four axis channels.

0i-MD machining centre axis card maintenance: A 0i-MD machining centre undergoes control system maintenance. The A20B-3300-0638 is replaced to restore the axis card to known-good condition.

FAQ

Q1: Is A20B-3300-0638 specific to the 0i-D, or also compatible with the 0i-C?

KFAS LLC confirms A20B-3300-0638 for 0i-Model D (0i-TD, 0i-MD) maintenance manual B-64305EN. The 0i-D and 0i-C use different main board hardware. Confirm from the 0i-C hardware documentation whether 0638 is specified for 0i-C applications before ordering for that platform.

Q2: What alarms indicate A20B-3300-0638 has failed?

FSSB communication alarms (SV0401, SV0446, and related FSSB error codes in the 0i-D alarm list) appearing on multiple axes simultaneously — particularly when servo drives and motors test correctly — point to the axis card as the fault source. Single-axis FSSB alarms may indicate a drive-side fault rather than the axis card.

Q3: Does replacing A20B-3300-0638 require any servo parameter changes?

No. The 0i-D's servo parameters (axis gains, HRV mode setting, motor type, encoder type) are stored in the CNC's main SRAM. After fitting A20B-3300-0638, the CNC re-establishes FSSB communication and applies existing servo parameters to all four axes automatically.

Q4: What is the difference between A20B-3300-0638 (Axis Card A2) and A20B-3300-0637 (Axis Card A3)?

JJ Automation confirms A20B-3300-0637 is Axis Card A3, managing axis control functions in Series 0i and Series 30i controllers. The A3 type serves a broader or more capable platform than the A2 type. The A2 (0638) is confirmed specifically for 0i-D (0i-TD/0i-MD). Confirm the installed card type from its label — do not substitute A3 for A2 or vice versa without verifying hardware compatibility.
