| Place of Origin | JAPAN |
| Brand Name | FANUC |
| Certification | CE ROHS |
| Model Number | A20B-3900-0074 |
Part Number: A20B-3900-0074

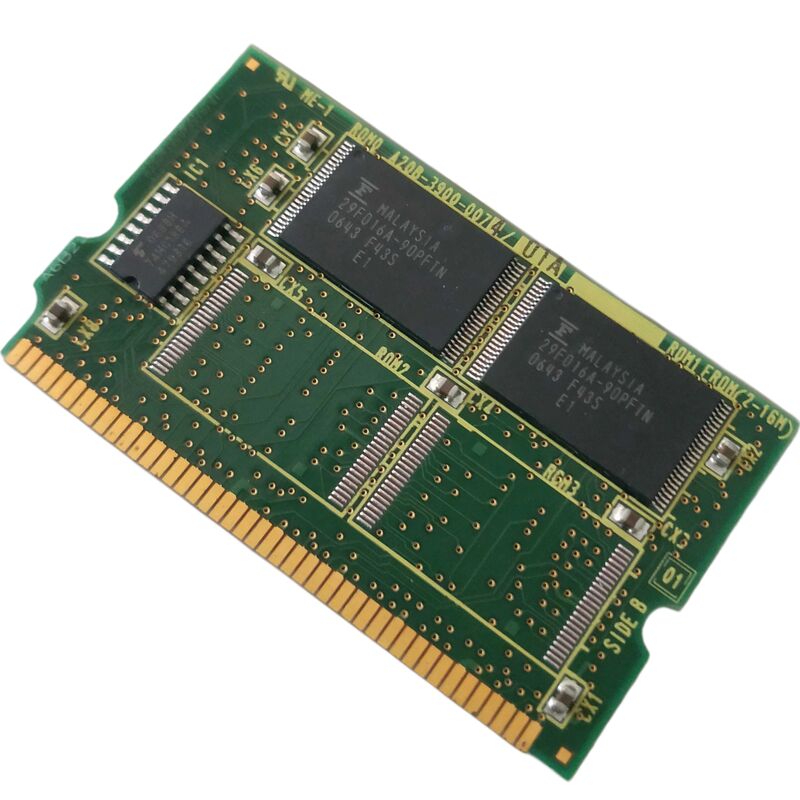

Revision: /01A (as found on board label)
Manufacturer: FANUC Corporation (Japan)
Product Type: F-ROM (Flash Read-Only Memory) DIMM Module
Series: A20B-3900
Memory Type: Flash ROM — non-volatile, no battery required
The A20B-3900-0074 is a FROM (Flash Read-Only Memory) module from FANUC's A20B-3900 series — the family of plug-in DIMM memory cards used in FANUC's i-Series CNC control architecture. This module plugs into the DIMM slot on the i-Series master board and stores the CNC's system software, servo control firmware, PMC programs, and related operating data.
Unlike the SRAM modules in the same controller — which hold machine parameters, tool offset tables, and part programs, and which require a backup battery to retain data through power cycles — the FROM module uses flash memory. Flash is non-volatile without a battery. Its contents survive complete power loss indefinitely, and failure is not associated with battery discharge. When a FROM module fails, the CNC typically shows a boot error or FROM parity alarm at power-on, because the control cannot successfully load its operating software into working RAM.
The A20B-3900 series spans multiple capacity variants, each identified by its four-digit suffix. The 0074 sits within this family; neighboring numbers (0071 = 12MB, 0075 = 2MB) confirm the series' range. The revision code /01A on the board label identifies the specific production revision — relevant when requesting a replacement of matching specification.
The FROM module stores the CNC's system software. When a replacement module is installed:
FROM replacement does not affect parameters, part programs, or tool offsets — those reside in the SRAM module.
| Parameter | Value |
|---|---|
| Part Number | A20B-3900-0074 |
| Series | A20B-3900 |
| Type | F-ROM Flash Memory DIMM Module |
| Battery Required | No |
| Mounting | DIMM slot — i-Series master board |
| Platform | FANUC Series 16i, 18i, 21i |
| Origin | Japan |
Q1: The CNC shows a FROM parity error at power-up. Is A20B-3900-0074 faulty?
FROM parity errors at boot indicate corrupted or failed flash memory on the module. Before replacing, attempt to re-flash the FROM via the BOOT screen — a soft corruption can sometimes be corrected. If the write operation fails or errors persist after re-flashing, the module's flash cells have failed and it must be replaced.
Q2: After fitting a replacement A20B-3900-0074, the CNC shows no parameters. Has something gone wrong?
No — parameters are stored in the SRAM module, not the FROM module. If the SRAM module was correctly handled (battery maintained during the board swap), all parameters, programs, and offsets are intact. If the SRAM battery was removed or depleted during the swap, the SRAM content was lost and must be restored from backup.
Q3: The replacement FROM module arrives blank. What software needs to be loaded?
The FANUC system software version matching the CNC's series (e.g., 16i, 18i) and software release must be loaded via the BOOT screen. Obtain the correct software image — the existing CF card or a software archive from FANUC service. Confirm the software version matches the original before loading.
Q4: Can a FROM module from a different A20B-3900 variant substitute for the 0074?
Different suffixes in the A20B-3900 series may have different flash capacities. Installing a module with insufficient capacity may not hold the full software image, causing boot failures. Use the exact 0074 variant or confirm capacity compatibility before substituting.
Q5: Where is the A20B-3900-0074 sourced?
Through the FANUC CNC aftermarket — surplus stock, tested refurbished units, and occasionally repair services. Confirm the /01A revision is present if revision matching is required. The board should be tested for correct read/write function before acceptance.
