A20B-3900-0162 Fanuc PCB Board A20B39000162 A2OB-39OO-OI62

FANUC A20B-3900-0162

16MB FROM / 3MB SRAM Memory Board for FANUC CNC Repair

Product Overview

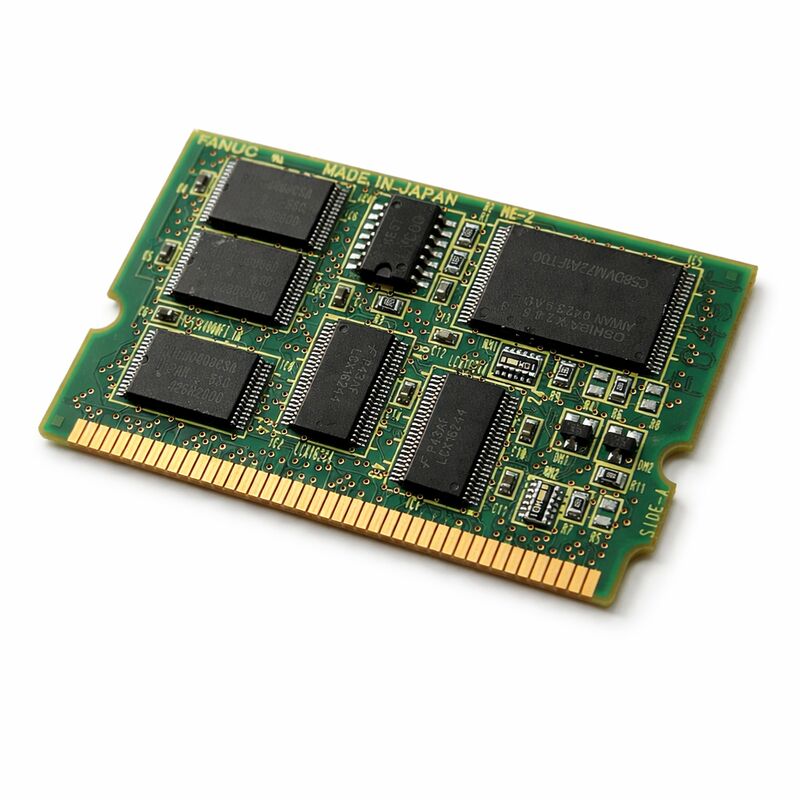

The FANUC A20B-3900-0162 is a 16MB FROM / 3MB SRAM memory board used in the A20B-3900 series.

It belongs to the memory side of the control rather than the motion-control or operator-interface side, making it a board-level replacement part for systems that depend on the original FANUC memory structure.

What makes this model stand out is its 3MB SRAM capacity.

In practice, that means it should not be grouped casually with other 16MB FROM modules, because the SRAM value is part of the board’s intended configuration and can matter directly to compatibility in the target control.

Parameter Table

Applications

The A20B-3900-0162 fits best in control-memory repair, exact replacement of failed memory boards, and service support for FANUC CNC systems that still depend on the original A20B-3900 architecture.

It is a natural choice when the machine remains worth repairing and a correct module swap is more efficient than broader control modification.

It is also useful for repair-stock planning and legacy CNC support, especially in workshops that regularly handle board-level memory faults.

Because it is a specific 16MB/3MB configuration, it is best treated as a precise replacement item instead of a broad “same-family” substitute.

Q1: What kind of memory board is the A20B-3900-0162?
The A20B-3900-0162 is a 16MB FROM / 3MB SRAM memory board in the A20B-3900 series.

That configuration places it in the controller memory structure rather than in motion control, spindle power, or HMI-related hardware.

In a repair setting, it is best understood as a board-level memory component used to maintain the original internal storage arrangement of the control.

Q2: Why is the 3MB SRAM value important from an engineering perspective?
Because SRAM capacity is one of the defining characteristics of the module. Two boards from the same product family can share a similar outline and connector style but still behave as different parts if the SRAM value is not the same.

In practice, the 16MB FROM / 3MB SRAM combination is what distinguishes this module from other A20B-3900 variants, so that exact combination needs to match the installed hardware.

Q3: Which FANUC controls is this module commonly associated with?
This model is commonly associated with FANUC 30iA, 31iA, and 32iA controls. That association matters because it gives the module a practical application context beyond the memory numbers alone.

For maintenance teams, it means the A20B-3900-0162 is not just “a memory board,” but a board tied to a specific generation of FANUC control hardware.

Q4: Is this a plug-and-run part, or should replacement be treated more carefully?
It should be treated carefully. Even when the physical replacement is straightforward, memory modules affect stored control structure, so technicians should approach them as precision service parts rather than general plug-in accessories.

Good practice includes verifying the original module number, backing up what can be backed up, inspecting the receiving connector, and confirming that the control’s issue is really a memory-board fault before removing the installed module.

The need for that discipline follows directly from the module’s role in the control-memory path.

Q5: Where is A20B-3900-0162 most useful in the field?
It is most useful in repair work, replacement stock, and long-term support of installed FANUC i-Series systems, especially in shops that regularly handle 30iA, 31iA, and 32iA hardware.

In those environments, keeping the exact memory module available can reduce downtime and allow technicians to restore the control without changing the wider CNC platform.
