A20B-3900-0223 Fanuc PCB Board A20B39000223 A2OB-39OO-O223

FANUC A20B-3900-0223

32MB FROM / 1MB SRAM R301A Module for FANUC Control Memory

Main Description

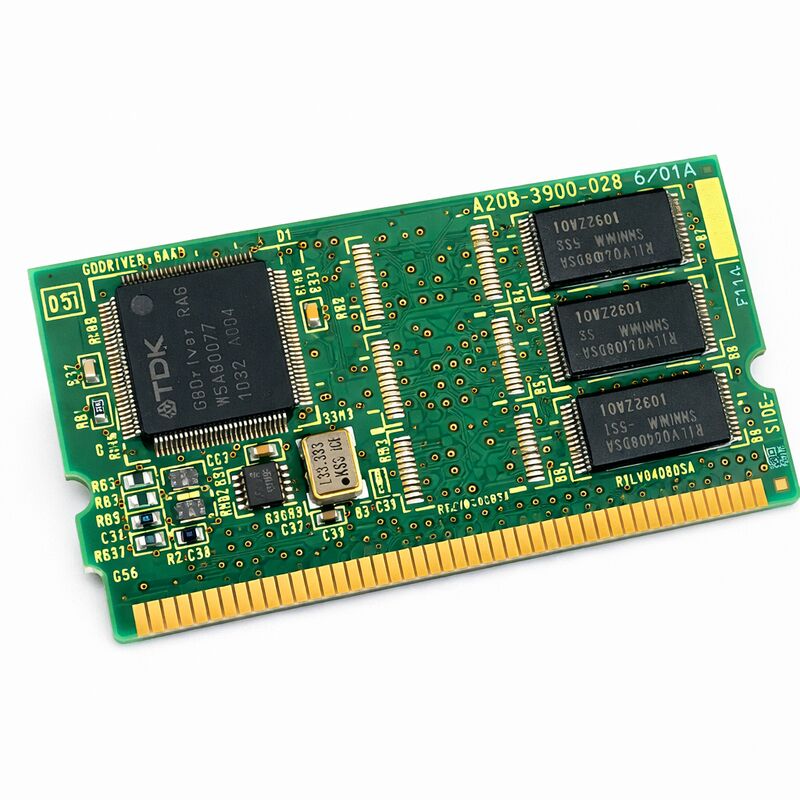

The FANUC A20B-3900-0223 is a 32MB FROM / 1MB SRAM R301A module in the A20B-3900 family.

In practical service work, it belongs to the control-memory side of the CNC rather than the display, amplifier, or operator-panel section.

Sellers commonly position it as a FROM/SRAM replacement module for FANUC i-Series control hardware, although the listed control families vary by supplier, so exact fit should always be checked against the installed unit.

What makes this module useful is its role in restoring the original memory layout without forcing a larger control retrofit.

A board in this class is usually selected when the machine is still productive, the main control remains worth repairing, and the fastest solution is to replace the exact memory module with the same capacity profile.

Parameter Table

Applications

The A20B-3900-0223 is well suited to control-memory replacement, board-level CNC repair, and spare-parts support for FANUC controls that still depend on the original A20B-3900 memory architecture.

It makes the most sense where the control hardware remains serviceable and the machine needs the correct memory module to stay in operation.

It is also a practical fit for repair inventory, legacy machine support, and service departments handling failed FROM/SRAM modules.

Because suppliers associate this model with several i-Series applications, it is better treated as a precise replacement part than as a general-purpose memory card.

FAQ

Q1: What kind of part is A20B-3900-0223?
It is a 32MB FROM / 1MB SRAM R301A memory module. That means it belongs to the controller memory structure rather than to motion control, spindle power, or display hardware.

Q2: Why is the FROM and SRAM combination important?
Because the module is identified by both capacities, and that combination defines its place in the control’s memory layout.

In real repair work, matching both values matters more than simply matching the board family name.

Q3: Is this module mainly used for repair work?
Yes. The current market around this part is centered on replacement, surplus, and service support, which makes it much more relevant to maintenance and restoration than to new system design.

Q4: Which controls is it usually associated with?
Listings commonly place it in FANUC i-Series memory applications, but the exact control-family references are not identical across sellers.

The safest approach is to verify the installed module number on the machine before purchase.

Q5: Why is exact part-number matching important here?
Because the A20B-3900 family includes several modules with different FROM/SRAM combinations.

Even visually similar modules can represent different memory configurations, so matching A20B-3900-0223 exactly is the safer service choice.
