| Place of Origin | JAPAN |
| Brand Name | FANUC |
| Certification | CE ROHS |
| Model Number | A20B-8001-0621 |

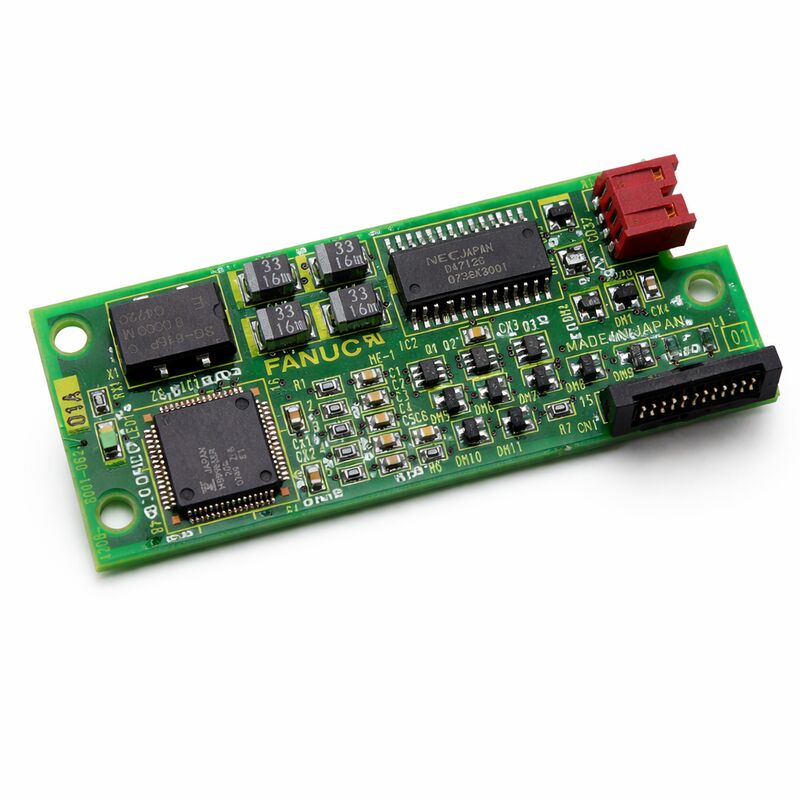

The FANUC A20B-8001-0621 is a touch panel control PCB used in FANUC operator-interface hardware.
Public product listings consistently describe it as a touch panel control board, while another marketplace listing refers to the same part as a system circuit connection board, which suggests it belongs in the panel-side interface and signal path rather than in a general-purpose control role.
In practical maintenance work, boards in this category matter because operator response issues are not always caused by the display itself.
A machine can still be powered and logically active while touch input becomes unstable, inaccurate, or completely unavailable.
When that happens, a panel control PCB becomes a high-priority inspection point because it sits closer to the touch interface layer than a main CNC motherboard.
This makes the A20B-8001-0621 a targeted replacement choice for service teams trying to restore normal panel interaction without replacing a larger assembly.
The same public material also links this board to PANEL i touch panel applications.
The FANUC A20B-8001-0621 is publicly described as a touch panel control board, so its most relevant applications are operator-interface and panel-side control repair rather than general CNC main-board replacement.
It is typically used in FANUC control systems where touch response, panel input stability, and operator interaction are part of the normal machine workflow.
In practical service environments, this board is especially relevant when the screen assembly is still present but touch input becomes inaccurate, intermittent, or non-responsive.
This part is also suitable for maintenance stock held by service teams that support older FANUC interface hardware.
Because public sources associate it with touch-panel control and panel-side circuit connection, it fits applications such as operator panel refurbishment, HMI response recovery, and panel electronics replacement in installed FANUC systems.
Before replacing the A20B-8001-0621, technicians should first confirm that the fault is actually in the touch-control path rather than in the LCD panel, the front overlay, or the connecting harness.
Since this board is identified as a touch panel control board, dark or blank screen symptoms alone are not enough to justify replacement.
The better service sequence is to verify that the control powers correctly, inspect ribbon and panel connectors, and then evaluate whether the problem is truly limited to touch response or panel-side signal handling.
During replacement, exact part-number matching is the safest approach. Public listings do not present this board as a generic universal panel PCB, so technicians should avoid appearance-based substitution.
After installation, the practical check is simple: confirm normal touch registration, stable operator response, and consistent panel behavior across menu navigation and routine machine interaction.
Q1: What is the main role of the A20B-8001-0621?
The A20B-8001-0621 is identified publicly as a touch panel control board or touch panel control PCB. In industrial terms, that places it in the operator-interface section, where touch-panel signals and panel-side control behavior must remain stable for the machine to be easy to operate and diagnose.
Q2: Is this the same thing as the LCD panel?
No. A touch panel control PCB belongs to the input and interface side of the panel assembly, while the LCD panel is the visual display element.
In field troubleshooting, a screen can appear normal while touch response fails, or a control can be active while panel interaction becomes unreliable.
That difference is exactly why panel control boards are treated as separate replacement parts.
Q3: What symptoms may point to this board during repair?
Common service scenarios include poor touch response, intermittent panel input, or an operator interface that powers up but does not react normally.
Because this board belongs to the panel-control layer, it is usually investigated after obvious issues such as loose cables, cracked touch surfaces, or broader power faults have been checked.
The exact symptom pattern depends on the machine builder’s implementation.
Q4: Why is exact part matching important for this PCB?
Touch-panel boards are tied to specific panel assemblies and control layouts. Even a board that looks similar may differ in connector arrangement or application scope.
For industrial maintenance, matching the original FANUC part number is the most reliable way to preserve fit and functional compatibility.
