| Place of Origin | JAPAN |
| Brand Name | FANUC |
| Certification | CE ROHS |
| Model Number | A20B-8002-0020 |

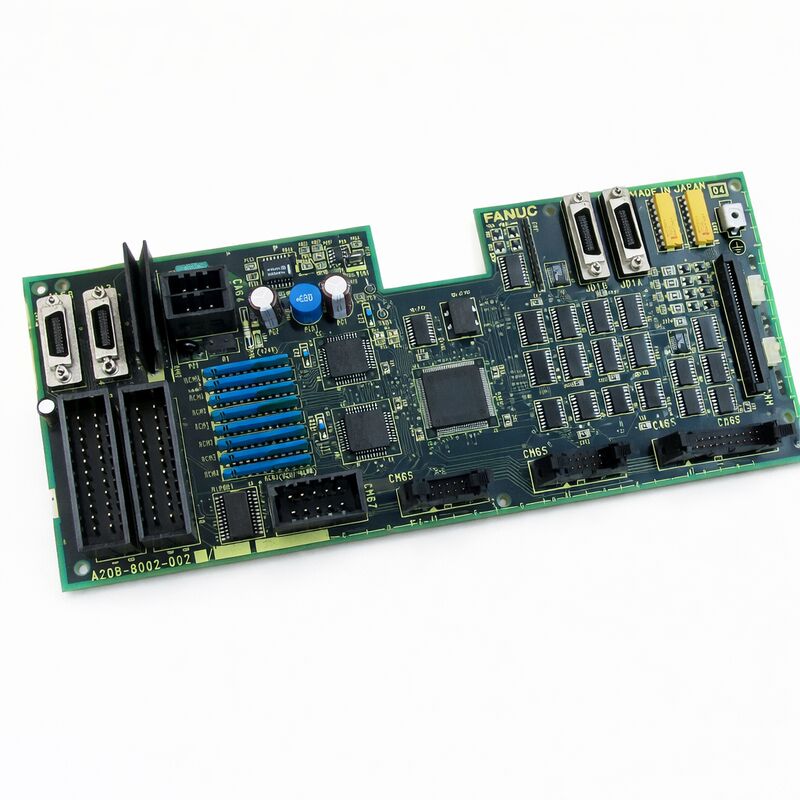

The FANUC A20B-8002-0020 is publicly described as an Operator Panel I/O PCB or Operator Panel Interface Board, which places it in the panel-side signal and interface layer of a FANUC CNC system rather than in the main CPU section.
In practical service terms, it is the kind of board technicians look for when the operator panel is not responding normally even though the broader control may still power up and run.
Because this model is identified specifically as a panel I/O board, it is better suited to targeted interface repair than to broad control-board substitution.
For maintenance teams, that makes it a useful replacement part when the goal is to restore the original front-end control path without changing the rest of the FANUC architecture.
| Parameter | Value |
|---|---|
| Part Number | A20B-8002-0020 |
| Manufacturer | FANUC |
| Type | PCB |
| Model Number | A20B80020020 |
| Product Role | Operator Panel I/O PCB |
| Board Class | Operator Panel Interface Board |
| Typical Use | Repair, replacement, maintenance support |
Based on its public classification, the A20B-8002-0020 is best suited to operator panel repair, panel I/O troubleshooting, front-end signal restoration, and maintenance support for installed FANUC CNC systems.
It is especially relevant where a machine shows panel-side abnormalities, key response issues, or interface communication problems that appear isolated from the main control hardware.
This application summary is an engineering use-case inference grounded in the board being identified as an operator panel I/O/interface board.
When replacing the A20B-8002-0020, the safer workflow is to first confirm that the fault is really in the operator panel I/O path rather than in the display, cabling, front keys, or wider CNC control section.
Since public sources identify this board as a panel interface board, dark-screen faults alone are not enough to justify replacement.
It is more appropriate when panel interaction, signal routing, or front-end board response is the primary concern.
For installation, exact model matching is the better choice than appearance-based substitution.
After replacement, technicians should verify stable panel communication, normal key or operator response, and consistent interface behavior across routine machine operations.
That post-installation guidance is a practical engineering inference based on the board’s publicly described panel-I/O role.
Q1: What does the A20B-8002-0020 do in a FANUC system?
It is publicly identified as an operator panel I/O PCB or operator panel interface board, which means it belongs to the operator-interface side of the control rather than to the main CPU layer.
Q2: Is this the same as a main control board?
No. Public product descriptions separate this model from CPU-class or master boards and instead describe it as a panel I/O or interface PCB.
Q3: When would technicians inspect this board?
It is most relevant when operator-panel behavior is abnormal, panel I/O is unstable, or front-end interface functions are not responding as expected while the machine still appears otherwise powered.
That usage is an inference based on its published operator-panel role.
Q4: Why is exact part-number matching important?
Panel interface boards are tied to specific connector layouts and control-panel implementations. Public listings do not describe A20B-8002-0020 as a universal board.
Q5: Is this part mainly used for repairs?
Yes. The public market presence around this model is centered on spare-parts supply and repair support rather than new-system design.
