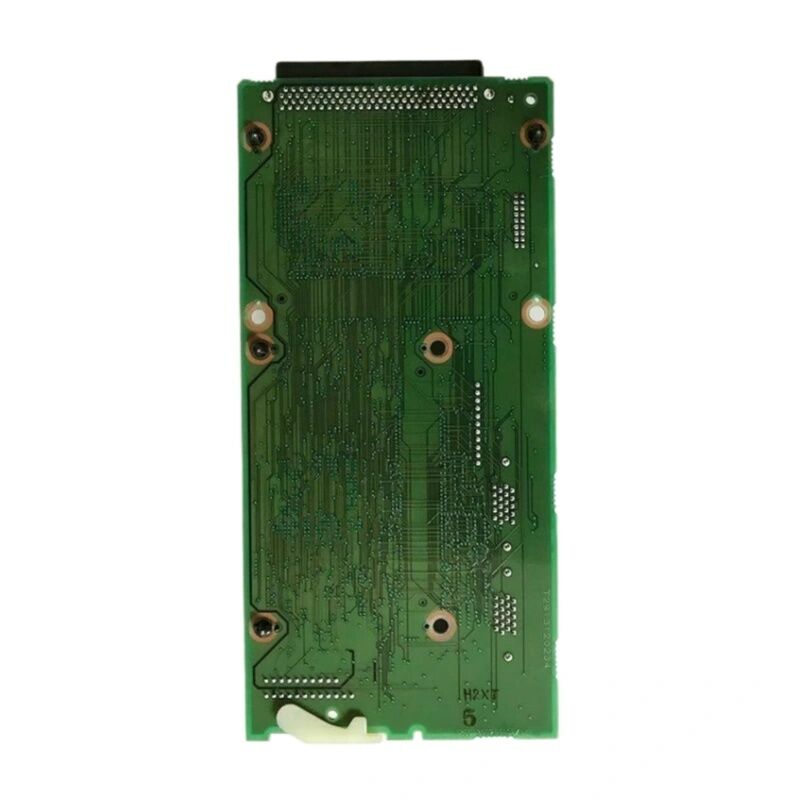

Sub CPU PCB for FANUC i-Series CNC Expansion Architecture

Main Description

The FANUC A20B-8002-0191 is publicly identified as a Sub CPU PCB in the A20B-8002 series. Public sources describe it as a secondary processor board used in the i-Series control structure, and some listings place it on the riser from the main control PCB rather than in a front-end or standalone board position.

One public source also states that programming is required after replacement and that sub parameters and programs must be reloaded, which is a useful service note because it means this board should be treated as a configured Sub CPU component rather than as a plug-and-run spare.

Parameter Table

Applications

The A20B-8002-0191 is suited to i-Series CNC systems that use a secondary processing layer, especially where the machine relies on a Sub CPU architecture to support more advanced internal coordination.

Public listings describe it as a Sub CPU board, and other public seller text associates boards of this type with additional subsystem handling and peripheral communication.

In real maintenance terms, this makes it useful for Sub CPU board replacement, repair of expanded CNC control stacks, and restoration of machine configurations that depend on the original FANUC secondary-processor structure.

That application framing is a practical engineering inference from the board’s public Sub CPU role.

Replacement Guide

Before replacing the A20B-8002-0191, technicians should confirm that the machine fault truly points to the Sub CPU layer and not to the main control PCB, option interfaces, or external communication hardware. Since a public source explicitly notes that sub parameters and programs must be reloaded, backup and commissioning preparation should be part of the replacement plan rather than an afterthought.

After installation, the recommended service workflow is to verify board recognition, reload the required data, and confirm stable operation of the functions that depend on the secondary processor path.

This is especially important because public listings do not present the board as a generic spare, but as a model-specific Sub CPU PCB that may require programming after replacement.

FAQ

Q1: What is the A20B-8002-0191?
It is publicly described as a Sub CPU PCB in the A20B-8002 series, used as a secondary processor board in FANUC control hardware.

Q2: Does this board need setup after replacement?
Yes. One public source explicitly says programming is required and that sub parameters and programs must be reloaded.

Q3: Is it a front-panel or interface board?
No. Public descriptions place it in a secondary CPU role, often associated with the internal i-Series board stack rather than with panel-side functions.

Q4: What kind of applications use a Sub CPU PCB like this?
It is most relevant where the CNC system uses an additional processing layer beyond the main CPU path. That use-case summary is an inference grounded in the board’s public Sub CPU classification.

Q5: Why is exact part-number matching important?
Because a Sub CPU board is tied to a specific role in the controller architecture, and public listings do not describe A20B-8002-0191 as a universal board.
