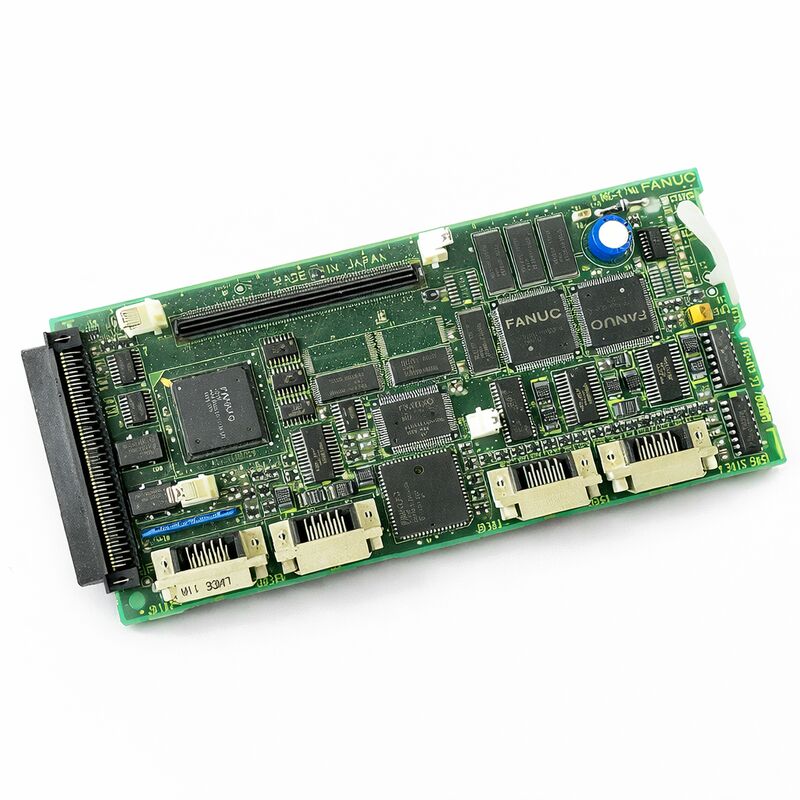

A20B-8100-0150 Fanuc PCB Board A20B81000150 A2OB-8IOO-OI5O

FANUC A20B-8100-0150

PMC-RE Option PCB for FANUC CNC Control Expansion

Main Description

The FANUC A20B-8100-0150 is a PMC-RE option PCB used in FANUC CNC control environments where the original board structure needs to be preserved with the correct option card. In practical maintenance work, boards in this category are chosen when a machine still relies on its established PMC-related control architecture and the repair goal is to restore the original control path rather than redesign the system around a substitute.

As part of the A20B-8100 board family, this model fits naturally into long-service FANUC installations that remain productive but need accurate board-level support.

It is best treated as a dedicated control option PCB rather than a generic replacement board, because boards in this class are usually matched by exact part number and intended function rather than by appearance alone.

For buyers, the main value of A20B-8100-0150 is practical: it supports continuity in service, helps maintain the original FANUC control structure, and offers a like-for-like solution where the machine is still worth repairing and keeping in operation.

Parameter Table

Applications

The A20B-8100-0150 is best suited to FANUC CNC control maintenance, especially where the machine uses a PMC-related option board as part of its original control arrangement.

It fits applications such as board-level repair, option-board replacement, legacy control restoration, and maintenance stock for installed FANUC systems that still depend on the original board stack.

It is also appropriate for service departments that support older machines and want to keep the original control format intact.

In those cases, replacing the exact PMC-RE option PCB is usually more efficient than trying to reconfigure the wider control hardware around a different board.

Replacement Guide

Before replacing the A20B-8100-0150, technicians should verify that the fault actually belongs to the option-board path rather than to the main CPU board, memory section, or surrounding I/O hardware.

A board in this role should be replaced as part of a structured diagnosis, not as a first-guess swap. That guidance follows from its position as a control option PCB rather than a general motherboard.

During installation, exact part-number matching is the safer approach.

After replacement, the system should be checked for stable startup, correct recognition of the option-board function, and normal machine behavior in the control areas influenced by the PMC-related setup.

The final checks are practical engineering guidance based on the verified board role.

FAQ

Q1: What kind of board is A20B-8100-0150?
It is a PMC-RE option PCB used in a FANUC CNC control environment. That places it in the option-board layer of the control system rather than in the display or drive-amplifier section.

Q2: Is this a main CPU board?
No. The model is identified as an option PCB, which means it supports a specific control function within the broader FANUC architecture instead of serving as the core motherboard.

Q3: Where is this board most useful in service work?
It is most useful in maintenance projects where a FANUC machine still relies on its original PMC-related option-board layout and needs the correct replacement to remain in service.

Q4: Why is exact model matching important?
Option boards are tied to specific control functions and board-stack roles. Even if another PCB looks similar, it may not support the same function inside the control system.

Q5: What should be checked after installation?
Technicians should confirm stable control startup, normal board recognition, and correct machine behavior in the area supported by the option board.

Those checks help verify that the replacement restored the intended function rather than only restoring power to the board.
