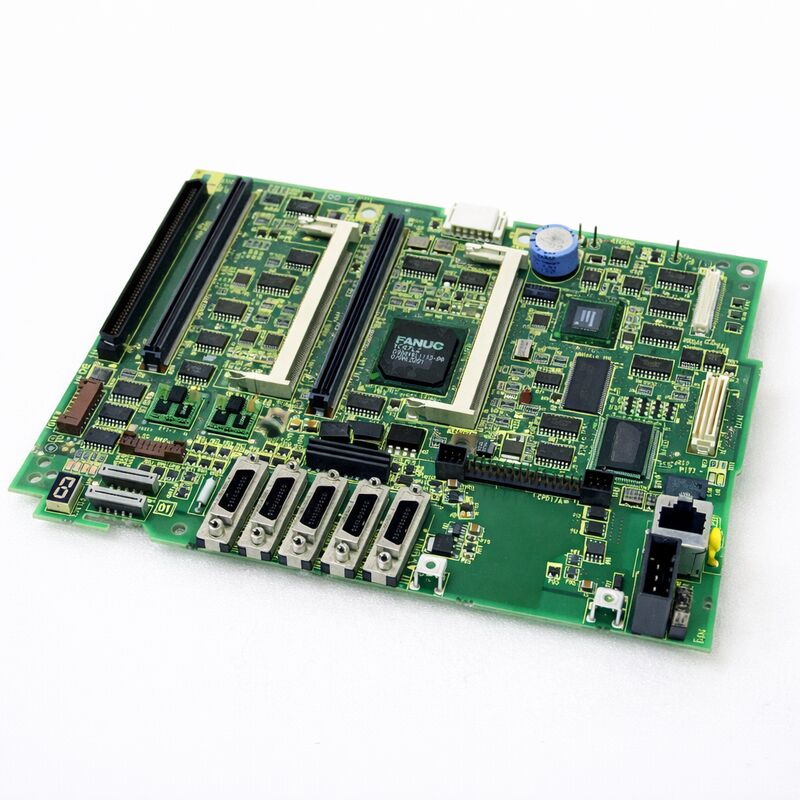

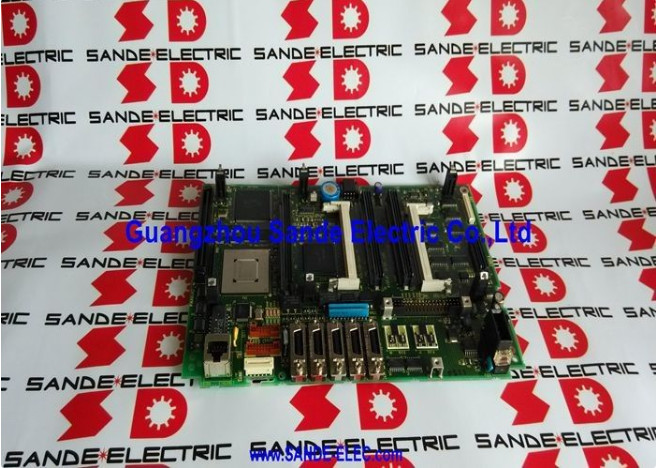

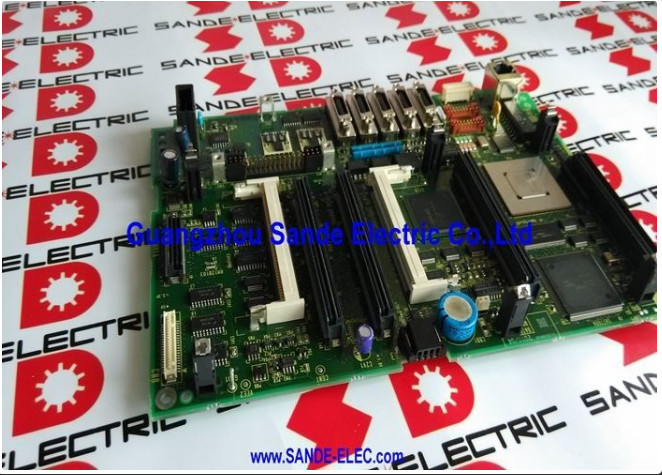

FANUC A20B-8101-0374 | Main PCB -- A20B-8101 High-End CNC Controller Series
The FANUC A20B-8101-0374 belongs to the A20B-8101 board family -- FANUC's main PCB series for the high-performance Series 30i/31i/32i CNC generation. This family covers the control hardware for the most capable FANUC CNC controllers produced during the i-series era.
The machines running these controllers handle work that simpler CNC generations cannot: five-axis simultaneous interpolation, multi-path operation with independent programme execution on each path, high-speed nano-interpolation for surface-finish-critical parts, and complex synchronisation between turning, milling, and grinding operations on compound machines.
Key Specifications
| Parameter |
Value |
| Series |
A20B-8101 |
| Compatible CNC Platform |
FANUC Series 30i/31i/32i-A and variants |
| Function |
Main / high-function control PCB |
| Operating Voltage |
System-supplied internal (CNC rack) |
| Construction |
Industrial-grade FR-4, SMD components |
| Interface |
FSSB, Serial Spindle, I/O Link, Display |
| Status |
Available -- refurbished, tested |
| Origin |
Japan |
The 30i/31i/32i-A Platform -- What the Control Board Supports
The Series 30i/31i/32i-A CNC generation sits at the top of FANUC's machine tool CNC lineup. Understanding what this platform controls helps explain why the main control board is so consequential.
- Multi-path machining: The 30i/31i/32i-A supports multiple independent programme paths executing simultaneously. Each path controls its own set of axes and spindles.
- High axis count: A single 30i/31i/32i-A CNC can control up to 40 axes across all paths, with up to 20 servo axes and 4 spindles in some configurations.
- High-speed interpolation: The nano-interpolation function processes interpolation commands at sub-micron resolution, requiring very fast cycle times.
- Five-axis simultaneous control: Tool centre point control, tilted workplane functions, and simultaneous five-axis interpolation all run through the control board's processor.
Maintenance Considerations for A20B-8101 Series Boards
Replacing any main control board in a high-end CNC requires more preparation than replacing a peripheral or option board:
- Data backup is essential: All machine-specific data must be captured before the board is removed
- Module seating matters: Plug-in modules must be fully and correctly seated after reinstallation
- Verification sequence: After replacement, verify systematically: CNC parameters, PMC ladder execution, axis readiness, spindle readiness, and full programme execution
Frequently Asked Questions
Q1: The Series 30i CNC starts up but immediately shows a "9001" or similar system configuration alarm. Is the A20B-8101-0374 defective?
A system configuration alarm at first startup after board replacement usually indicates the CNC's software cannot recognise the hardware configuration of the replacement board. First, verify the SRAM data was correctly loaded. If SRAM is correctly loaded and the alarm persists, the board variant may require a software parameter adjustment or may not be the correct hardware revision.
Q2: Can option boards from the A20B-8101 family be used interchangeably across different 30i/31i/32i machine configurations?
Option boards within the A20B-8101 family are generally compatible across 30i/31i/32i-A systems, provided the same communication protocol is being installed and the CNC software supports that option. However, option boards also require the corresponding software option to be registered on the CNC.
Q3: A20B-8101 series boards available on the secondary market sometimes have different suffix letters. Does this affect compatibility?
Suffix letters in FANUC part numbers typically denote hardware revision levels. In most cases, a higher revision suffix is backward-compatible. However, confirm with the parts supplier that the specific suffix being offered is compatible with the target machine's main board configuration.
Q4: How should the A20B-8101-0374 be transported and stored when kept as a spare?
Store in the original antistatic packaging or an equivalent ESD-safe bag with desiccant. Keep away from humidity, high temperatures, and direct sunlight. The board contains fine-pitch SMD components and CMOS logic that are sensitive to electrostatic discharge.
Q5: After a successful board replacement and data restore, the CNC works but one axis shows following error alarms during rapid traverse. Was the replacement board correctly installed?
Following error alarms on a single axis after a main board replacement most often point to a servo parameter issue rather than a main board failure. Check the servo parameter values for the affected axis against the machine's documented baseline. If the parameters look correct, inspect the FSSB fibre-optic connection for the affected amplifier.
