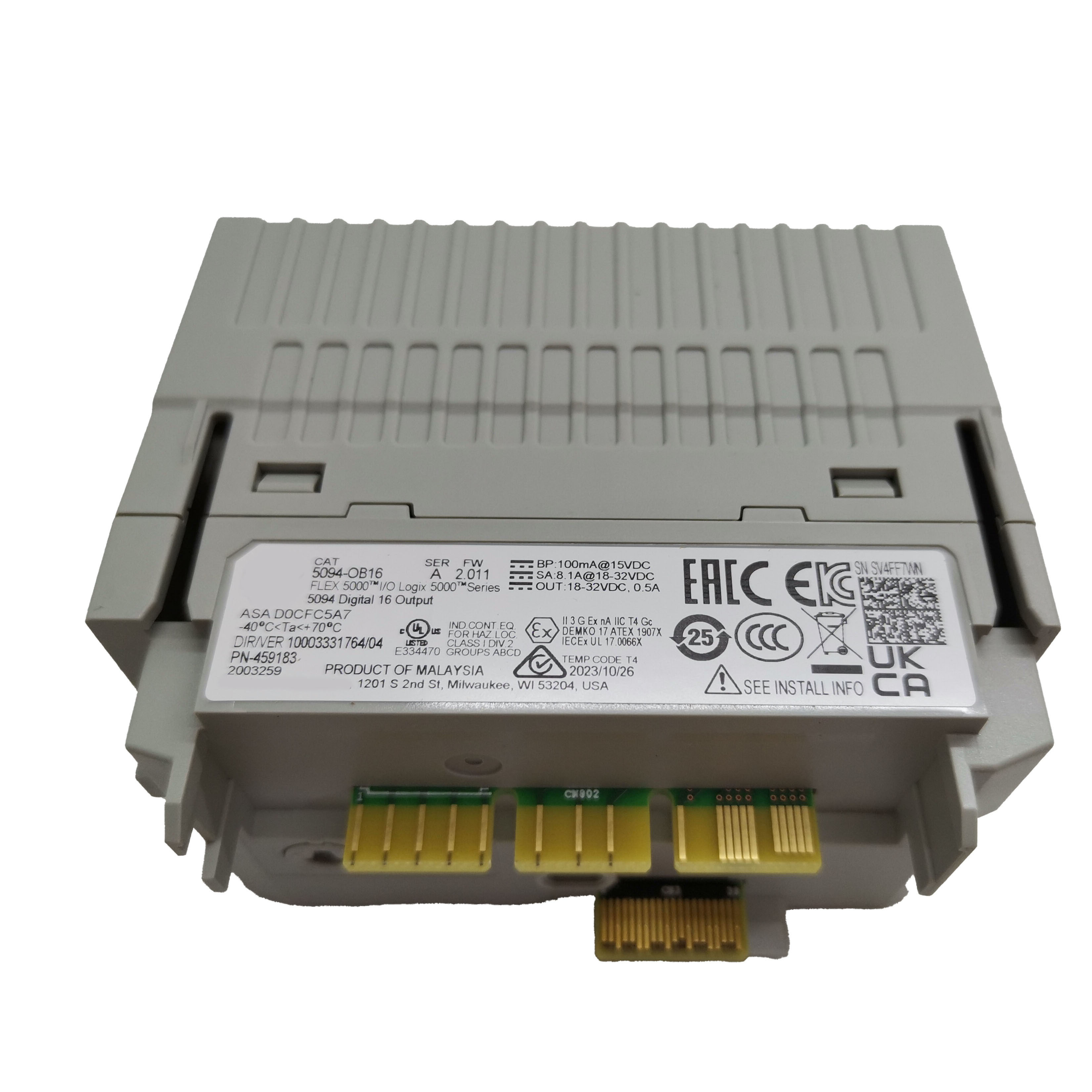

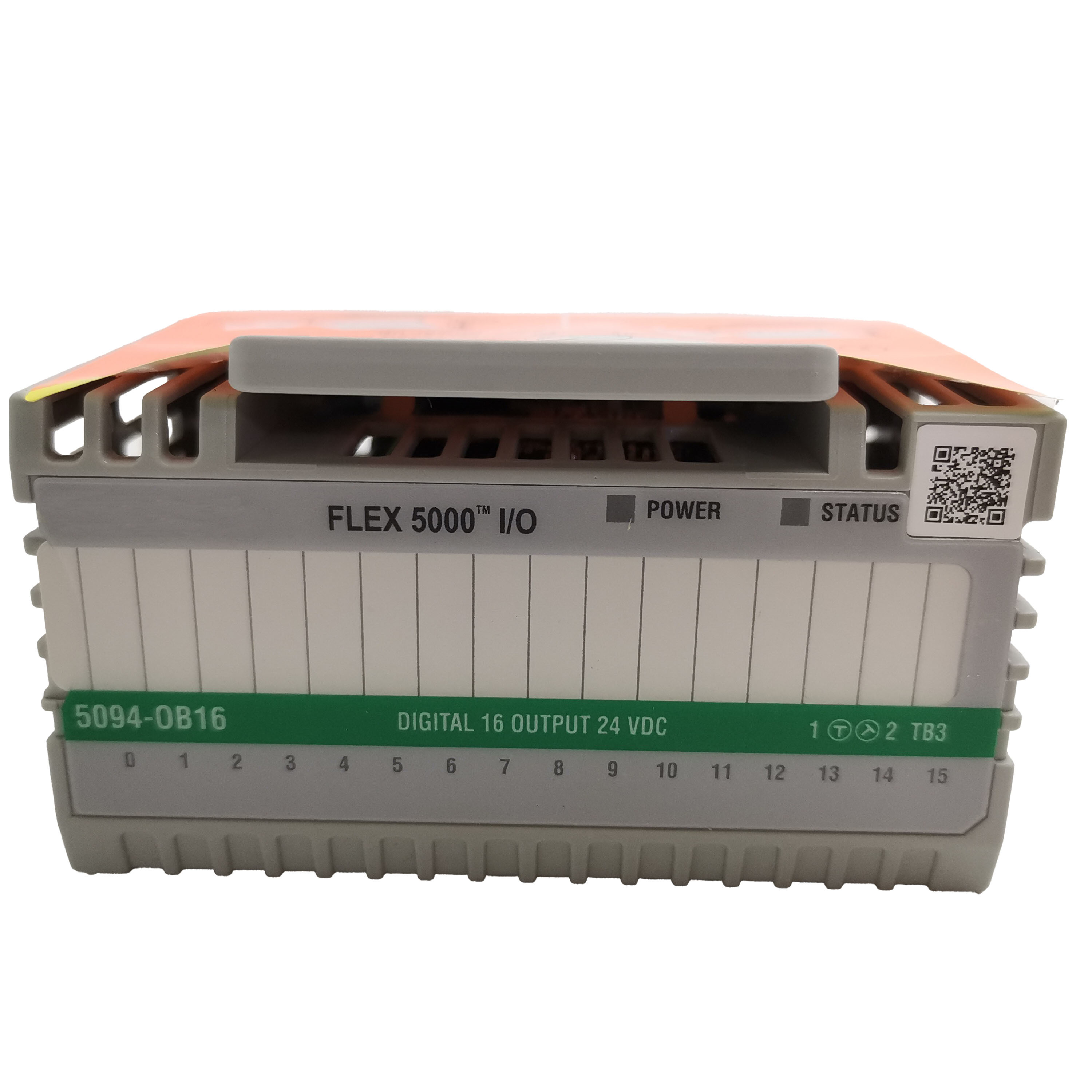

Allen Bradley FLEX 5000 Digital Output Module 16 Point DC 5094-OB16
  • Allen Bradley FLEX 5000 Digital Output Module 16 Point DC 5094-OB16
  • Allen Bradley FLEX 5000 Digital Output Module 16 Point DC 5094-OB16
Allen Bradley FLEX 5000 Digital Output Module 16 Point DC 5094-OB16

Allen Bradley FLEX 5000 Digital Output Module 16 Point DC 5094-OB16

Place of Origin MALAYSIA
Brand Name AB
Model Number 5094-OB16
Product Details
Product Name:
Allen‑Bradley 5094‑OB16
Manufacturer:
Allen‑Bradley
Series:
FLEX 5000™ I/O
Number Of Outputs:
16 Sourcing Outputs
Output Type:
Digital Sourcing
Condition:
New Original
Warranty:
12 Months
Lead Time:
In Stock
Highlight:

FLEX 5000 Digital Output Module

,

Allen Bradley Digital Output Module

,

5094-OB16

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 400-500 / piece
Packaging Details
Original packaging
Delivery Time
2 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100 pcs per day
Product Description

5094-OB16 Brand New In Box 5094OB16 Digital 16 Output Module AB

Allen-Bradley FLEX 5000 Digital Output Module | 16-Point DC Output

The Allen-Bradley 5094-OB16 digital I/O module is manufactured in the Allen-Bradley FLEX 5000 series. This digital I/O module needs to be connected to a 24 Volts DC power source through its left SA +/- terminals so that the power source can provide field-side power. The Allen-Bradley 5094-OB16 digital I/O module comes with open load detection diagnostics, output short circuit detection and protection, overload detection and protection, excessive temperature protection, and reverse voltage protection, and these features make the I/O module as safe as possible. The module’s on-state voltage range is from 18 to 32 Volts DC, its maximum on-state voltage drop is 0.25 Volts DC, and its maximum off-state voltage is 5 Volts DC with a minimum load of 1 milliamp.

Technical Information



Parameter Specification
Brand Allen-Bradley
Manufacturer Rockwell Automation
Name Allen-Bradley 5094-OB16 Digital Standard Sourcing Output Safety Module, 16 Outputs
Product Type Simple
Type Digital Standard Sourcing
Number of Outputs 16
Voltage Rating 18 to 32 V
Amperage Rating 0.5 A
Temperature Rating -40 to 158 °F
Dimensions (H x W x D) 3.43 in × 3.7 in × 2.13 in
Item Status Active
Unit of Measure EA
UNSPSC 32151705





  • Includes configuration with Studio 5000 Logix Designer® application
  • Allows for use in extreme environments with XT version up to G3 with conformal coating
  • Functions as remote I/O modules with ControlLogix® 5580, CompactLogix™ 5380 and CompactLogix 5480 controllers
  • Offers true integrated safety with discrete fail-safe I/O modules, TV certified up to SIL 3/PLe/Cat. 4
  • Allows users to replace modules while system is in operation with easy snap-on installation via Removal and Insertion Under Power (RIUP)
  • Operates in -4070 °C (-40...158 °F) temperatures and in hazardous areas in Class I, Division 2, Zone 2, Groups A, B, C, D



Technical notes



The 5094-OB16 is a T Safety Digital 16-point Sourcing Output Module manufactured by Allen-Bradley which has an On-state voltage range of 18...32V DC, an On-state voltage drop, max of 0.25V DC, and an On-state current per channel, min of 1 mA as well as an Off-state voltage, max of 5V DC with 1 mA min load. The Off-state leakage current per point, max for this module is 0.5 mA per point, and the Output current rating, max is 0.5 A per channel. The Backplane Power (BP) voltage for this model is 15V DC .



Typical Industrial Applications

The 5094-OB16 is widely deployed in:

  • Automated production lines

  • Packaging and labeling systems

  • Conveyor and material handling systems

  • Robotic cell output control

  • Automotive manufacturing equipment

  • Food & beverage automation

  • Semiconductor and electronics assembly

Wherever reliable digital output execution is required, this module ensures consistent system performance.
