| Place of Origin: | Japan |
| Brand Name: | Fanuc |
| Model Number: | A06B-0249-B400 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 1673 |

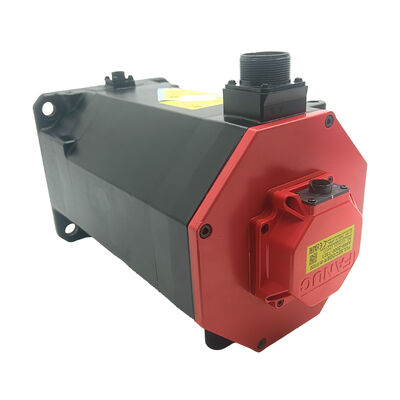

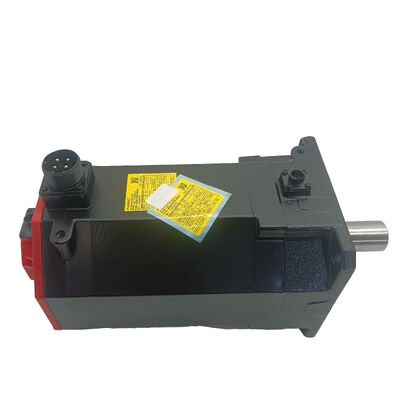

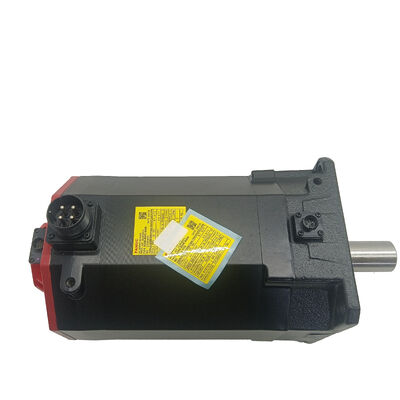

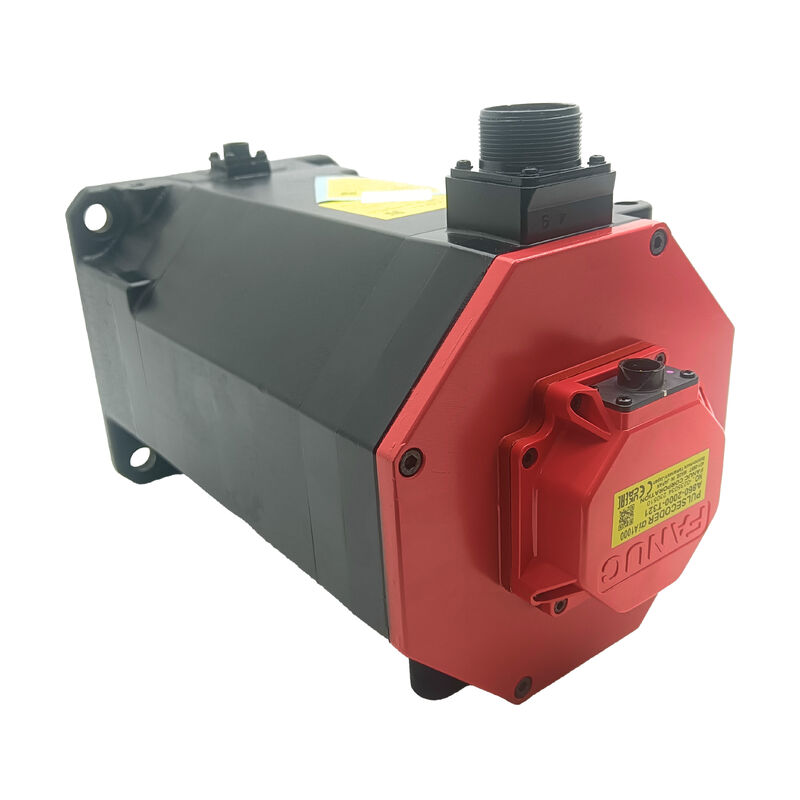

The A06B-0249-B400 is an AC servo motor of model AiF22/3000HV. This servo motor features a direct shaft (ST) and smooth shaft (SLK) design for smooth operation. Equipped with a 24V brake (BRK), it enhances safety and controllability, making it suitable for a variety of applications.
The A06B-0249-B400 belongs to the A06B-0249 product series, which is known for its high performance and high reliability. This servo motor provides precise positioning and is ideal for demanding industrial automation applications.
The A06B-0249-B400 servo motor boasts superior speed and torque control, ensuring efficient and smooth operation. Whether you require precise motion control or continuous operation, this servo motor delivers outstanding performance.
The A06B-0249-B400 servo motor features a sleek and compact design, making it easy to install and integrate into various systems. Its keyway shaft (SLK) provides a robust and reliable shaft-load connection, minimizing potential slippage.
The A06B-0249-B400 servo motor is equipped with a 24V brake (BRK) for further enhanced safety. This brake provides additional control over the motor, enabling quick and precise stopping when necessary.
To fully leverage the advantages of the A06B-0249-B400 servo motor, it is recommended to use it with the a1000 amplifier. The a1000 amplifier complements the servo motor by providing advanced control functions such as position and speed control. The A06B-0249-B400 servo motor, when used with the a1000 amplifier, can be used to build a powerful and efficient servo system.
In summary, the A06B-0249-B400 AC servo motor is a reliable, high-performance solution for precision motion control applications. Its direct-axis design, 24V brake, and compatibility with the a1000 amplifier make it an ideal choice for various industries.
Technical Specifications
Series: αiF 22/3000 HV
Shaft Configuration: Straight shaft with 24VDC brake
Shaft Options: Standard
Voltage: 400v KW: 4 RPM: 3000 Torque: 22 N m
Back-EMF Constant: 84 V Peak Current: 40 V
Mb>Resistance: 0.66 Ω (ohms)
Housing Ingress Protection: IP 65
Ambient Temperature: 40 ° C
Paint: Standard IP65
Feedback: Pulsecoder αiA 1000
Weight: 35 Kilograms
Performance Characteristics
Motor Type: AC Servo Motor
FANUC Part Number: A06B-0249-B400
Control Compatibility: FANUC Servo Amplifiers (α / αi series, system dependent)
Torque Output: Optimized for medium-to-high load motion control
Speed Stability: Excellent low-speed smoothness and high-speed responsiveness
Encoder Feedback: High-resolution feedback for precise position and speed control
Cooling Method: Efficient self-cooling design for continuous industrial operation
Designed for closed-loop control systems, the motor maintains accurate response even under rapid acceleration, deceleration, and frequent start-stop cycles.
High Precision Motion Control
Ensures accurate positioning and repeatability for CNC axes and automated mechanisms.
Stable Torque Across Operating Range
Delivers reliable torque output under varying loads, reducing vibration and mechanical stress.
Industrial-Grade Mechanical Design
Reinforced shaft and bearing structure support long operating hours with minimal wear.
Seamless FANUC System Integration
Fully compatible with original FANUC drives and controllers—no parameter mismatch or tuning risk.
