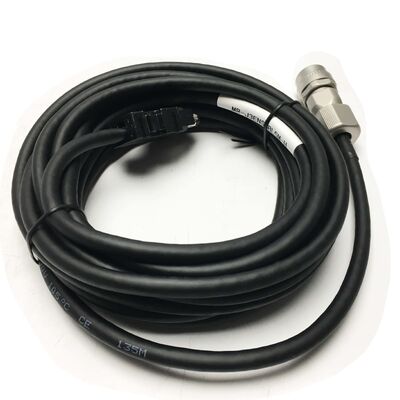

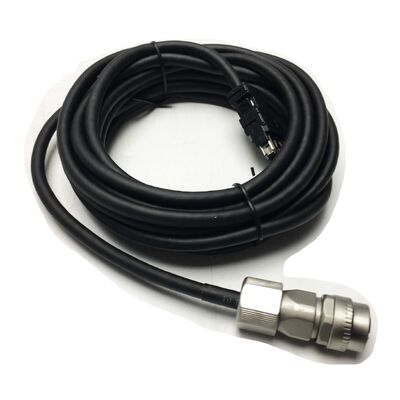

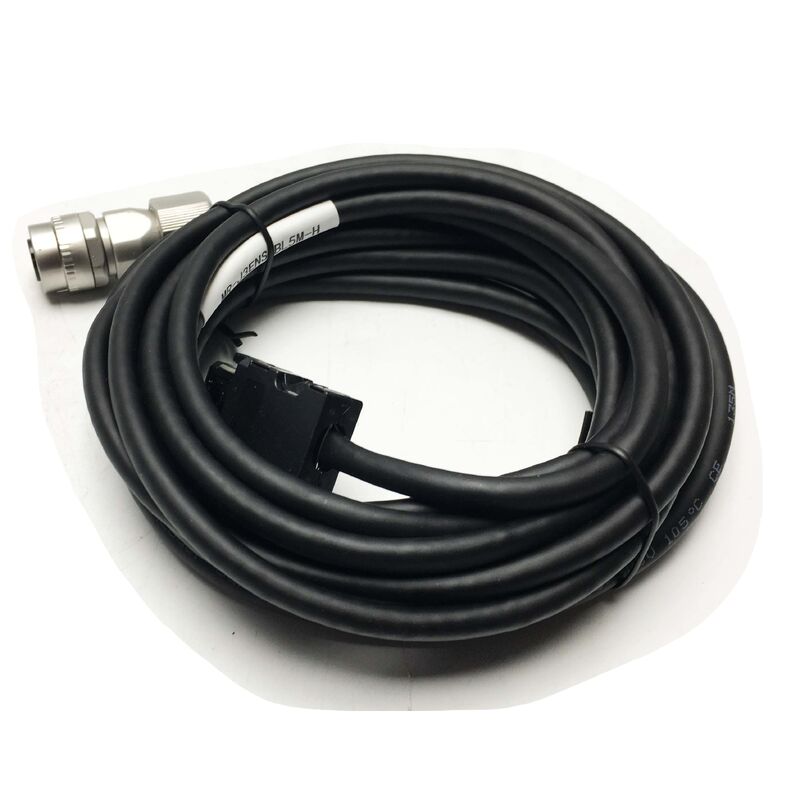

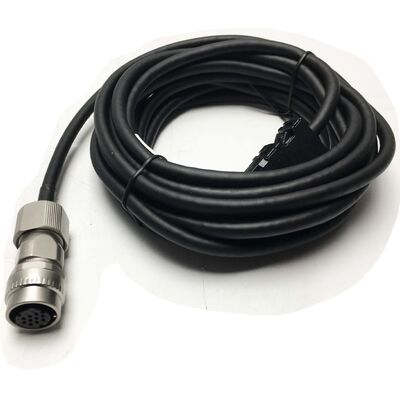

MR-J3ENSCBL5M-H Mitsubishi 5m Encoder Cable MRJ3ENSCBL5MH New Factory Sealed
Mitsubishi MR-J3ENSCBL5M-H High-Flex Encoder Cable
Overview
The MR-J3ENSCBL5M-H is a Mitsubishi servo encoder feedback cable designed for reliable signal transmission between the servo motor and amplifier in motion-control systems. This 5-meter encoder feedback cable features high bending endurance, IP67 protection, and a junction connector plus servo amplifier connector configuration.
This model is especially useful in installations where the cable is expected to move repeatedly or operate in confined machine layouts. A high-flex encoder cable plays a direct role in preserving signal integrity and reducing stress-related wiring failures over time, making it a practical support component for OEM builders, retrofit engineers, and maintenance teams.
The product is compatible with multiple Mitsubishi servo motor families, making it commonly selected for maintenance-oriented projects where durability, correct connector format, and stable encoder communication are essential.
Key Specifications
| Parameter |
Value |
| Model |
MR-J3ENSCBL5M-H |
| Main Function |
Servo encoder feedback cable / cordset |
| Cable Type |
Encoder cable |
| Design |
High bending endurance / long bending life |
| Cable Length |
5 m |
| Protection Class |
IP67 |
| Connection Style |
Junction connector + servo amplifier connector |
| Typical Use |
Servo motor encoder feedback connection |
High-Flex Construction — Better for Repetitive Motion
One of the strongest reasons to choose this cable is its high-bending-endurance design. In servo-driven machinery, encoder cables are often routed through moving axes, cable tracks, and tight enclosures where repeated flexing is part of normal service.
A cable intended for long bending life helps reduce the risk of premature signal loss, intermittent feedback faults, or unscheduled downtime caused by conductor fatigue. This matters because encoder feedback is essential in a servo system — the amplifier depends on stable feedback data to maintain positioning performance and control integrity.
5 m Length and IP67 Protection — Practical for Machine Routing
The 5-meter length provides a useful balance between routing flexibility and manageable installation. It is long enough for many machine layouts without forcing unnecessary slack, which helps in cabinets and axes where cable management must remain controlled.
The IP67 protection class supports use in industrial environments where dust and moisture exposure are part of routine operating conditions. For maintenance teams, these details matter because the right cable length and protection level can make replacement cleaner and more reliable, preserving the intended servo wiring layout.
Frequently Asked Questions
Q1: What is MR-J3ENSCBL5M-H mainly used for?
It is used as an encoder feedback cable between a Mitsubishi servo motor and the servo amplifier. In practical terms, it carries the feedback signals that the drive needs for stable motion control and accurate system response.
Q2: Why is a high-flex encoder cable important in servo systems?
A high-flex cable is important because many servo applications involve repeated movement, tight bends, or cable-track routing. Over time, standard cable constructions may be more vulnerable to fatigue, while a long-bending-life design is better suited to real machine duty.
Q3: Is the 5 m length suitable for general industrial installations?
Yes. A 5-meter encoder cable is a practical size for many machine layouts, especially where the amplifier and motor are separated by panel distance, axis travel, or routing through moving machine structures. The correct length still depends on the actual mechanical layout of the equipment.
Q4: What does the IP67 rating mean in practical use?
IP67 indicates that the cable assembly is designed for industrial environments where dust and water exposure can occur. In practice, that gives the installer more confidence in environments where the servo wiring is not fully isolated from plant contamination or splash conditions.
Q5: What should buyers verify before ordering a replacement?
Buyers should confirm the exact part number, required cable length, connector configuration, and servo motor/drive family used on the machine. With encoder cables, correct mechanical fit and wiring compatibility are just as important as the model designation itself.
