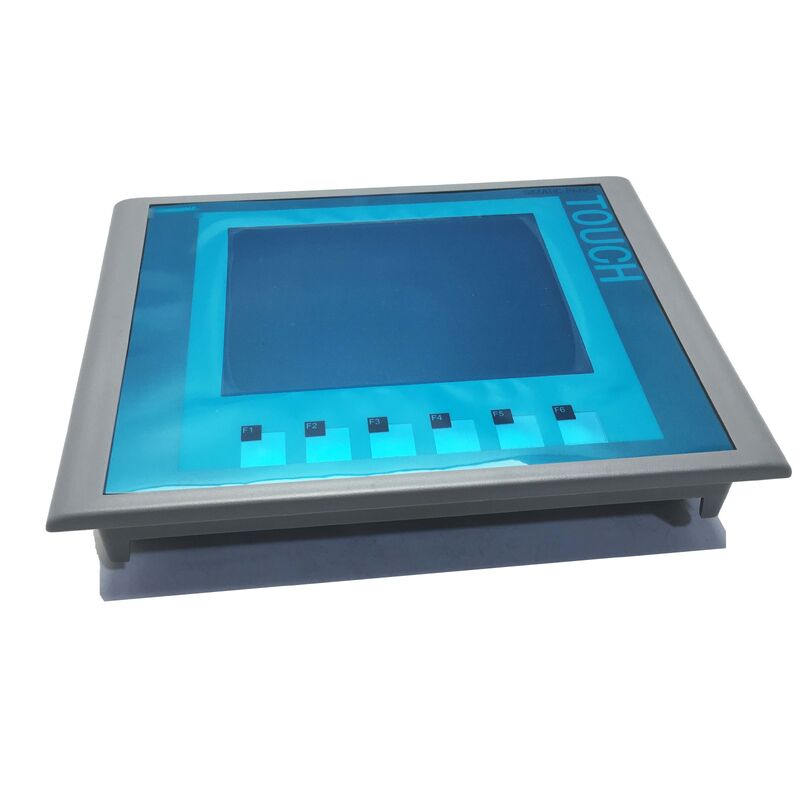

6AV6647-0AC11-3AX1 Touch Screen Genuine New 6AV66470AC113AX1

SIMATIC WinCC flexible (Compact or Standard) is the standard configuration tool for this panel generation. The project is created on a PC, downloaded to the panel via USB cable or MPI/PROFIBUS programming connection. Alternatively, TIA Portal with WinCC (V11 and later) supports migration from older panel configurations. Check the WinCC flexible system requirements for the specific firmware version installed on the panel.

No. The "DP" designation indicates this panel's sole network interface is PROFIBUS DP. It does not have a PROFINET or Industrial Ethernet port. For Ethernet-connected HMI applications, a different KTP variant with the PROFINET suffix (e.g. KTP600 Basic Color PN) is required. Connecting the DP version to an Ethernet network requires an external gateway or bridging device.

The six function keys (F1-F6) below the TFT screen are configurable in the HMI project. Each key can be assigned a function -- Start, Stop, Acknowledge, Navigate, or custom application functions. They can be programmed as momentary or latching actions. Their physical nature makes them suitable for operators using industrial gloves or for applications where tactile confirmation of a button press is preferred over touchscreen input.

The I²t value characterises the energy of the startup inrush current pulse. When the KTP600 is powered on, its internal power supply draws a brief surge current before settling to the 0.35A steady-state. A power supply or circuit protection device must tolerate this 0.5 A²*s inrush without tripping or excessive voltage drop. For most standard DIN rail 24VDC power supplies, 0.5 A²*s is within normal limits; verify the power supply's inrush tolerance if multiple panels share one supply branch.

The DP (PROFIBUS DP) and PN (PROFINET) variants of the KTP600 Basic Color are physically similar 5.7-inch TFT panels with the same display and key layout. The critical difference is the network interface: the DP variant (6AV6647-0AC11-3AX1) connects to PROFIBUS DP networks; the PN variant connects to PROFINET industrial Ethernet. They are not interchangeable -- the network infrastructure and PLC communication must match the panel variant.
