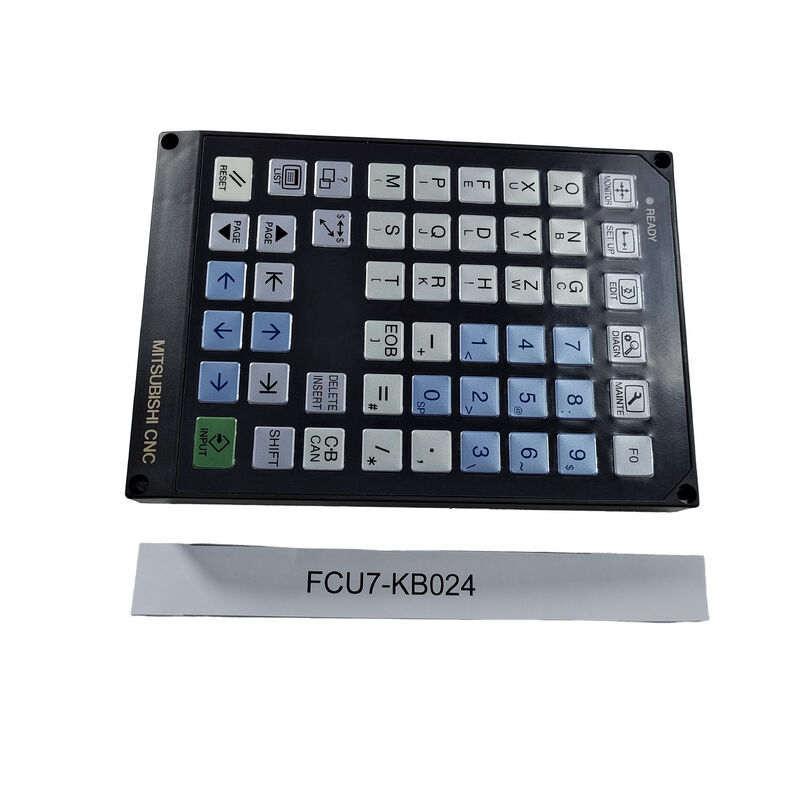

Mitsubishi FCU7-KB024 CNC Keyboard Unit
Description
The Mitsubishi FCU7-KB024 is a CNC keyboard unit with sheet keys. It provides physical key input for program editing, data entry, and screen navigation. Designed for compatible CNC operator panels, it supports daily machine setup and operation.
Technical Specifications
| Parameter |
Specification |
| Brand |
Mitsubishi Electric |
| Model |
FCU7-KB024 |
| Product Type |
CNC keyboard unit |
| Key Type |
Sheet keys |
| Supported Configuration |
M70V with 8.4-inch display |
| Protection |
IP65F protection for keyboard internal components |
| Primary Function |
CNC operator input |
Panel Integration
The keyboard works alongside the CNC display. Its IP65F protection helps shield internal components from water and oil. Before replacement, confirm the original keyboard number, panel layout, and interface connections. Display size alone does not establish compatibility.
Application Fields
Application areas include CNC machining centers, milling equipment, and automated metalworking systems using a compatible control configuration. The keyboard supports operator tasks during machine setup, program adjustment, and production monitoring.
FAQ
Q1: What is the FCU7-KB024 used for?
A: CNC data entry, program editing, and screen navigation.
Q2: What type of keys does it use?
A: Sheet keys.
Q3: Which M70V display configuration does it support?
A: The 8.4-inch display configuration.
Q4: What should be checked before replacement?
A: Match the keyboard number, panel layout, and interface connections.
