AS2211F-02-10SA New SMC Pneumatic Joint AS2211F-02-10SA New Sealed

SMC AS2211F-02-10SA Meter-In Elbow Speed Controller

Pneumatic Motion Applications

The SMC AS2211F-02-10SA controls incoming airflow to a pneumatic actuator. Application areas include packaging machinery, automated assembly, and material handling equipment with meter-in control circuits.

Adjust and Lock

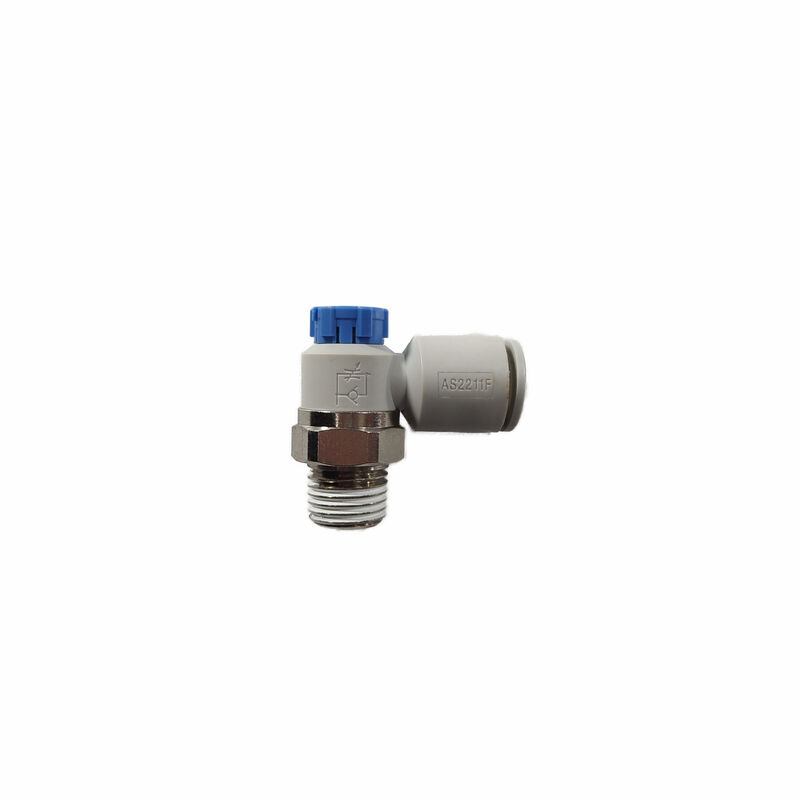

The needle adjustment sets airflow to regulate actuator speed. A push-lock knob secures the setting after adjustment. Its elbow layout routes tubing at a right angle to the threaded port.

Connection and Operating Data

Installation Essentials

Check the flow-direction symbol before installation. Insert the tube fully and verify retention. Adjust speed gradually, then lock the knob. Keep operating pressure within the limits of both the controller and the selected tubing.

FAQ

Q1: Does this model control inlet or exhaust airflow?
A: It meters airflow entering the actuator.

Q2: What tube size does it accept?
A: Tubing with a 10 mm outside diameter.

Q3: What thread does it use?
A: R 1/4 tapered pipe thread with sealant.
