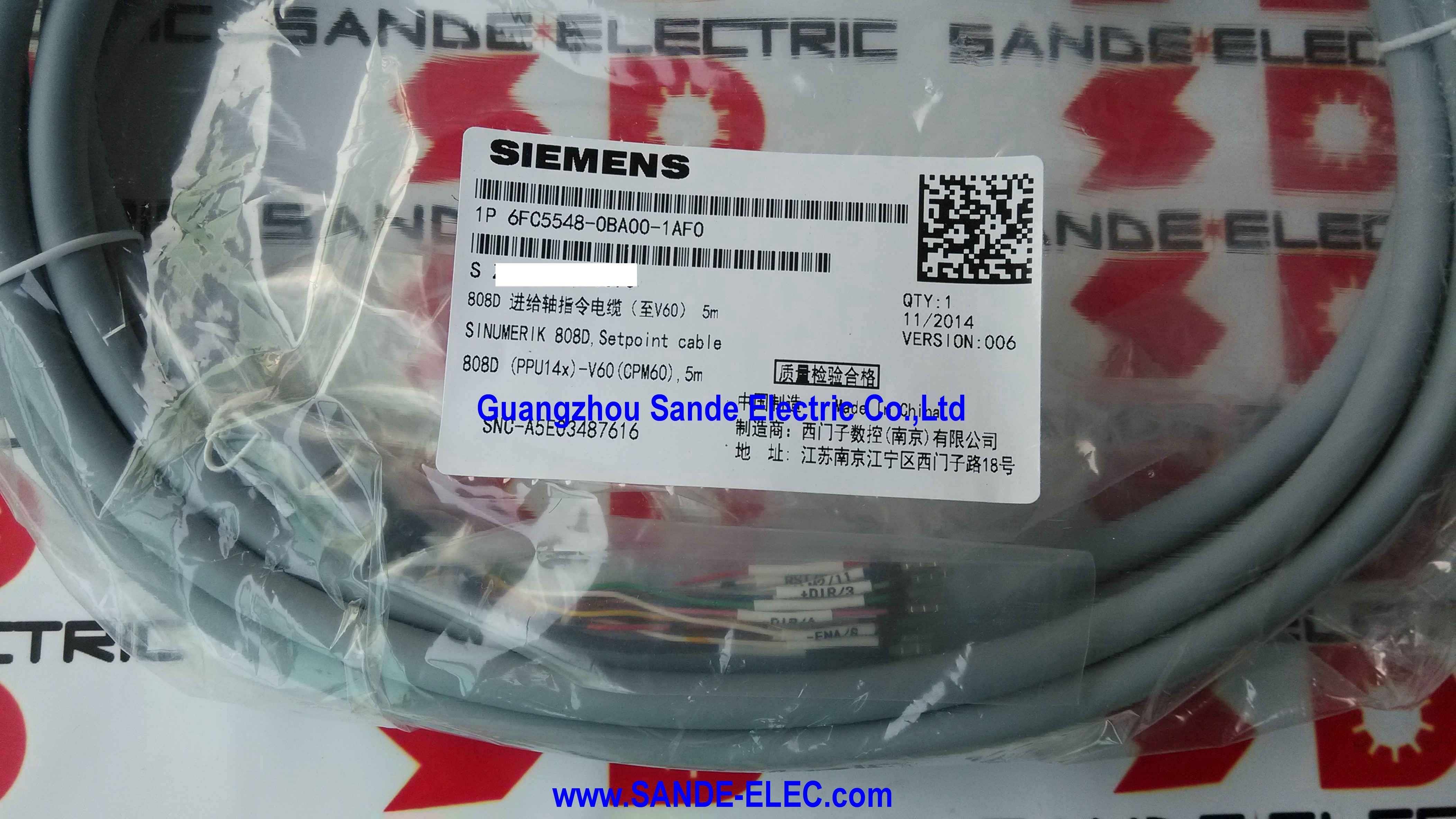

Setpoint Cable 6FC5548-0BA00-1AF0 6FC5 548-0BA00-1AF0 6FC5548-OBAOO-1AFO

6FC5548-0BA00-1AF0 | Siemens SINUMERIK 808D Setpoint Cable — 5m / PPU14X to CPM60 / SINAMICS V60 Feed Axis / MOTION-CONNECT

Feed Axis Setpoint Cable for SINUMERIK 808D and SINAMICS V60

The 6FC5548-0BA00-1AF0 is the 5-metre feed axis setpoint cable connecting the SINUMERIK 808D PPU14X (Panel Processing Unit, 14x variant) to the SINAMICS V60 CPM60.1 Controlled Power Module — the drive unit for the machine tool's CNC servo feed axes. This cable forms the command and feedback link between the 808D CNC brain and the V60 servo drive, enabling closed-loop position control of turning, milling, and grinding axes.

The PPU14X-to-CPM60.1 interface is the fundamental hardware connection in every SINUMERIK 808D machine tool built around the SINAMICS V60 servo platform — without the setpoint cable, there is no command communication between CNC and drive.

Key Product Information

SINUMERIK 808D Machine Tool Architecture

The 6FC5548-0BA00-1AF0 occupies a defined position in the 808D system connection:

Turning machine configuration: A two-axis CNC lathe requires two setpoint cables (one per axis — X and Z) plus the spindle setpoint cable. Each 6FC5548-0BA00-1AF0 connects one PPU14X axis output to one CPM60.1 drive module.

Milling machine configuration: A three-axis CNC milling machine requires three setpoint cables (X, Y, Z) plus the spindle connection. Each cable independently connects its axis.

The 808D's integrated architecture — single PPU, individual V60 CPM60.1 per axis, MOTION-CONNECT setpoint cables — is designed for straightforward commissioning: each cable is pre-terminated for direct plug connection between matched PPU and V60 components.

Applications

SINUMERIK 808D turning machines: CNC lathes using SINAMICS V60 drives for the X (cross-slide) and Z (carriage) axes — each axis requires one 6FC5548-0BA00-1AF0 setpoint cable.

SINUMERIK 808D milling machines: CNC machining centres with SINAMICS V60-driven X, Y, Z axes using the same cable type per axis.

OEM CNC machine production: Machine tool manufacturers building new SINUMERIK 808D machines — the setpoint cable is a standard BOM component for every machine with a PPU14X controller.

808D drive system maintenance: Replacement setpoint cables for installed SINUMERIK 808D machines — when the original cable develops a fault or is damaged during maintenance work.

FAQ

Q1: How many 6FC5548-0BA00-1AF0 cables does a SINUMERIK 808D machine tool require?

One cable per CNC feed axis — a 2-axis turning machine needs two, a 3-axis milling machine needs three. Each cable connects one PPU14X axis output to one SINAMICS V60 CPM60.1 drive module. The spindle setpoint (6FC5548-0BA05) is a separate cable ordered additionally if the machine has a CNC spindle drive.

Q2: What happens to axis position control if the 6FC5548-0BA00-1AF0 setpoint cable fails?

A failed setpoint cable breaks the velocity command path between the PPU and the V60 drive. The affected axis loses speed control — the SINUMERIK 808D generates a drive communication fault alarm for that axis, and the axis will not respond to position commands. The machine initiates a safety stop (servo enable removal across all axes) to prevent uncontrolled motion.

Q3: Is 6FC5548-0BA00-1AF0 compatible with SINAMICS V70 or only V60?

The 6FC5548-0BA00 series is specified for SINAMICS V60 CPM60.1 — the original 808D feed axis drive family. SINAMICS V70 (the successor drive system used with SINUMERIK 808D ADVANCED) uses a different setpoint cable type (6FC5548-0BA20 series). Confirm which drive platform is installed before ordering the replacement cable.

Q4: What precautions apply when replacing 6FC5548-0BA00-1AF0 on a live machine?

The 808D PPU and V60 drives must be fully powered down before disconnecting or reconnecting setpoint cables. The interface connectors carry both signal voltages and logic power — connecting or disconnecting under power can damage the PPU's axis interface circuits or the V60's input stage. Power the system down, allow capacitors to discharge, then swap the cable before powering back up and verifying axis function.
