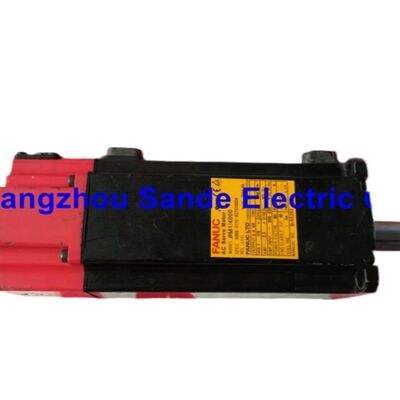

FANUC A06B-0116-B275#0008 — Beta βM1/4000 AC Servo Motor, Straight Shaft with Keyway and Brake

Overview

Part Number: A06B-0116-B275#0008 (A06B0116B275#0008)

Full Description: AC Servo Motor βM1/4000 — Straight Shaft, Keyway, Holding Brake, bA64b Encoder

Series: FANUC Beta (β) Series AC Servo Motor

Model Designation: βM1/4000

The Motor, in Plain Terms

The FANUC A06B-0116-B275#0008 is a compact, brushless AC servo motor from FANUC's Beta (β) series — the product line FANUC designed specifically for cost-efficient, high-reliability axis drive in machine tools and industrial positioning equipment. This particular unit is the βM1/4000 model: approximately 1 Nm of rated torque, with a maximum speed of 4,000 rpm.

What sets the #0008 apart from other variants in the A06B-0116 family is its combination of hardware features: a straight shaft with keyway for direct mechanical coupling, a spring-applied holding brake for positional retention at rest, and the bA64b absolute pulsecoder (encoder part number A860-0374-T303) for closed-loop position and speed feedback. These three elements together make this motor a go-to choice for vertical or inclined axes where gravity load must be held without relying on drive power, and wherever absolute position retention eliminates homing cycles after a power cycle.

FANUC built the Beta series around a different philosophy than the Alpha (α) series motors. Where the Alpha line targets the highest dynamic performance at the upper end of machine tool demands, the Beta series prioritises simplicity, compactness, and dependable operation in lighter-duty feed axis applications — multi-axis machining centres, small CNC lathes, drilling equipment, tapping units, and similar machine types where a modest-torque, fast-responding axis drive is exactly what the application needs. The βM1/4000 is among the smallest motors in this lineup, and its low inertia contributes to fast acceleration response in rapid positioning cycles.

Technical Specifications

Brake: How It Works and Why It Matters

The holding brake on the A06B-0116-B275#0008 is spring-applied and electrically released — meaning it engages automatically when the 24V DC supply is removed and disengages when power is applied. This is a fail-safe design: if servo power is cut, if an emergency stop is triggered, or if the machine loses power unexpectedly, the brake locks the axis immediately without any active command.

This makes the motor well-suited for:

• Vertical Z-axis applications, where the weight of the spindle head, tool, or workpiece would cause the axis to drift or drop if the drive were de-energised without a mechanical lock
• Inclined or angled axes, particularly on multi-axis machines where gravity components act along the travel direction
• Applications requiring positional hold during tool changes, probing, or workpiece clamping, where axis movement during a non-cutting phase would cause errors or damage

One important point for installation: the brake coil is inductive, and a surge absorber must be installed in the cabinet at the point where the 24V DC brake supply switches. Without a properly rated absorber, the voltage spike at brake coil de-energisation can damage the switching device or interfere with nearby electronics. This is a standard FANUC requirement for all brake-equipped servo motors.

Encoder: bA64b Absolute Pulsecoder

The encoder fitted to the A06B-0116-B275#0008 is the bA64b — FANUC's absolute digital serial pulsecoder for the Beta motor family, with 64,000 counts per revolution. Unlike incremental encoders, which require a reference-return (homing) cycle every time the machine powers up, the bA64b retains absolute position across power cycles. The CNC knows exactly where every axis is the moment the system comes online, with no homing sequence required.

This matters most in production environments. Every homing cycle takes time — typically 30 to 60 seconds per axis depending on travel speed and axis configuration. A machine with three or four Beta axes running the bA64b encoder can resume productive cutting almost immediately after a restart, a power interruption, or a controlled shutdown. Over the course of a full production shift, the cumulative time saving is measurable.

The absolute position is retained using the backup function built into the amplifier or CNC. No battery is housed in the motor itself — the retention circuitry resides on the drive side, which simplifies motor replacement since the encoder does not carry machine-specific data that would be lost during a swap.

Compatible Amplifiers and CNC Controls

The A06B-0116-B275#0008 operates within FANUC's Beta servo ecosystem and is compatible with a broad range of FANUC amplifiers and CNC platforms:

Compatible Servo Amplifiers

Compatible CNC Controls

FANUC Series 15, 16, 16i, 18, 18i, 20, 20i, 21, 21i, 0i, 0i-Mate, and Power Mate i.

The motor ID number must be correctly configured in the CNC servo parameters after installation. On i-series controls, this is typically done through the servo setting screen with parameter writing enabled (PWE = 1), followed by the standard FANUC servo parameter initialisation procedure. The motor ID is selected based on the motor model designation (the four middle digits of the A06B-xxxx-Bxxx part number).

Where This Motor Is Used

The βM1/4000 frame and its output characteristics fit a specific class of machine tool applications particularly well. Some typical installations:

Small and mid-range machining centres — The compact footprint of the Beta M series makes it a natural match for secondary axes on small vertical machining centres: the fourth axis, tool changer drive, pallet changer positioning, or auxiliary table movement. The holding brake ensures that an index position is maintained without continuous servo torque, reducing thermal load during non-cutting phases.

CNC drilling and tapping machines — Fast Z-axis cycling at moderate loads is exactly where the βM1/4000 performs consistently. The low inertia supports rapid acceleration without demanding peak torque beyond the motor's capability, and the absolute encoder eliminates homing overhead at the start of each batch run.

Dedicated transfer line fixtures — In automated production lines where a servo axis moves a fixture or clamp between two fixed positions, the combination of fast 4,000 rpm speed capability with integral brake and absolute position retention is practical and reliable over long production runs.

Peripheral and auxiliary machine axes — Chip conveyor drives, rotary table positioning, coolant nozzle positioning, and other auxiliary functions benefit from a compact, self-contained servo motor that integrates cleanly into the existing FANUC control architecture without adding a separate drive family.

Installation and Maintenance Notes

Shaft coupling. The keyed straight shaft accepts standard keyway couplings. When using a rigid coupling to a ball screw, the run-out of the screw shaft should be 0.01 mm or less to avoid periodic load on the motor bearings that can cause premature wear and encoder noise.

Cable routing. The motor's IP65 rating protects against water jet splash from any direction, but connector sealing depends on the mating connector being fully engaged and locked. Route the encoder cable with a drip loop — a downward bend in the cable before it reaches the connector — to prevent fluid from tracking along the cable into the connector body.

Brake circuit. Wire the 24V DC brake supply through a relay or transistor output, not through a mechanical switch alone. Install a flyback diode or RC suppressor across the coil terminals to protect the switching circuit.

Storage. If units are being held in inventory, store in a dry indoor environment between 10°C and 30°C, away from condensation risk, and avoid locations with vibration. For extended storage, the motor shaft should be turned manually once every few months to redistribute bearing grease and prevent flat spots.

FAQ

Q1: What is the difference between the A06B-0116-B275#0008 and the A06B-0116-B275#7008, and are they interchangeable?

The A06B-0116-B275#0008 is the standard variant with a straight shaft and keyway, while #7008 is listed as an alternate cross-reference by some suppliers. Both share the same core motor specifications — βM1/4000 model, straight keyed shaft, holding brake, and bA64b encoder. In practice, these two part numbers are treated as functionally equivalent by many FANUC distributors and service organisations, and the same motor may carry either designation depending on the market it was supplied to or how it was originally ordered. If you are sourcing a replacement unit, either part number will serve the same machine installation provided the other specifications (shaft type, brake, encoder type) match your application requirements. Always verify the complete suffix and encoder part number when placing an order to confirm the full hardware specification.

Q2: The machine has a vertical axis using this motor. What is the correct procedure for handling the brake during servo parameter setup and commissioning?

During initial commissioning on a vertical axis, the brake must be manually released (by applying 24V DC to the brake coil) before attempting any servo movement with the drive enabled, including the servo parameter auto-tuning sequence. Attempting to drive the axis against an engaged brake will generate following errors and can damage the coupling or shaft. On FANUC i-series controls, confirm the brake release signal logic in the PMC ladder — the brake should release when the servo ready (SRDY) signal is confirmed and the drive enable output is active, and should re-engage within a short delay (typically 200–500 ms) after the drive is disabled or an alarm occurs. The exact timing parameters are set in the PMC and should be validated with the actual load to ensure the axis does not move after the brake engages. A surge absorber across the brake coil terminals inside the cabinet is mandatory; without it, the switching transient can cause intermittent CNC alarms or contact damage.

Q3: Does the bA64b encoder in the A06B-0116-B275#0008 require a battery for absolute position retention, and what happens if the encoder loses power?

No battery is located inside the motor itself. Absolute position retention for the bA64b encoder is handled by the servo amplifier or the CNC unit — the relevant backup circuitry resides in the drive electronics, not in the motor. This is an important practical point for motor replacement: when you swap an A06B-0116-B275#0008, the encoder itself does not carry any stored machine position data that would be lost. After a motor replacement, the CNC will typically request a reference position re-establishment on that axis (the machine may show an absolute position lost alarm, requiring the operator to manually move the axis to a reference point and confirm the position). Once that one-time reference is set, normal absolute operation resumes. The specific procedure varies depending on the CNC model and the machine builder's implementation of the zero-point setting routine.

Q4: Can the A06B-0116-B275#0008 be driven by an Alpha series SVM amplifier instead of the standard Beta SVU amplifier?

Yes. FANUC's Beta series motors, including the βM1/4000, are compatible with Alpha SVM module amplifiers as well as the Beta SVU family. The SVM1-12 (A06B-6079-H101) and SVM2 dual-axis modules in the 12A current class are commonly used with the βM1/4000. The motor ID number configuration in the CNC servo parameters covers the same motor model regardless of whether the drive is a Beta SVU or Alpha SVM unit. Mixing Beta motors with Alpha amplifiers is a documented and supported configuration used widely in machines where an integrator chose the Alpha drive platform for other axes but needed the smaller Beta motor frame for a low-torque axis. The amplifier's current rating must still be appropriate for the motor's continuous and peak current requirements, and the cable pinout differences between Beta and Alpha motor connectors need to be addressed with the correct adapter cable or by verifying the specific cable part number for the intended amplifier.

Q5: What are the signs that this motor needs replacement rather than repair, and is field repair of the bA64b encoder practical?

The most common reasons to replace an A06B-0116-B275#0008 rather than repair it are: persistent SV (servo) alarms related to encoder communication errors that do not clear after cable inspection and connector reseating; physical damage to the shaft, keyway, or housing from a crash or overload; winding insulation failure confirmed by a low insulation resistance measurement (typically below 1 MΩ at 500V DC is a concern for FANUC motors); and brake failure where the brake no longer holds rated torque or the coil has an open circuit. Field replacement of the bA64b encoder disc or electronics is generally not practical or recommended without specialist equipment — the encoder is a precision optical assembly that requires clean-room conditions, calibrated tooling for disc installation, and functional test equipment to verify signal integrity after reassembly. In most field situations, it is faster and more reliable to replace the complete motor unit. Reputable FANUC service organisations can overhaul the motor and replace the encoder under controlled conditions, which is a valid option when original replacement units are in short supply.
