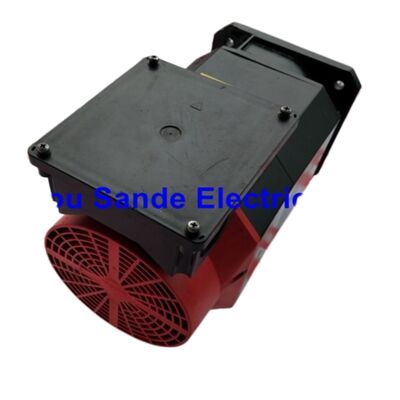

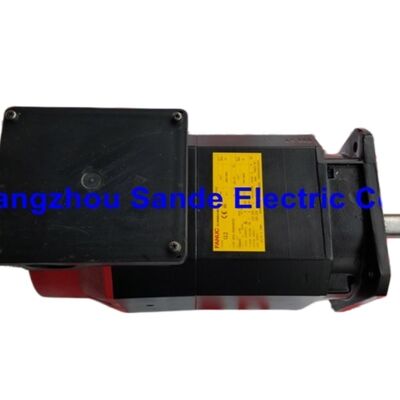

FANUC A06B-0852-B904#0D02 — Alpha Series AC Spindle Motor, Model A2, Built-In MZ Sensor

Overview

Part Number: A06B-0852-B904#0D02 (also referenced as A06B0852B904#0D02)

Motor Series: FANUC Alpha (α) AC Spindle Motor

Motor Model: Alpha A2 (α2)

Key Feature: Built-in MZ spindle position sensor — enables rigid tapping and spindle orientation without external position coder

The FANUC A06B-0852-B904#0D02 is an AC spindle motor drawn from FANUC's first-generation Alpha series spindle motor family. At its core, it is a Model A2 unit — the compact end of the Alpha spindle lineup — paired with a factory-integrated MZ magnetic sensor built into the rear of the motor housing. That sensor integration is what defines the B9xx naming tier and separates this motor from otherwise identical A2 variants that carry no built-in position feedback. The result is a self-contained spindle motor that delivers speed control, spindle orientation, and rigid tapping capability without requiring a separately mounted external position coder on the machine spindle.

This configuration was designed for smaller CNC machining centres and drilling-and-tapping machines — in particular, the FANUC Robo Drill and comparable compact vertical machining platforms where space around the spindle is limited and keeping the sensor count to a minimum simplifies the machine design.

Key Specifications

The MZ Sensor: What It Does and Why It Matters

All FANUC Alpha series spindle motors include a basic pulse generator — a toothed magnetic ring with a pickup head that delivers A/B phase sine wave signals back to the spindle amplifier. These signals are used exclusively for speed regulation in standard operation. What they lack is a reliable one-revolution index signal (Z phase), and that omission becomes critical the moment the machine needs to do anything beyond simple speed control.

Spindle orientation and rigid tapping both require accurate rotational position feedback, not just speed. Without an index channel, the spindle amplifier cannot identify where the shaft is in a single rotation — meaning it cannot stop at a repeatable angular position (orientation), and it cannot synchronise spindle rotation with Z-axis feed during tapping (rigid tapping).

To solve this, FANUC spindle motors in the Bx9x series incorporate a built-in MZ sensor — a second magnetic pickup assembly mounted inside the motor housing at the rear, alongside a position ring with a dedicated single-tooth or cutout feature that generates one clean pulse per shaft revolution. This Z-channel output gives the spindle amplifier the reference it needs to:

• Lock the spindle to a fixed angular position for automatic tool change (ATC) operations
• Maintain synchronised spindle-to-Z-axis coupling throughout a tapping cycle
• Perform Cs contour axis control on systems equipped with the appropriate CNC software option

The alternative — fitting an external BZ sensor to the machine spindle itself, or installing a position coder driven off the spindle via a timing belt — works equally well technically, but adds hardware cost, alignment sensitivity, and potential failure modes. For compact machines where the motor is direct-coupled to the spindle, the built-in MZ approach is generally simpler and more robust over a machine's service life.

A2 Flange and Keyed Shaft Configuration

The A06B-0852 spindle motor body uses an A2 flange mount — a 150 mm centering diameter interface that was the standard for compact CNC machining centres and FANUC's own Robo Drill product line. This mount integrates directly with the machine's spindle head casting; the flange lip centres the motor on the bore, and a bolt circle secures it.

The output shaft is a keyed cylindrical shaft, 28 mm in diameter. The keyway provides a positive mechanical interlock with the spindle coupling or gear, ensuring torque is transmitted reliably without depending solely on clamping force. This is the correct design for high-torque, high-cycling duty where a keyless interference fit could relax over time.

For applications in which a plain smooth bore coupling is used (clamping-force torque transmission), the equivalent variant is the A06B-0852-B902, which shares the same motor body and flange but omits both the keyway and the built-in MZ sensor. If the machine requires rigid tapping or orientation and uses a keyed coupling, the B904 is the appropriate choice.

Compatible Spindle Amplifiers

The A06B-0852-B904#0D02 is designed to operate with FANUC Alpha series spindle amplifier modules (SPM), connected within an Alpha amplifier stack that also includes the servo axis modules and power supply module. Specific SPM compatibility depends on the current rating required for the A2 motor and the number of spindle channels in the machine. Standard pairing on compact machining centres is a single-channel SPM with an appropriate continuous current rating for the A2 output.

On machines equipped with FANUC 0i, 16i, 18i, 21i, or earlier Series 16/18/0 CNC controls, the MZ sensor output from the B904 motor connects to the spindle amplifier's JYA2 feedback connector. Correct parameter settings must be applied in the CNC to tell the control that the MZ built-in sensor is present and being used for position feedback — failing to set these parameters will prevent rigid tapping and orientation from functioning even with the correct motor installed.

Alpha A2 Spindle Motor Family — Variant Summary

The A06B-0852 series covers the FANUC Alpha A2 spindle motor in a range of configurations. Understanding the differences prevents cross-variant ordering errors.

All A06B-0852 variants share the same Alpha A2 motor core. The differences are in mounting style, shaft configuration, sensor equipment, and the #xxxx suffix options. When replacing a B904, the replacement must also be a B904 (or equivalent) — substituting a B902 removes the built-in MZ sensor, which will disable rigid tapping and spindle orientation unless an external BZ sensor or position coder is added to the machine.

Sourcing and Repair Considerations

The FANUC Alpha series spindle motor range — including the A06B-0852 family — has been superseded by the current αi series (A06B-14xx family), which uses αiSP spindle amplifiers and αiM or αiSP motor technology. New-production A06B-0852-B904 units are no longer manufactured. Procurement options are:

New-old-stock (NOS): Factory-original sealed units through authorised FANUC spare parts channels or established industrial surplus distributors. Stock is finite and reduces over time.

Refurbished exchange: Fully disassembled, rewound if necessary, rebuilt with new bearings, and dynamically tested on a spindle motor test bench. The MZ sensor assembly should be inspected and re-calibrated during any rebuild to confirm the A/B/Z signal amplitudes and phase relationships meet FANUC specification. A refurbished exchange unit at the correct spec is often the most cost-effective and technically reliable option for a machine that is otherwise in good condition.

Repair of the original unit: When the motor body, frame, and shaft are sound but bearings, windings, or the MZ sensor are the source of failure, in-place repair is viable. Bearing replacement on Alpha A2 spindle motors is a straightforward maintenance task. Winding failures due to insulation breakdown from coolant contamination or thermal degradation require rewinding, which restores the motor but is more labour-intensive.

FAQ

Q1: What is the difference between the A06B-0852-B904 and the A06B-0852-B902, and does it matter for my machine?

It matters significantly. Both motors are built on the same FANUC Alpha A2 spindle motor body with the same A2 flange, 28 mm keyed shaft, and 2.2 kW continuous rating. The critical difference is that the B904 includes a built-in MZ magnetic sensor that provides speed detection plus a one-revolution Z-phase index signal, while the B902 has no built-in position sensor at all — only the basic A/B pulse generator for speed control. If your machine relies on the motor's built-in sensor for rigid tapping or spindle orientation, you must use the B904. Installing a B902 in its place will cause the CNC to lose position feedback at the motor, resulting in orientation failure and rigid tapping alarms unless an external BZ sensor or position coder is added to compensate. Always verify the original motor model against the machine's connection diagram before ordering a replacement.

Q2: Can the A06B-0852-B904#0D02 be used with a FANUC αi series spindle amplifier instead of the original Alpha SPM?

In many cases this is electrically possible, but it is not a straightforward swap and requires careful engineering review. The Alpha spindle motor and the αi series spindle amplifier use compatible motor voltage and feedback signal conventions, but the feedback connector pinouts, cable assemblies, and CNC parameters differ between the Alpha and αi amplifier generations. FANUC has published compatibility guidance for specific upgrade paths. If the αi SPM being considered is part of a complete control upgrade (for example, replacing an older Series 16 with a 30i or 0i-MD), the new CNC and amplifier will be commissioned together and the motor parameters can be set correctly during that process. Using an αi amplifier as a direct drop-in replacement for an Alpha SPM in an otherwise unchanged older machine is more complex and should be confirmed with FANUC or a qualified integrator before proceeding.

Q3: After the spindle motor is replaced, why is spindle orientation no longer working even though the new motor is the same part number?

Spindle orientation on a FANUC system requires the CNC to have calibrated position data tied to the specific motor and spindle assembly. After any spindle motor replacement — even with an identical part number — the mechanical relationship between the motor shaft, spindle, and the reference position stored in the CNC parameters will have changed. The spindle orientation stop position is defined by a parameter in the CNC (typically related to parameter No. 4031 or equivalent on the control in use) that stores an angular offset from the MZ sensor's Z-phase pulse to the desired stop angle. After installing the replacement motor, a spindle orientation re-adjustment procedure must be performed: command the spindle to orient, then measure the stop angle against the required tool-change position, calculate the angular difference, and update the offset parameter accordingly. This is a normal commissioning step, not an indication of a motor fault.

Q4: What are the common failure modes for the A06B-0852-B904 that require replacement or repair?

The most frequently encountered failures on this motor fall into three categories. Bearing failure is the most common — the front and rear shaft bearings wear over time through normal use, showing up initially as elevated noise and vibration at speed, then developing into shaft runout that affects machined surface finish. Bearing replacement early, before secondary damage occurs, is the most cost-effective maintenance action. MZ sensor faults are the second category: the magnetic pickup head and the position ring inside the motor can be damaged by coolant ingress or contamination, producing erratic Z-phase signals that cause intermittent orientation failures and spindle alarms (typically SP9001, SP9030, or equivalent on Series 0i/16i controls). Finally, insulation breakdown in the stator windings results from prolonged exposure to cutting fluid contamination, thermal overloading, or moisture ingress — this produces winding resistance imbalance and insulation resistance faults, and requires rewinding to correct. On machines where the motor is frequently exposed to coolant, periodic insulation resistance checks (annually or at scheduled maintenance intervals) give early warning before a winding fault causes an unplanned production stop.

Q5: Is there a direct FANUC αi series replacement motor for the A06B-0852-B904, and what does the changeover involve?

The functional equivalent in FANUC's current αi spindle motor line would be in the A06B-14xx-B9xx series — specifically models in the αiI 2 family, which covers the same power class and includes factory-fitted built-in sensor variants. However, this is not a plug-in replacement. The αi series motor uses a different rear connector arrangement, αi-compatible feedback cables, and requires an αi series spindle amplifier module (αiSP). If the existing machine uses an Alpha SPM amplifier, this must also be replaced. The CNC itself needs to be confirmed as compatible with αi spindle drive before any αi motor is installed. In practical terms, moving from Alpha to αi on an existing machine is a spindle drive upgrade project, not a maintenance swap. For machines where the downtime cost of a planned upgrade is justified by improved parts availability and long-term support, this path is worth evaluating with a FANUC authorised service partner. For machines that are otherwise reliable and need only a like-for-like motor replacement, sourcing a refurbished A06B-0852-B904 is the more straightforward and lower-risk approach.
