NEW HC-SFS502BG2

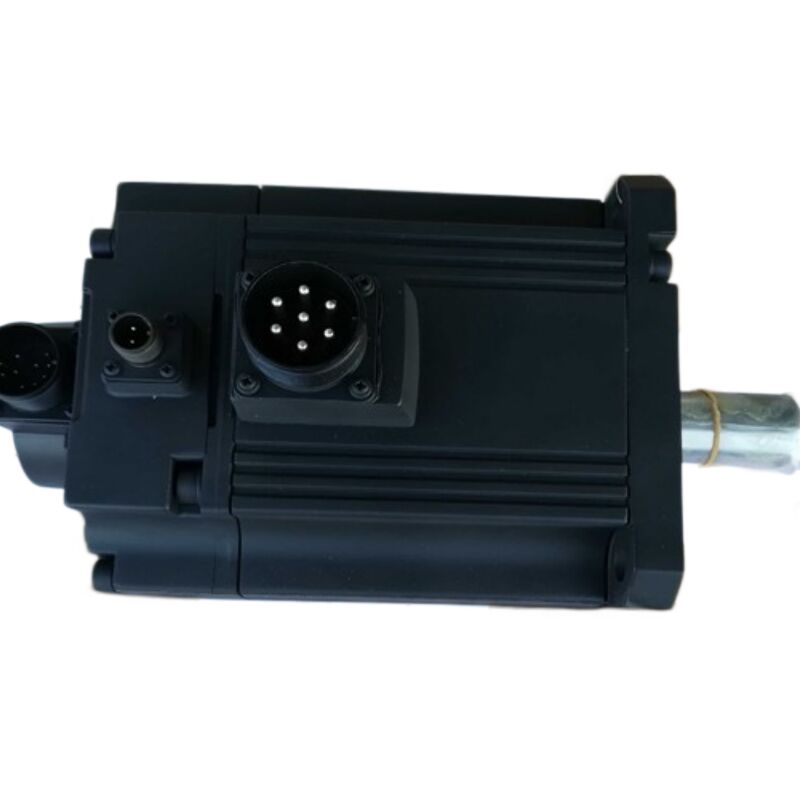

New Mitsubishi Servo Motor HC-SFS502BG2 or HCSFS502BG2
AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (17-bit) + oil seal - Mitsubishi Electric (MELSERVO J2S series) - Rated output 5000W / 5kW - 17-bit (equivalent to 131072ppr) feedback - Rated current 26A - Supply voltage 200Vac class - Rated torque 23.9Nm nominal - Rated rotational speed 2000rpm - 176x176mm flange mounting - IP65 - rated for 0...+40°C ambient
| Parameter |
Specification |
| Primary Brand |
Mitsubishi Electric |
| Main Function |
AC Servo Motor |
| Product Series / Family |
MELSERVO J2S Series |
| Sub-range Name |
HC-SF Series |
| Functions |
AC Brushless Rotary Servo Motor |
| Design |
Straight Shaft |
| Feedback Encoder |
Built-in Absolute Encoder (17-bit) |
| Additional Features |
Oil Seal |
| Motor Type |
Medium Inertia / Medium Power Capacity |
| Supply Voltage (AC) |
200 Vac Class |
| Rated Current |
26 A |
| Rated Active Power |
5000 W (5 kW) |
| Rotational Speed |
2000 rpm |
| Maximum Speed |
2000 rpm |
| Rated Torque |
23.9 Nm |
| Maximum Torque |
71.6 Nm |
| Moment of Inertia |
0.0101 kg·m² (101 kg·cm²) |
| Mounting Mode |
176 × 176 mm Flange Mounting |
| Resolution |
17-bit (Equivalent to 131072 ppr) |
| Degree of Protection |
IP65 |
| Dimensions |
H230 mm × W176 mm × D287 mm |
| Net Height |
230 mm |
| Net Width |
176 mm |
| Net Depth |
287 mm |
| Operation Temperature |
0 ~ +40 °C |
