MITSUBISHI New HG-SR202B

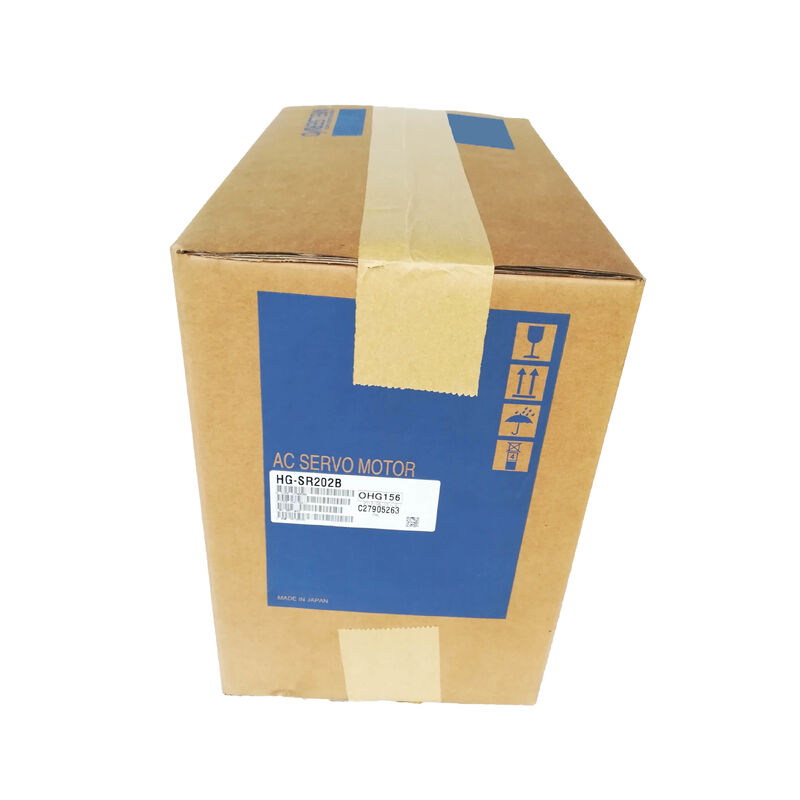

New and original Mitsubishi Servo Motor HG-SR202B or HGSR202B
HGSR202B is a servo motor from the Mitsubishi HG Series, designed with medium inertia and medium capacity for stable and precise motion control applications. This AC servo motor delivers a rated power of 2 kW with a rated speed of 2000 r/min and is equipped with an electromagnetic brake, making it suitable for industrial automation systems that require reliable positioning and holding performance.
| Parameter | Specification |
|---|---|
| Primary Brand | Mitsubishi Electric |
| Main Function | AC Servo Motor |
| Product Series / Family | MELSERVO J4 Series |
| Sub-range Name | HG-SR Series |
| Motor Type | AC Brushless Rotary Servo Motor |
| Design | Straight Shaft |
| Brake | Built-in Electromagnetic Brake |
| Encoder | Built-in Absolute Feedback Encoder (22-bit) |
| Inertia Type | Medium Inertia / Medium Power Capacity |
| Cooling Method | Natural Cooling |
| Supply Voltage | AC 200V Class |
| Rated Current | 9.6 A |
| Rated Power | 2000 W / 2 kW |
| Rated Speed | 2000 RPM |
| Maximum Speed | 3000 RPM |
| Rated Torque | 9.5 Nm |
| Maximum Torque | 28.6 Nm |
| Moment of Inertia | 0.00565 kg·m² (56.5 kg·cm²) |
| Connection Type | 2 × MS-type Connectors |
| Mounting Mode | 176 × 176 mm Flange Mounting |
| Encoder Resolution | 22-bit (4194304 ppr equivalent) |
| Protection Rating | IP67 |
| Dimensions | H228.9 × W176 × D267 mm |
| Net Height | 228.9 mm |
| Net Width | 176 mm |
| Net Depth | 267 mm |
| Operating Temperature | 0 to +40 °C |
| Storage Temperature | -15 to +70 °C |
| Maximum Radial Load | 2058 N |
| Maximum Axial Load | 980 N |
| Maximum Current | 31 A |
| Order Code / Manufacturer SKU | HG-SR202B |
![]()
