MITSUBISHI NEW HC-KFS23K Mitsubishi AC Servo Motor
lots of stock, best price offered.
Description

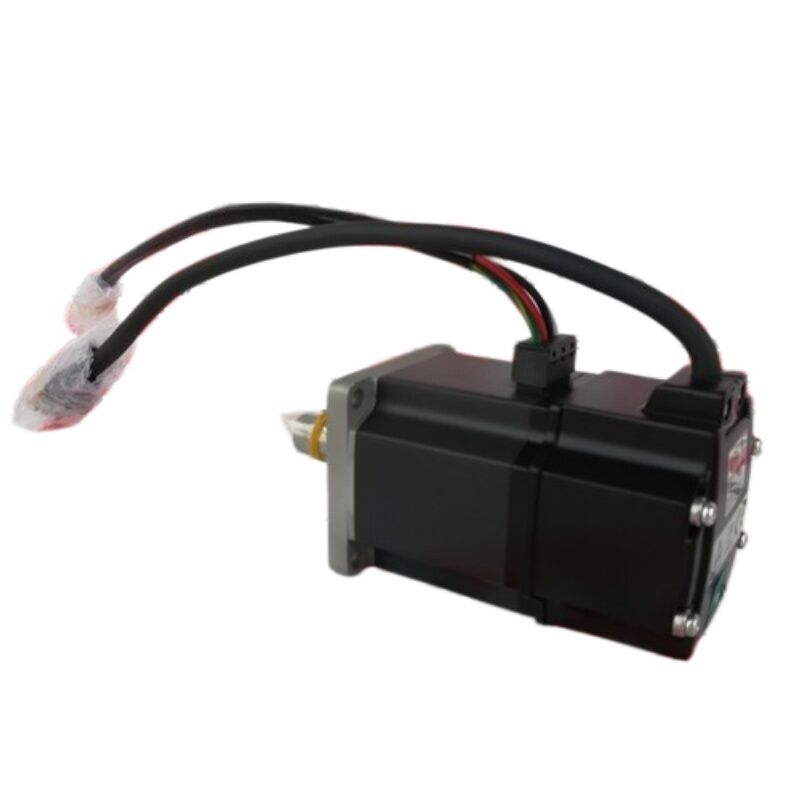

The Mitsubishi MELSERVO HC series AC servo motor HC-KFS23K provides powerful performance characteristics for automation tasks. Its rated active power is 200 watts and can operate effectively in various applications.
The motor can reach an astonishing speed of 3000 revolutions per minute under normal conditions, with a maximum speed of 4500 revolutions per minute. The motor adopts a fan cooling mechanism. It is designed for a power supply voltage of 200 volts AC, with a rated current of 1.1 amperes and the ability to handle peak currents up to 3.4 amperes.
| Specification | Details |
|---|---|
| Manufacturer | Mitsubishi |
| Product Type | AC Servo Motor |
| Product Line | MELSERVO HC |
| Part Number | HC-KFS23K |
| Weight | 1.75 lbs (0.79 kg) |
| Speed Rating | 3,000 RPM |
| Rated Active Power | 200 W |
| Nominal Torque | 0.64 Nm |
| Supply Voltage Class | 200 Vac |
| Maximum Rotational Speed | 4,500 RPM |
| Maximum Torque | 1.9 Nm |
| Encoder Resolution | 131,072 pulses/rev (17-bit) |
| Mounting Method | Flange mount (60 × 60 mm) |
| Current Rating | 1.1 A |
| Maximum Current | 3.4 A |
| Degree of Protection | IP55 |
![]()
| Brand | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 |
|---|---|---|---|---|---|
| Mitsubishi | HC352S | HC353BS | HC353S | HC452BS & OSA104S2 | HC703BS |
| Mitsubishi | HC-H203BS-A47 | HC-H203S | HC-KFS13 | HC-KFS13B | HC-KFS13K |
| Mitsubishi | HC-KFS152B | HC-KFS23 | HC-KFS23K | HC-KFS23K-S9 | HC-KFS43 |
| Mitsubishi | HC-KFS43G1 400W I=1/12 | HC-KFS73 | HC-KFS73BK | HC-KFS73K | HC-KFS73K |
| Mitsubishi | HC-MF23 | HC-MF23-UE | HC-MF43B-UE | HC-MF43K-D5 | HC-MF43-UE |
| Mitsubishi | HC-MF73K-D53 | HC-MF73-S15 | HC-MFS053B | HC-MFS13 | HC-MFS23 |
| Mitsubishi | HC-MFS23K | HC-MFS43 | HC-MFS43B | HC-MFS43B-S13 | HC-MFS73 |
| Mitsubishi | HC-MFS73BG1 | HC-MFS73BG1 1/6 | HC-MFS73BG2W5-S1 1/29 | HC-MFS-73K-S15 | HC-MFS73-S14 |
| Mitsubishi | HC-PQ13-UE | HC-PQ23 | HC-PQ23BUE | HC-PQ23B-UE | HC-PQ23K-UE |
| Mitsubishi | HC-PQ23-UE | HC-PQ43K-UE | HC-PQ43-UE | HC-RF153K-S4 | HC-RFS353B |
| Mitsubishi | HC-RP153B | HC-RP503 | HC-SF102B | HC-SF152 | hc-sf152bk-s4 |
| Mitsubishi | HC-SF152K | HC-SF153K | HC-SF202B | HC-SF52K-S1 | HC-SF702 |
| Mitsubishi | HC-SF7024B | HC-SF702B | HC-SF81K | HC-SFS102K | HC-SFS-152(B)G1H (1/59) |
| Mitsubishi | HC-SFS152B | HC-SFS202B | HC-SFS352 | HC-SFS3524 | HC-SFS3524B |
| Mitsubishi | HC-SFS-502(B) G2 (1/9) | HC-SFS-502BG2 (1/9) | HC-SFS524B | HC-SFS52B | HC-UF43K |
| Mitsubishi | HC-UFS13 | HC-UFS152K | HC-UFS23K-S1 | HC-UFS30MW8-S2-W | HF104S-A48 |
| Mitsubishi | hf104t-a48 | HF153T OSA104S2 | HF204BS | HF302S-A48 | HF-H104S-A48 |
| Mitsubishi | HF-H354S-A48 | HF-H453BS | HF-H453BS encoder | HF-H703BS | MR-J2-10A |
| Mitsubishi | MR-J2-10B | MR-J2-20A | MR-J2-20B | HF-H903BS | HF-KE43K |
| Mitsubishi | HF-KP23 | HF-KP23JK-S11 | HF-KP43BK | HF-KP43J | HF-MP13 |
| Mitsubishi | HF-MP73 | HF-SP1524BK | HF-SP2024B | HG-KR053D | HG-KR13D |
| Mitsubishi | HG-KR-23 | HG-KR43 | OBA17 | OHE25K-6 | OSA104S2 |
| Mitsubishi | OSA105S6 | OSA17 | OSA17-020 | OSA17-021 | OSA17-060 |
| Mitsubishi | OSA18-100 | OSA18-130 | OSE104 | OSE104ET | OSE104ET1 |
| Mitsubishi | OSE105S2 | OSE253 | HA-FF63C-UE | MR-J2-40A | MR-J2-40B |
| Mitsubishi | MR-J2-60A | HG-KR43BK-S000996 | HG-KR73BK-S000996 | HG-KR73JKD | HG-KR-73K |
| Mitsubishi | HG-SR102 | HG-SR202 | HG-SR202B | HG-SR352 | HG-SR502 |
| Mitsubishi | HG-SR52 | HG-SRS02 | MDS-B-SVJ2-20 | MR-J2S-10B | MR-J2S-350B4 |
| Mitsubishi | MR-J2S-40B | MR-J2-60B | MR-J2-70A | MR-J2-70B | MR-J2-100A |
| Mitsubishi | MR-J2-100B |
