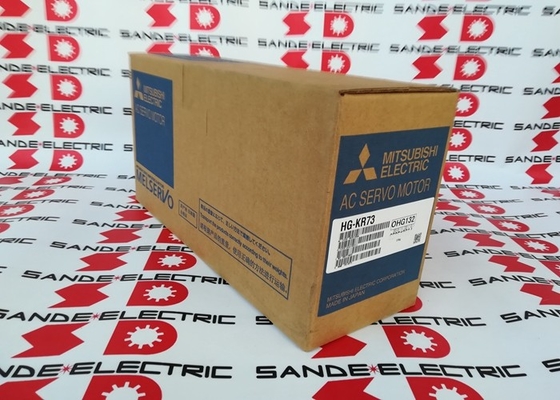

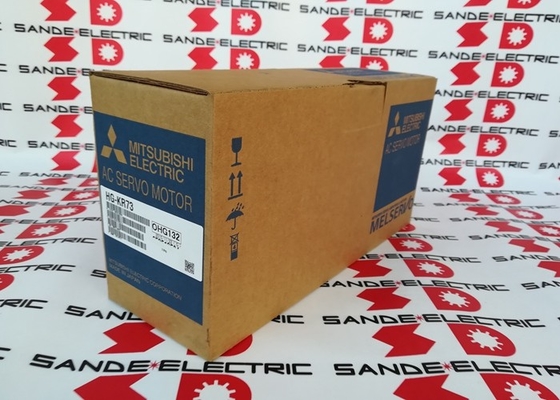

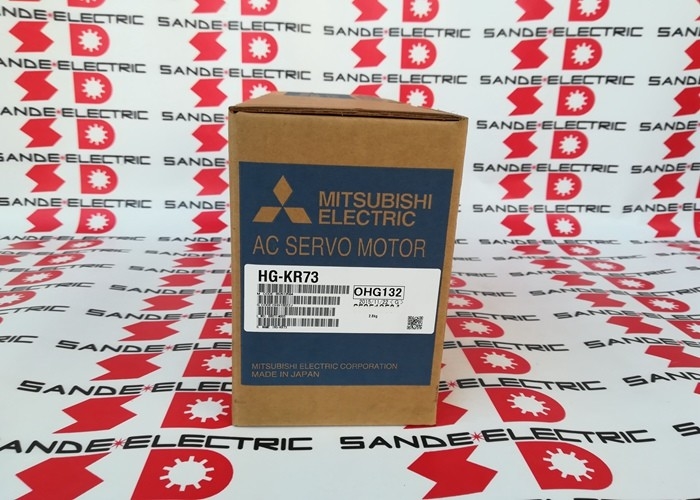

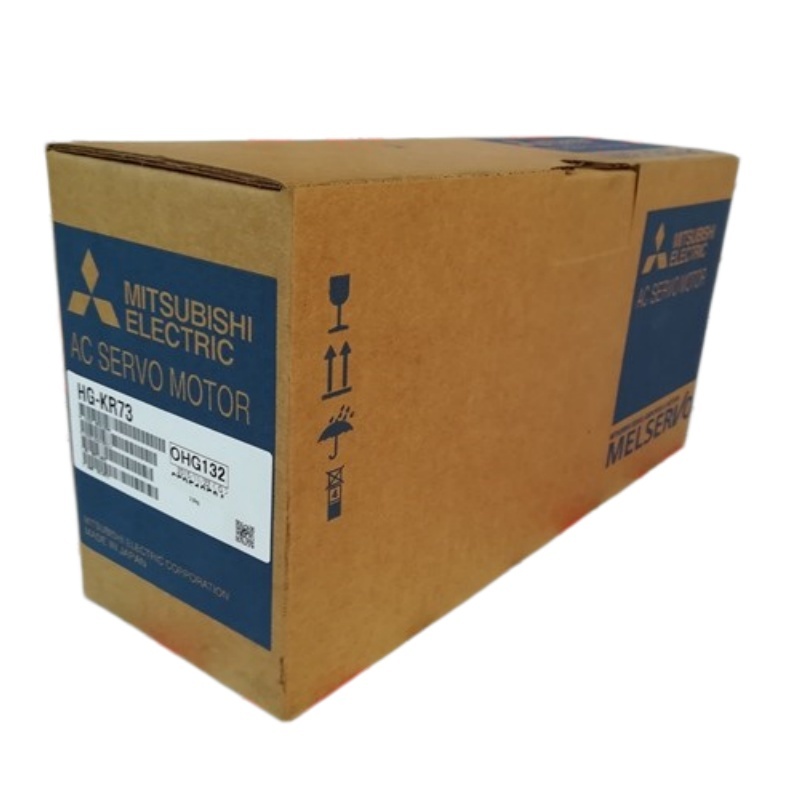

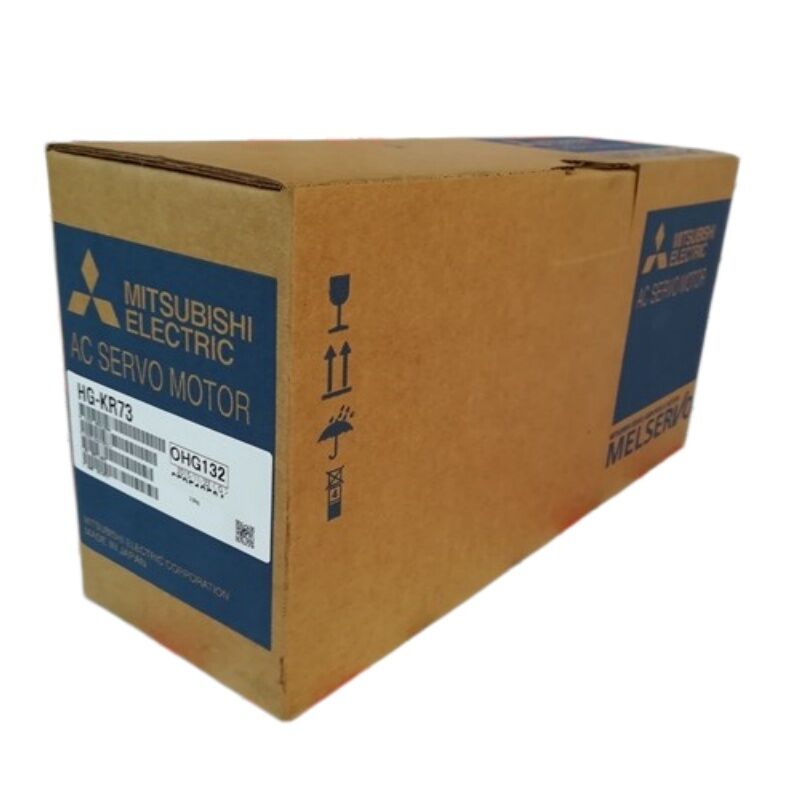

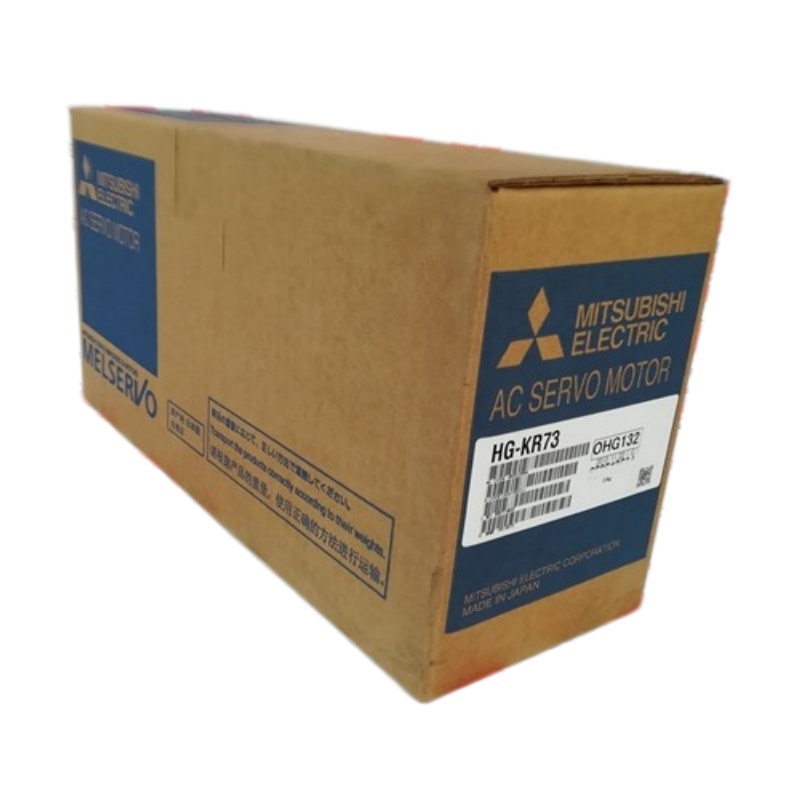

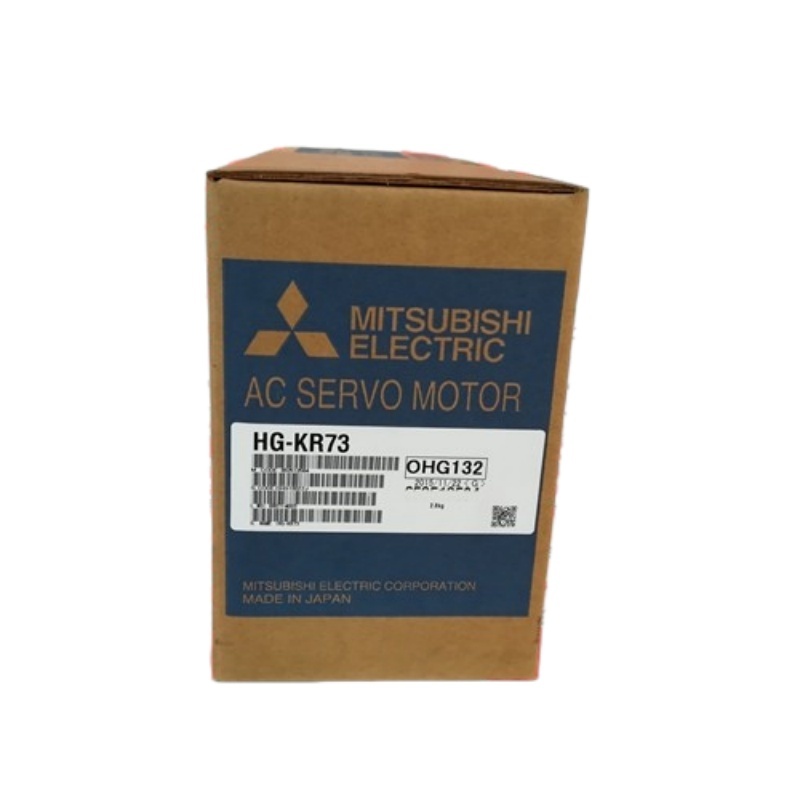

ONE NEW Mitsubishi Servo Motor HG-KR73 HGKR73

1 pcs
MOQ
ONE NEW Mitsubishi Servo Motor HG-KR73 HGKR73
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New Factory Seal(NFS)
Item No.: HGKR73
Origin: JAPAN
Highlight:

mitsubishi industrial servo motor

,

mitsubishi yaskawa ac servo motor
Basic Infomation
Place of Origin: JAPAN
Brand Name: MITSUBISHI
Certification: CE ROHS
Model Number: HG-KR73
Payment & Shipping Terms
Packaging Details: original packing
Delivery Time: 0-3 days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 100 pcs/day
Product Description

MITSUBISHI  NEW   HG-KR73J   NEW Mitsubishi Servo Motor

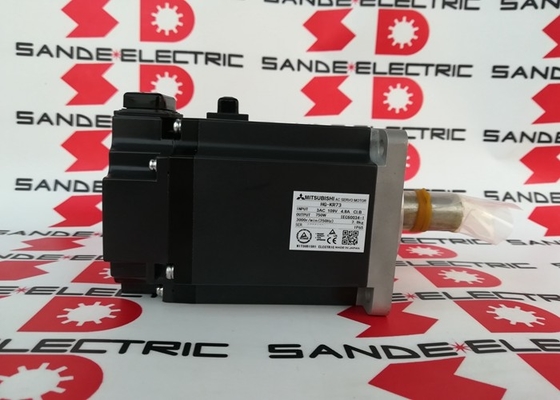

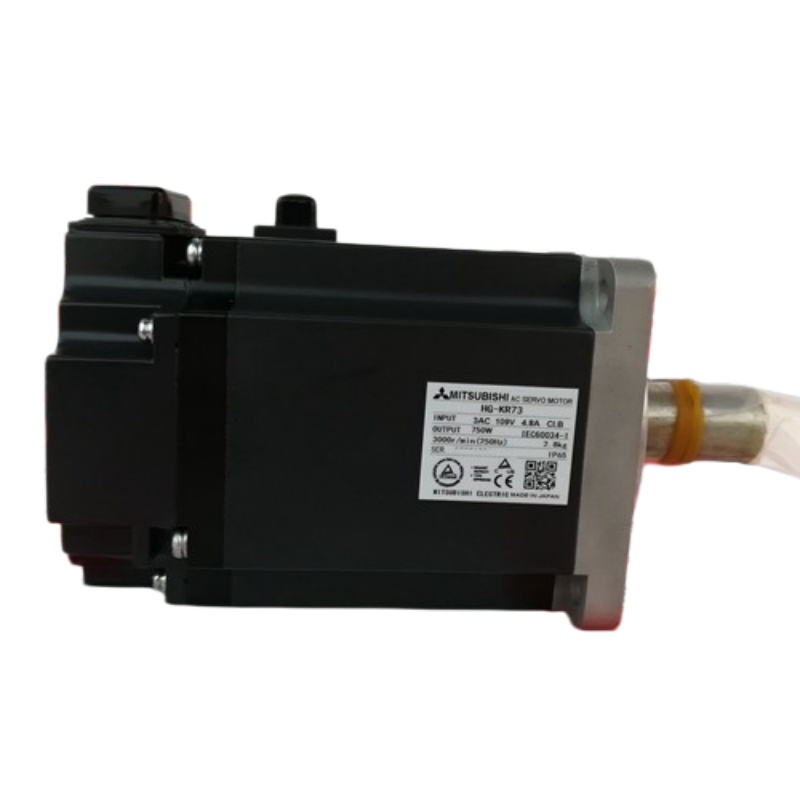

HGKR73 HG Series Servo Motor – 0.75 kW, 3000 RPM, Low Inertia, Small Capacity, Standard Straight Shaft.



Parameter Specification
Primary brand Mitsubishi Electric
Main function AC servo motor
Product series / family name MELSERVO J4 series
Sub-range name HG-KR series
Functions AC brushless rotary servo motor
Design straight shaft, built-in absolute feedback encoder (22-bit), low inertia / small power capacity, natural cooling
Supply voltage (AC) 200 Vac class
Rated current 4.8 A
Rated active power (kW) 0.75 kW / 750 W
Rotational speed 3000 rpm (nominal), 6000 rpm (maximum)
Torque 2.4 Nm nominal, 8.4 Nm maximum
Moment of inertia 0.000126 kg·m² (1.26 kg·cm²)
Connection type 4-pin rectangular connector
Mounting mode 80x80 mm flange mounting
Resolution 22-bit (equivalent to 4,194,304 ppr) feedback
Degree of protection IP65
Dimensions H97.1 mm x W80 mm x D152 mm
Net Height 97.1 mm
Net Width 80 mm
Net Depth 152 mm
Ambient air temperature for operation 0...+40 °C
Ambient air temperature for storage -15...+70 °C
Maximum radial load 392 N
Maximum axial load 147 N
Maximum current 17 A



PAYMENT INFO:

ESCROW / PAYPAL are only for the goods value 500$ or less.

Bank Transfer / Western Union are ok for any goods.



Handling charge ESCROW: 5-5.1%; Paypal: 3.9-4.4%

ONE NEW Mitsubishi Servo Motor HG-KR73 HGKR73 0

SHIPPING INFO:

*** Pls inform us, once you transfer payment by ny form, for us follow up in time.

*** Items are typically sent out 3-5 Working Days, after payment has been received.

Will ship worldwide (Please ask us first if you do not see an exact price for shipping for your country)

* FREE Shipping is not AVAILABLE for the buyers who are from some certain coutires DHL / Fedex are not avaiable for, Pls contact us for the detailed SHIPPING Cost.

Cross-border buyers are responsible for any CUSTOMS DUTY, TAX, etc. imposed by the buyer's home country.

************************************************************************************

PLEASE NOTIFY US WITHIN 10 DAYS, IF YOU HAVE NOT RECEIVED GOODS

&

PLEASE NOTIFY US AT THE SAME/ NEXT DAY, IF GOODS ARRIVE DAMAGED / NOT COMPLETE / NOT DESCRIBED

************************************************************************************

We DO COMBINE SHIPPING on multiple purchases!

Local Pickup Available



We Appreciate Your Business!!
