Fanuc Servo Motor A06B-0314-B004 Good Working Condition A06B0314B004

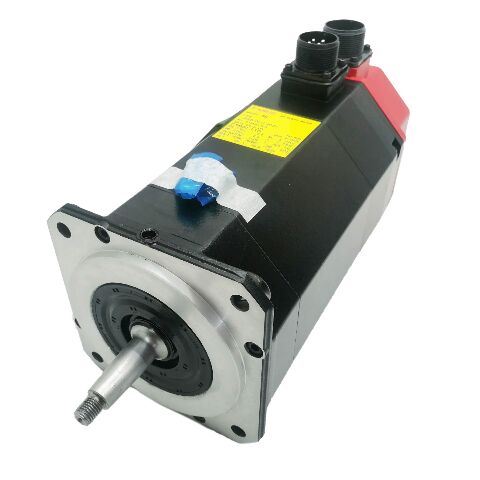

FANUC A06B-0314-B004 | S-Series Model 5S AC Servo Motor — 2000 rpm / Taper Shaft / 2000P Encoder / Discontinued

FANUC's Original S-Series — The Generation Before Alpha

The A06B-0314-B004 is a FANUC S-series AC servo motor — Model 5S — from the generation that preceded the Alpha series. FANUC's S-series was the first generation of AC servo motors designed for CNC machine tool axes, replacing the earlier DC servo motors in high-performance CNC applications. Many S-series installations remain in production service decades after original manufacture.

At 2000 rpm maximum speed and the electrical ratings of the 5S class, this motor drove primary feed axes on CNC lathes, machining centres, and grinding machines where the control and mechanical design called specifically for the S-series architecture. When a machine was built around the 5S motor, the entire axis design — servo amplifier, servo parameter settings, mechanical coupling — was matched to this motor's specific characteristics. Like-for-like replacement preserves that original axis configuration.

Key Specifications

Taper Shaft and 2000P Incremental Encoder

The taper shaft transmits torque through a drawbolt-clamped metal-to-metal interface. The mechanical interlock is positive and zero-slip. To remove the coupling hub, use a drawbolt extractor — thread the puller into the tapped hole at the shaft end and apply controlled axial force. Never strike the shaft. Impact loads travel directly into the encoder and motor bearings. Penetrating fluid at the taper joint plus steady extractor force is the correct approach for tight tapers.

The 2000P incremental encoder (A860-0315-T101) produces 2000 pulses per revolution for speed and position feedback. It is incremental — a reference-return cycle is required at every machine power-up to re-establish the axis position datum. This is standard operating behaviour for S-series machines and is not a fault.

Sourcing Legacy S-Series Motors

The S-series was discontinued by FANUC many years ago. Replacement stock comes entirely from the aftermarket — surplus from decommissioned machines and tested pull units. An S-series machine still in production is operating on assets beyond their originally planned service life. Having a tested spare 5S motor on hand is a practical maintenance measure — aftermarket availability narrows as the installed base ages.

FAQ

Q1: What servo amplifiers are compatible with the A06B-0314-B004?

The S-series motor requires period-compatible S-series servo amplifiers. Alpha, Beta, and Alpha i series amplifiers are not compatible. Confirm the installed amplifier type from the machine documentation before specifying a motor replacement.

Q2: How is the taper shaft coupling removed correctly?

Use a drawbolt extractor — thread the puller into the shaft-end tapped hole and apply steady increasing axial force. Do not hammer, strike, or pry the shaft. Impact transmits shock directly to the encoder and motor bearings and can cause damage that appears minor but reduces service life significantly. If the taper is tight, apply penetrating fluid at the joint face and allow it to wick in before applying extractor force.

Q3: The machine requires homing at every power-up. Is this an encoder fault?

No — the 2000P is an incremental encoder. Reference return at every power-up is standard behaviour. If homing fails to complete or produces errors, check the encoder cable for damage, verify the Z-pulse signal quality at the amplifier with an oscilloscope, and inspect the encoder body for coolant ingress or mechanical damage.

Q4: Can an Alpha series motor replace the S-series 5S on the same machine?

Not without significant modifications. The S-series servo amplifier uses a different communication and feedback interface than the Alpha series. Substituting an Alpha motor requires replacing the servo amplifier, changing the CNC's servo interface hardware, and re-commissioning the axis parameter set. For a machine that continues to use its original S-series amplifiers, a like-for-like 5S motor is the only practical direct replacement.

Q5: What checks should be performed on a used A06B-0314-B004?

Verify three-phase winding resistance balance and insulation resistance to earth with the encoder cable disconnected. Inspect the taper shaft surface for fretting, scoring, or impact marks from previous improper removal. Rotate the shaft by hand for bearing smoothness. Check the encoder connector (A860-0315-T101) for coolant contamination or pin damage. A bench test run-up with the correct S-series amplifier before production installation is the definitive verification.
