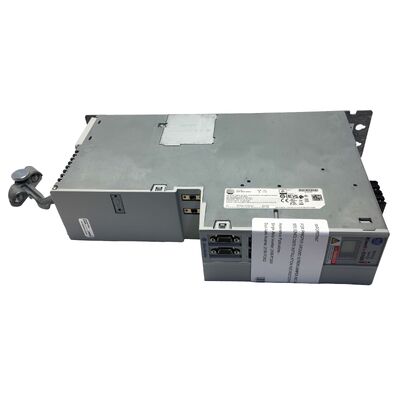

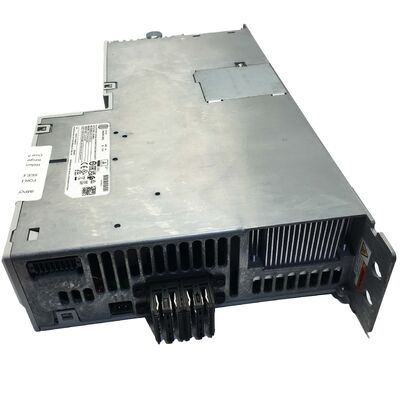

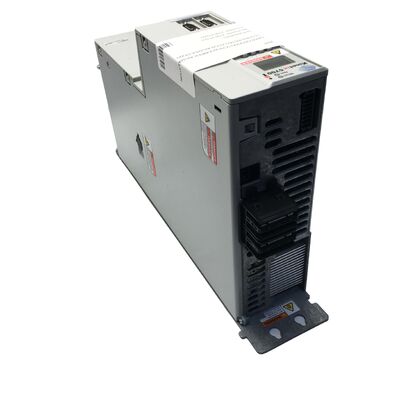

AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3

AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3
AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3
AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3 AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3 AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3 AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3 AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3

Large Image :  AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3

Product Details:
Place of Origin: MEXICO
Brand Name: AB
Model Number: 2198-D057-ERS3
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 2400-2600 / piece
Packaging Details: Original packaging
Delivery Time: 2 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100 pcs per day
Contact Now

AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3

Description
Protection Class: IP20 Storage Temp: -40 °C To 85 °C
Relative Humidity: 5 %–95 % Non-condensing Vibration Tolerance: 2 G @ 55–500 Hz
Shock Tolerance: 15 G, 11 Ms Half-sine Pulse Velocity Loop Bandwidth: 400 Hz
Internal Capacitance: 705 µF Warranty: 12 Months
Highlight:

Kinetix 5700 vfd inverter

,

Dual Axis vfd inverter

,

2198-D057-ERS3

AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3
Brand New In Box - The Allen-Bradley 2198-D057-ERS3 is a Kinetix Servo Drive that is part of the Kinetix 5700 Ethernet I/P servo system. This servo drive interfaces with Kinetix Servo motors to implement motion and position control, supporting integrated motion control over Ethernet I/P via embedded dual RJ45 Ethernet interface communication ports.
The 2198-D057-ERS3 has a module width of 85 mm with physical measurements of 9.92 x 3.35 x 17.0 inches (252 x 85 x 433 mm) and weighs 14.9 lbs (6.76 kg). It supports zero stacking installation and is designed to reduce wiring and installation costs.
This dual axis servo drive with dual Ethernet ports provides enhanced control capabilities while enabling communication with automation devices connected in either linear or Device Level Ring (DLR) topology. Designed to communicate with the Logix controller platform, it enables direct integration of servo parameters for monitoring and control, with connectivity to Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems.
Technical Specifications
Parameter Value
Type Servo Drive
Input Voltage 460 VAC
Voltage 460 V
Input Current 24.5 A
Amperage 23 A
Output Current 57.5 A
Power Rating 15.9 kW
Wattage 15.9 kW
Operating Temperature 0 - 50 °C
AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3 0
Ideal Applications
  • Multi-axis robotic arms
  • CNC machining centers
  • Automated assembly and packaging lines
  • Precision material handling systems
  • High-speed printing and labeling machinery
Key Features & Benefits
  • Dual Axis Capability: Controls two servo motors simultaneously, reducing cabinet footprint and wiring complexity
  • High Performance: Optimized for dynamic motion control, supporting high-speed acceleration and deceleration profiles
  • Advanced Safety Functions: Integrated Safe Torque Off (STO) and compliance with international safety standards
  • Flexible Communication: Supports EtherNet/IP for real-time, high-speed data exchange with controllers
  • Compact Design: Space-efficient for machine builders, simplifying installation in control cabinets
  • Energy Efficiency: Reduces power consumption with advanced regenerative capabilities
  • Scalable Control: Easily integrates with Kinetix 5700 family, expanding to multi-axis configurations
