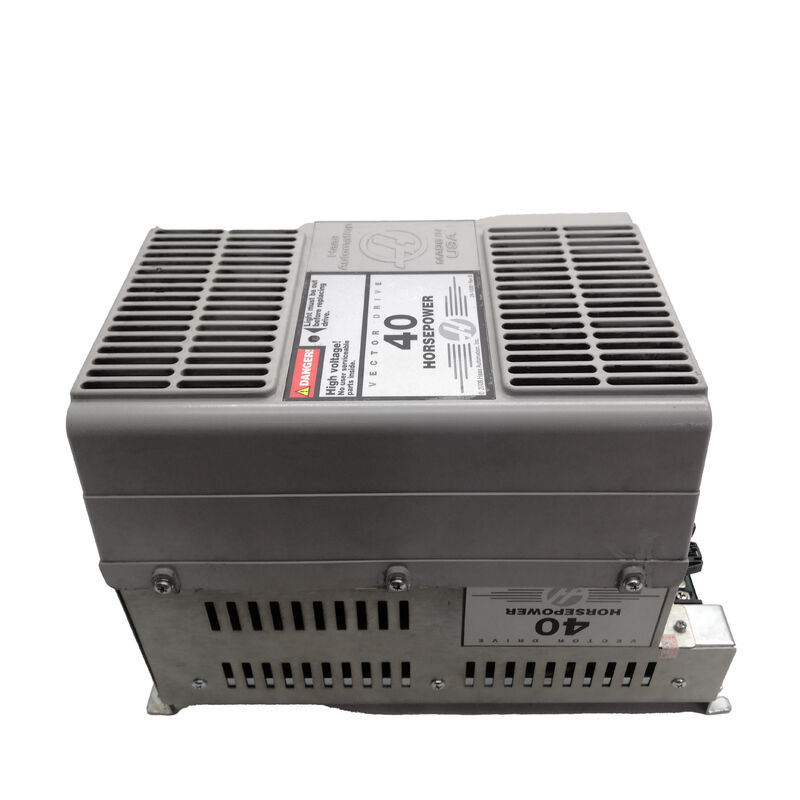

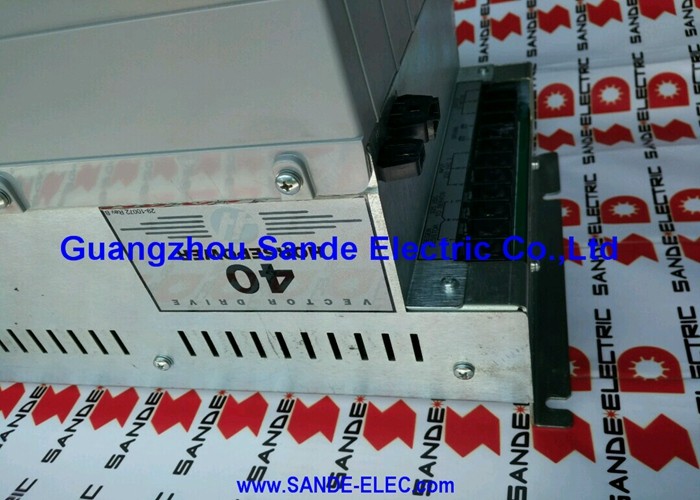

40HP Variable Frequency Inverter HAAS Vector Drive 29-10081

Haas Automation 29-10081 | 40 HP Vector Drive — 230V AC Input / 325V DC to Servos / Discontinued

40HP Vector Drive — The Power Heart of a Haas Machining Centre

The 29-10081 is Haas Automation's 40 HP vector drive — the power electronics module that takes 230V AC mains input and produces 325V DC to supply the servo amplifiers driving the axis motors and spindle. In a Haas CNC machining centre, the vector drive is the central power conversion stage. Every servo-driven axis and the spindle motor draws its operating power from the DC bus this drive produces.

Vector drive control (flux vector control) maintains precise control over the spindle motor's speed and torque without requiring a speed feedback device on the motor — the drive calculates the required current vector in real time from motor model equations. At 40 HP, the 29-10081 covers the spindle power class of Haas mid-range vertical machining centres where sustained heavy cutting at high spindle speeds demands reliable, controlled power delivery.

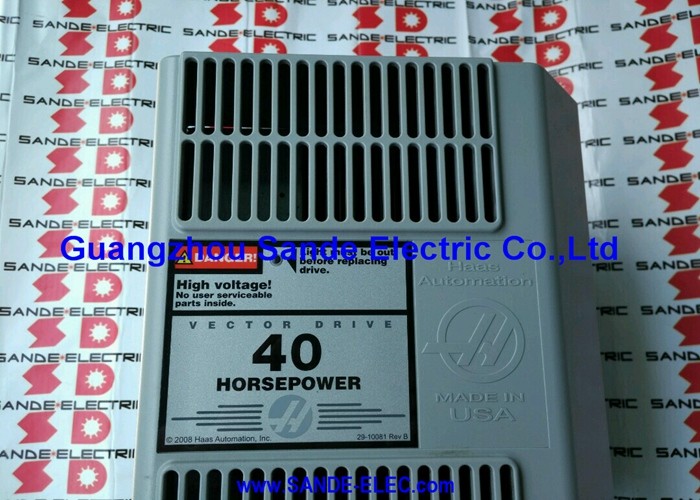

The Rev B designation identifies a hardware revision of the base 29-10081 design. Haas made revision-level changes to improve reliability or incorporate component updates. Both the base and Rev B versions serve the same machine installation; confirm which revision is installed from the drive's label when ordering.

Key Specifications

Failure Patterns and Repair Economics

Vector drives fail through two broad mechanisms. Power stage failures — damaged IGBTs, failed rectifier bridges, or failed DC bus capacitors — are component-level faults that trained repair centres diagnose and repair directly. Control board failures — failed gate driver ICs, damaged DSP control circuits, or power supply faults within the drive's control section — are also repairable but require more specialised tooling.

Because the 29-10081 is discontinued, repair is often more economically and logistically practical than sourcing a new unit. The Haas machine cannot operate without a functional vector drive — a failed 29-10081 stops the machine completely. Specialist Haas drive repair providers carry test fixtures configured for this specific drive and can verify the repaired unit under realistic load conditions before return.

When the drive fails, record all alarm codes displayed on the Haas control, the conditions at failure (load during cut, idle, at power-on), and the state of any indicator LEDs on the drive face before removing it. This information enables the repair centre to reproduce the fault and confirm it is cleared after repair.

FAQ

Q1: What does the 29-10081 vector drive actually power in a Haas machine?

The drive converts 230V AC mains to 325V DC bus voltage. This DC bus directly powers the servo amplifier modules that drive all axis motors (X, Y, Z, and additional axes) and the spindle motor. All machine motion — axis positioning and spindle rotation — depends on this drive being functional and producing the correct DC bus voltage.

Q2: The Haas machine shows a vector drive fault and will not move. Is the drive always the cause?

Not always. Vector drive faults can also be triggered by a failed motor, a damaged motor cable causing a short, a failed servo amplifier loading the DC bus, or a problem with the AC input supply. Before removing the drive, confirm the AC input voltage at the drive terminals and visually inspect all motor power cables for damage. If the fault appears only under load in a specific axis, that axis's motor or amplifier is the more likely cause.

Q3: Can the 29-10081 be repaired, or must it be replaced?

Repair is the standard approach for this discontinued unit. Vector drive repair specialists with Haas-specific test equipment can diagnose and repair IGBT failures, capacitor degradation, rectifier faults, and control board faults at component level. A repaired unit from a qualified repair centre with functional load testing is a reliable alternative to sourcing a replacement.

Q4: What is the difference between the base 29-10081 and the Rev B version?

The Rev B designation indicates a hardware revision Haas made during the production run of the 29-10081. The revision typically involves component specification updates or circuit improvements while maintaining the same electrical ratings and physical interface. Both versions serve the same machine installation. Confirm the installed unit's revision from its label when ordering a replacement or requesting repair.
