Name: Three Phase AC 380V–480V Mitsubishi Power Supply Unit MDS-DH2-CV-450
Brand: Guangzhou Sande Electric Co.,Ltd.
SKU: MDS-DH2-CV-450
Price: 4243 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Item No: MDS-DH2-CV-450

Input Supply Frequency: 50/60 Hz

Output Type: DC Bus Supply For Servo & Spindle Drives

Cooling Method: Forced Wind Cooling

Input Voltage: Three‑phase AC 380–480 V

Warranty: One Year

Lead Time: In Stock

Condition: New Original

Highlight:

Three Phase Mitsubishi Power Supply

380V Mitsubishi Power Supply

MDS-DH2-CV-450

Basic Infomation

Place of Origin: Japan

Brand Name: Mitsubishi

Model Number: MDS-DH2-CV-450

Payment & Shipping Terms

Packaging Details: Original packaging

Delivery Time: 2 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 100 pcs per day

Gallery

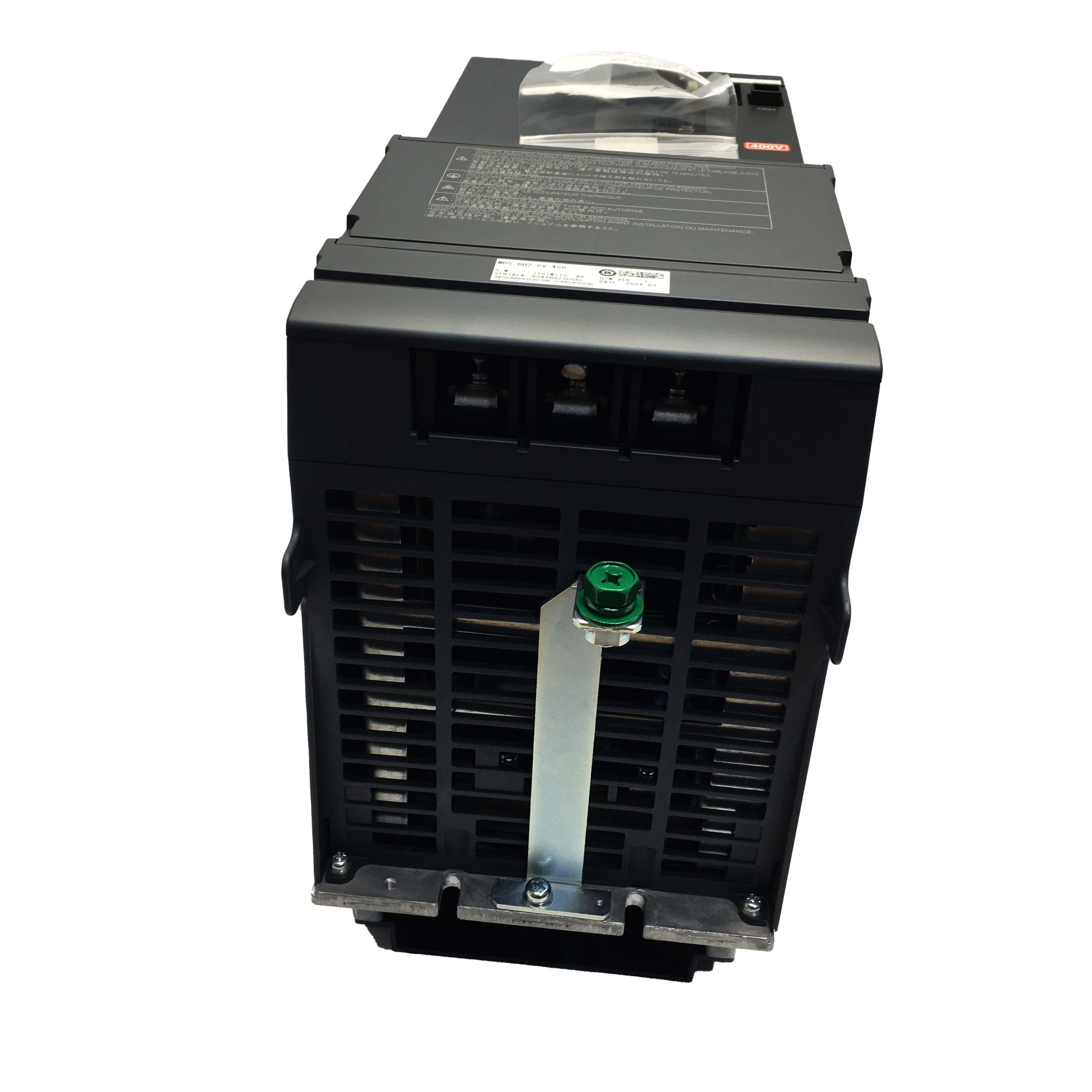

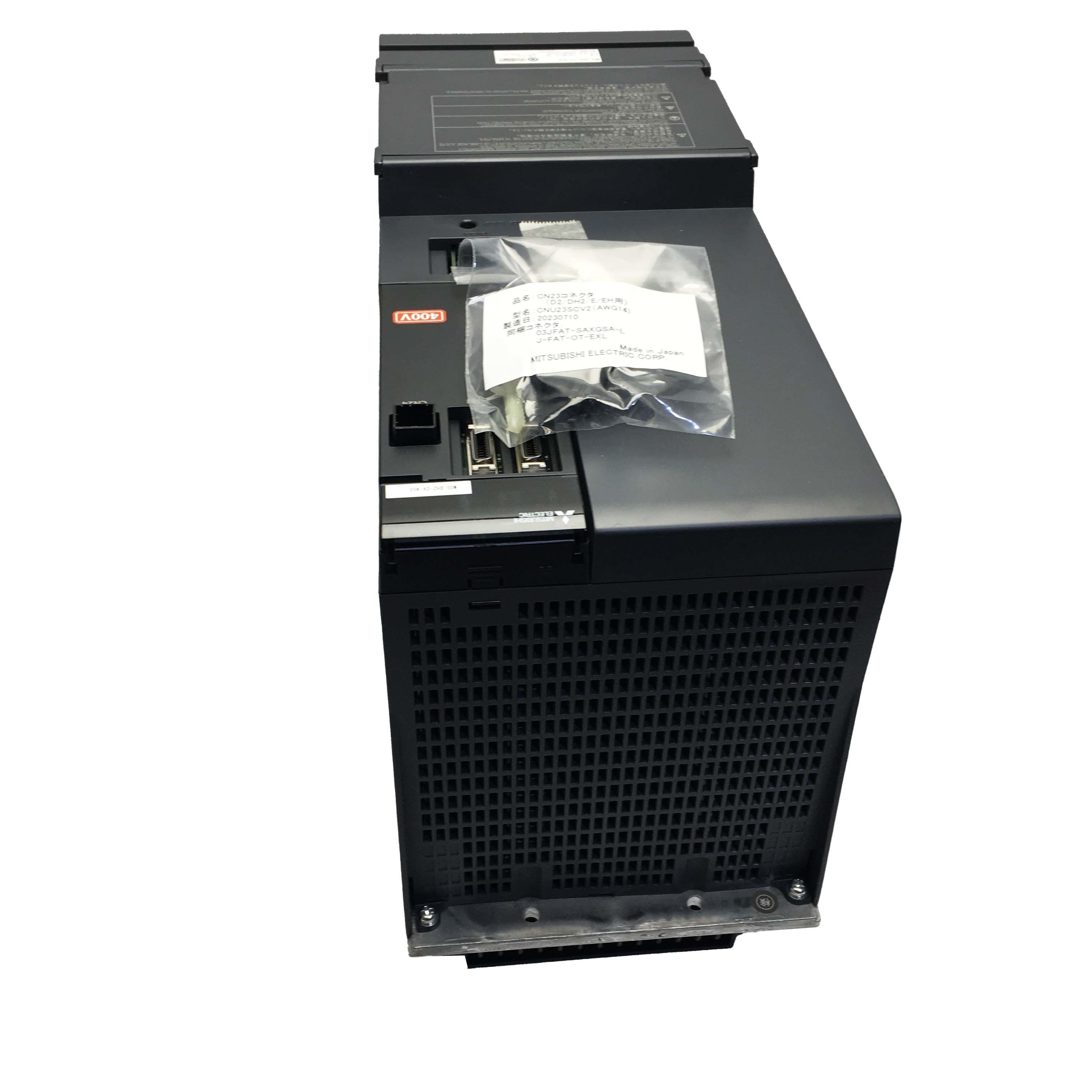

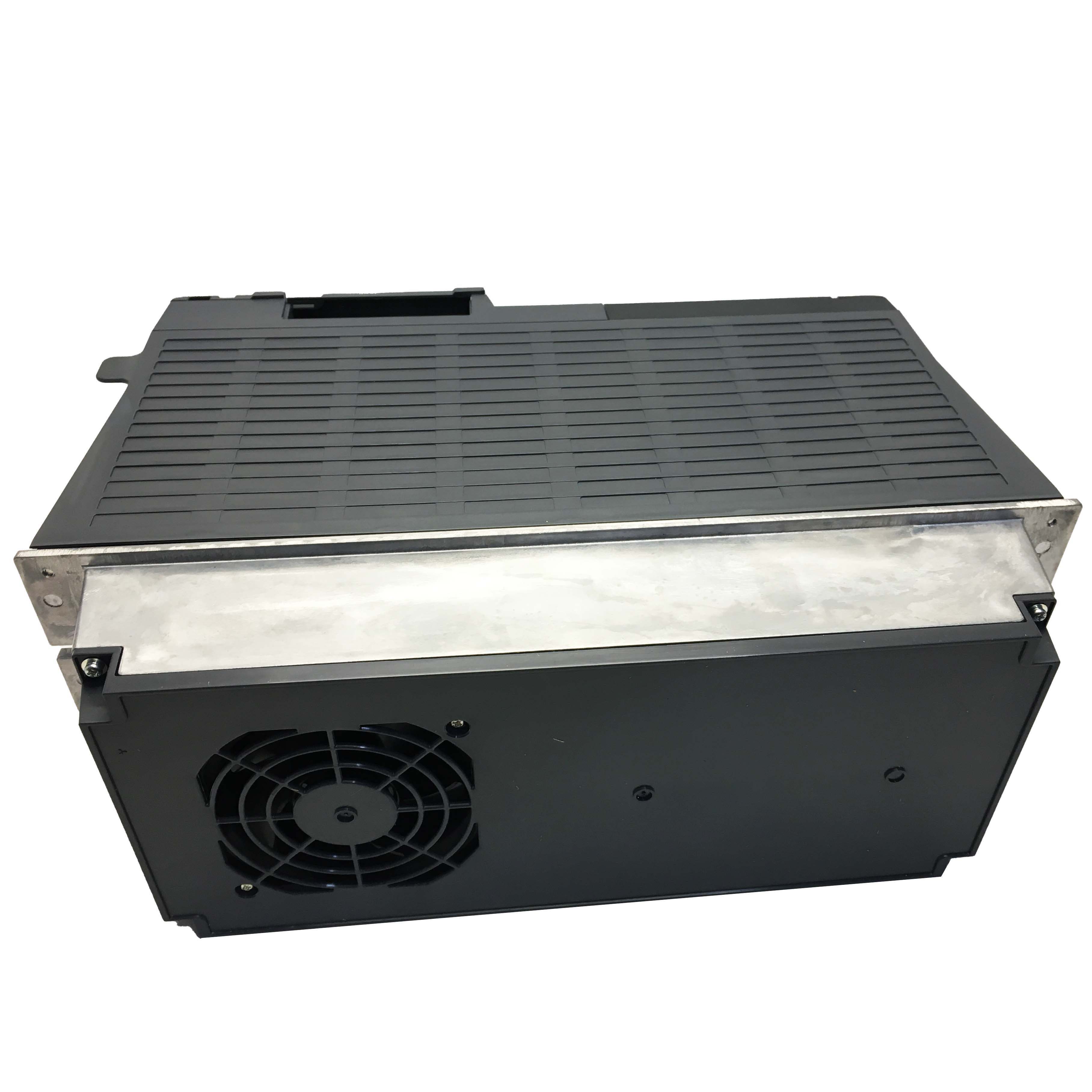

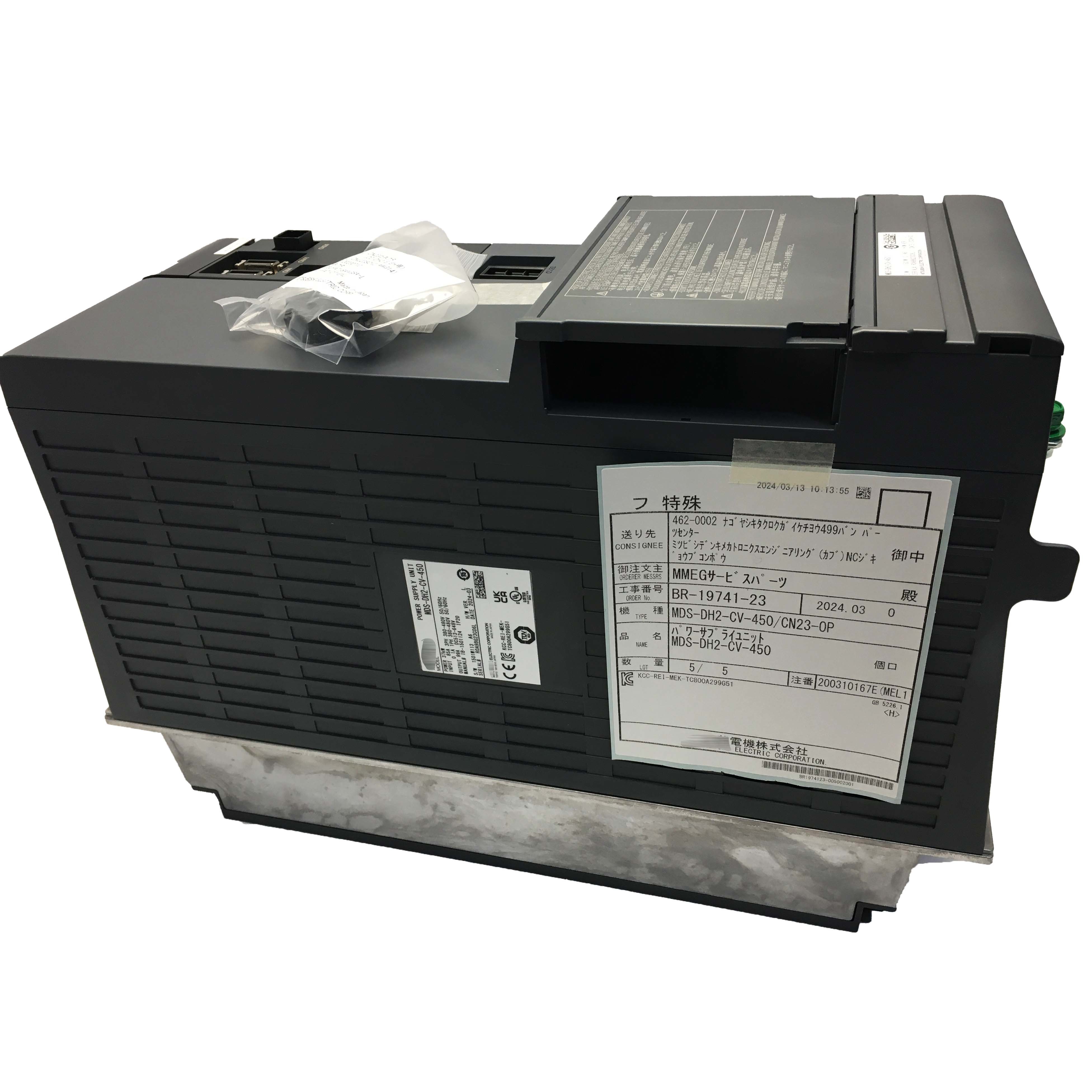

Three Phase AC 380V–480V Mitsubishi Power Supply Unit MDS-DH2-CV-450

Product Description

MDS-DH2-CV-450 | Mitsubishi Electric Power Supply Unit

New Original · Servo Drive System Power Module

The Mitsubishi MDS-DH2-CV-450 is a high-performance AC/DC converter from the MDS Servo Drives series, designed for demanding industrial automation systems. It delivers up to 37 kW active power with a rated current of 99A, supporting 380–480VAC input (3-phase or DC) and an adjustable 513–648VDC output. With IP20 protection, stable operation from 0–55°C, and reliable power handling, it is an ideal solution for CNC machines, servo drive systems, and high-power motion control applications.

1. Technical Snapshot

Manufacturer: Mitsubishi Electric
Part Number: MDS-DH2-CV-450
Category: Servo System Power Supply Unit
Power Class: 450
System Series: MDS-DH2
Function: Centralized DC power supply for servo amplifiers
Condition: Brand New & Factory Sealed
Authenticity: 100% Original Mitsubishi
warranty:One year

2.Specifications

Parameter	Detail
Model	MDS-DH2-CV-450
Product Series	MDS-DH2 Series (Common Power Supply Unit / Power Supply Module)
Rated Output Capacity	45 kW (Kilowatts)
Input Voltage	Typically 3-Phase AC 200-240V or 380-480V (depending on specific model variant and region)
Output Voltage	Stable DC Bus Voltage (e.g., DC 280-310V for 200V input, or DC 550-620V for 400V input)
Compatible Drive Series	Mitsubishi MDS-DH2 series servo amplifiers and spindle amplifiers
Functions	AC-DC power conversion, DC bus voltage stabilization, advanced regenerative energy management
Cooling Method	Forced-air cooling (integrated fan)
Operating Temperature	0 to 55°C (typical for industrial electronics)
Protection Functions	Comprehensive protection: Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit protection
Installation	Typically cabinet-mounted, often designed for modular rack-type or panel-mounted configurations
Key Role	Centralized, high-capacity power supply for multiple high-performance servo and spindle axes

Note: The above specifications are based on general information for Mitsubishi MDS-DH2 series power supply units of this class. Actual performance and detailed specifications may vary slightly depending on the specific model variant, system configuration, and connected loads. Always refer to Mitsubishi’s official documentation for precise information.

4. Functional Description

The MDS-DH2-CV-450 functions as the primary power source within Mitsubishi MDS-DH2 servo drive architectures.
It converts incoming AC power into a stable DC bus, supplying consistent energy to connected servo amplifiers and ensuring smooth, accurate motion control across multi-axis systems.

This unit is engineered to support high-load, continuous-operation environments, where voltage stability and system protection are critical.

5. Application Scenarios

CNC lathes & machining centers
Automated assembly lines
Industrial robots and positioning systems
Factory automation retrofits using Mitsubishi servo platforms
